Diecast Aircraft Information  Diecast Aircraft Information MetalWings Diecast Aircraft Reference by Dauntless Aviation
The F-4E variant was an improved version of the C/D with an elongated nose and compact
radar. These two things made it possible to install a 20mm M61A1 6 barrel 640 round Vulcan
gun pod in the nose. The F-4E was the most produced variant with 1387 aircraft being made
over its 12 year production period. The “E” also equipped more air forces than any other variant
of the Phantom II.


Six F-4Es from the 3rd TFS/ 3rd TFW “Peugeots” based at Clark AFB, Philippines staged at
Hickman AFB on their way to Incirlik AB, Turkey but two had to stay at Spangdahlem due to
mechanical problems. On February 22, 1991 the unit carried out it first mission led by F-4E
73-1199 marked as the 13th AF flagship. The mission involved AAA suppression for F-16s flying
against Al Mosul. With their mission complete the F-Es departed Incirlik on March 19, 1991 and
went directly to AMARC. In 2017 73-1199 was sent to be scrapped.


Specifications McDonnell Douglas F-4E Phantom II

Engines – (2) General Electric J79-GE-17 turbojets
Thrust – 11,870 lb. st dry, 17,900 lb. st with afterburners

Fuel
Maximum internal fuel - fuselage tanks 1,364 US gallons (up to block 40) and 1,225 US gallons
(from block 41 on).
Additional - 630 gallons of fuel in internal wing tanks.
External fuel load - 600 US gallons centerline tank
Additional - 370 US gallons tanks under each wing attached to the outer pylon
Total fuel load - 3334 US gallons (up to block 40) or 3195 US gallons (from block 41 on)

Performance
Maximum speed – 1,430 mph at 36,000 ft (Mach 2.21)
914 mph at sea level (Mach 1.19)
Cruising speed – 585 mph
Landing speed – 158 mph
Initial climb rate – 61,400 fpm
Service ceiling – 62,250 ft
Combat ceiling – 59,600 ft
Combat range - 595 miles
Maximum range - 1885 miles with maximum external fuel


Weights
Empty - 29,535 lbs
Gross - 40,562 lbs
Combat - 38,019 lbs
Take off - 61,651 lbs

Dimensions
Wingspan - 38 ft 5 in
Wing area - 530 sq ft
Length - 63 ft 0 in
Height - 16 ft 6 in


Armament
(1) 20-mm M61A1 cannon with 639 rounds in an under-nose gondola
(4) AIM-7 Sparrow semi-active radar homing air-to-air missiles in semi-recessed slots in the
fuselage belly.
(2) to (4) AIM-9 Sidewinder infra-red homing air-to-air missiles carried under the wings on the
inboard pylons.
Total offensive load of up to 16,000 pounds could be carried on the centerline and four under-
wing hard-points.

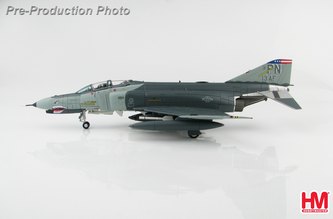

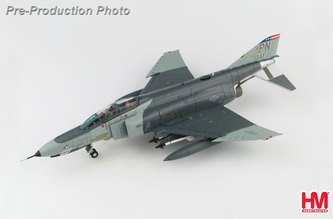

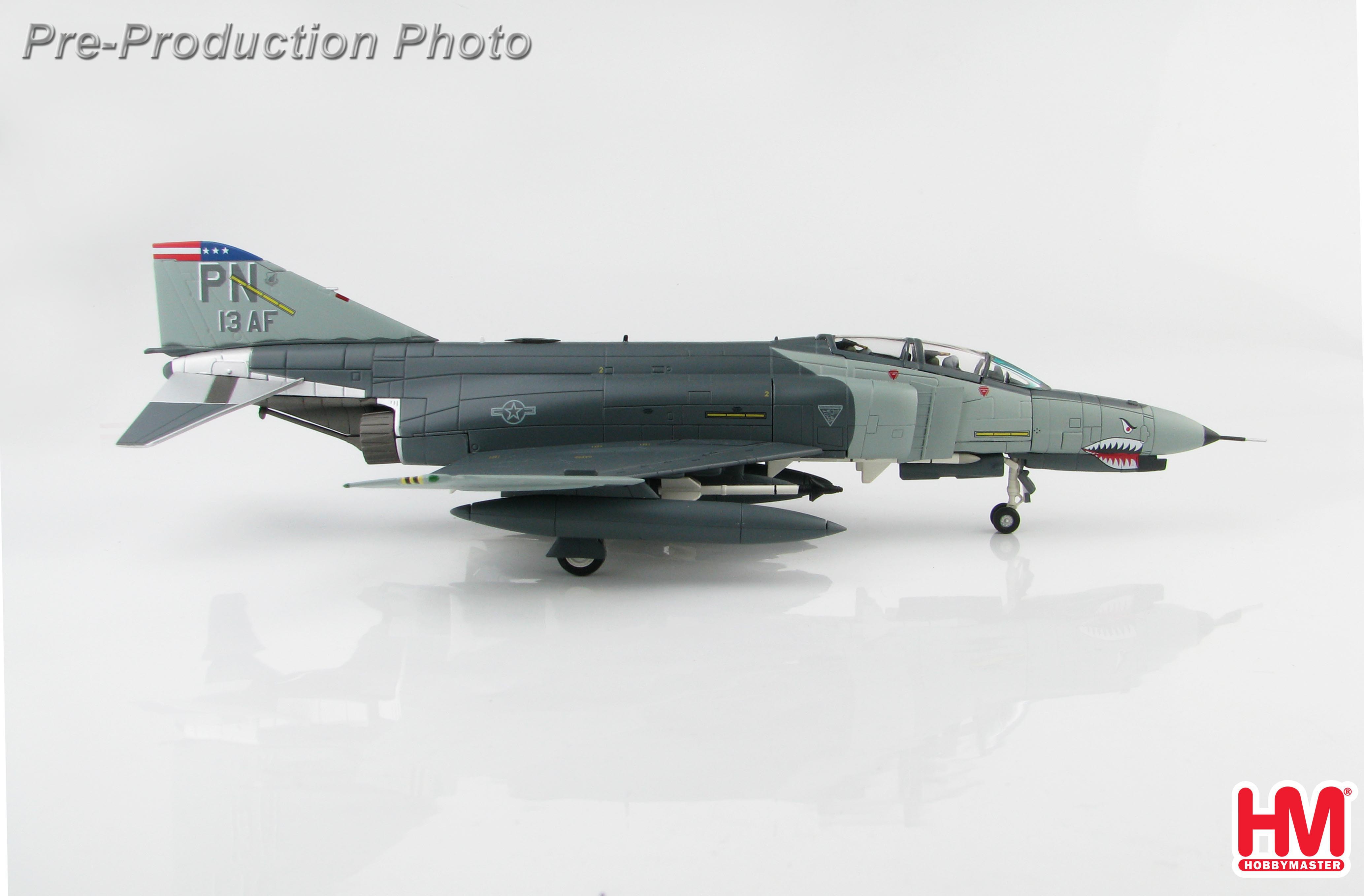

Hobby Master 1/72 Air Power Series
HA19009
McDonnell Douglas F-4E  73-1199
"Desert Storm"
13th AF, Incirlik AB, Turkey, 1991
True 1/72 scale

Professionally painted

Great attention to detail

All markings are Tampoed (pad applied)

Option to display the model on a stand that is provided

Model can be shown with the landing gear in the down or up positions

Canopies can be displayed open or closed

Crew figures

Extremely heavy metal with a minimum of plastic

Highly collectable
