The first Bf-109G “Gustav” entered service in March 1942. New features were a pressurized
cockpit with three larger guns mounted on the nose and none on the wings but could be field
mounted. The Bf-109G could overheat causing oil leaks; starting a fire forcing the pilot to bail out.
The Gustav was produced in many variants including long-range fighters, recon fighters and
bomber destroyers. The Bf-109G-6 lacked a pressurized cockpit but was the most numerous
Bf-109 produced and the first to carry 13mm machine guns; equivalent to the American 50 caliber
Browning.


Hermann Graf was a WWII German Ace with 212 victories in 830 missions and the first pilot to
score 200 victories. In mid 1943 Hermann Goring selected Graf to form a special high-altitude
squadron to intercept Allied aircraft. The new Jagdgruppe 50 “Karaya Quartet” was equipped
with modified high-altitude Bf-109G-6/R2 armed with two 210mm Wgr21 unguided rockets, a
30mm canon, two 13mm machine guns and an engine injection system creating 1,800 bhp. Green
1 W.Nr 15919 is one of several Bf-109s Graf flew and it wore the red ‘tulip’ nose and white tail
with ‘kill’ markings and his Knight’s Cross award.


Messerschmitt Bf-109G-6 specifications

Production timeline – February 1943 – October 1943

Number produced – 5,000+

Dimensions
Length – 9.04m   (29ft   (8in)
Wingspan – 9.92m   (32ft 6.5in)
Height – 2.5m   (8ft 2.25in)

Weight
Empty – 2,700kg   (5,900lb)
Operational – 3,400kg   (7,500lb)

Performance
Powerplant – Daimler-Benz DB605A-1, 12 cylinder inverted vee, liquid cooled, 1,475hp
Maximum speed – 640km/h   (398mph)
Range – 850km   (528miles)
Service ceiling – 12,000m   (39,370ft)

Armament
2 X 13mm  (.51in) synchronized MG 131 machine guns with 300 rounds each
1 X 20mm   (.78in) MG 151/20 cannon as centerline Motorkanone firing through propeller hub
with 200 rounds
Or
1 X 30mm   (1.18in) MK 108 cannon as centerline Motorkanone with 65 round per gun (G-6/U4
variant)
2 X 20mm MG 151/20 under-wing cannon pods with 135 round per gun (Rustsatz V option)
Rockets - 2 X 21 cm (8 in) Wfr. Gr. 21 rockets (G-6 with BR21)
Bombs
1 X 250 kg   (551 lb) bomb
Or
4 X 50 kg   (110 lb) bombs
Or
1 X 300 litre   (79 US gal) drop tank

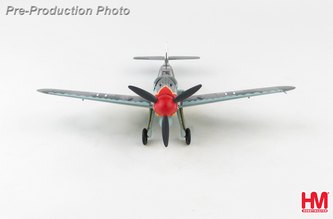

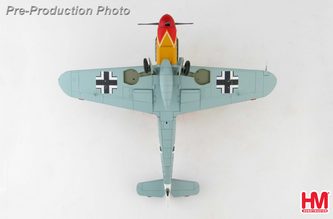

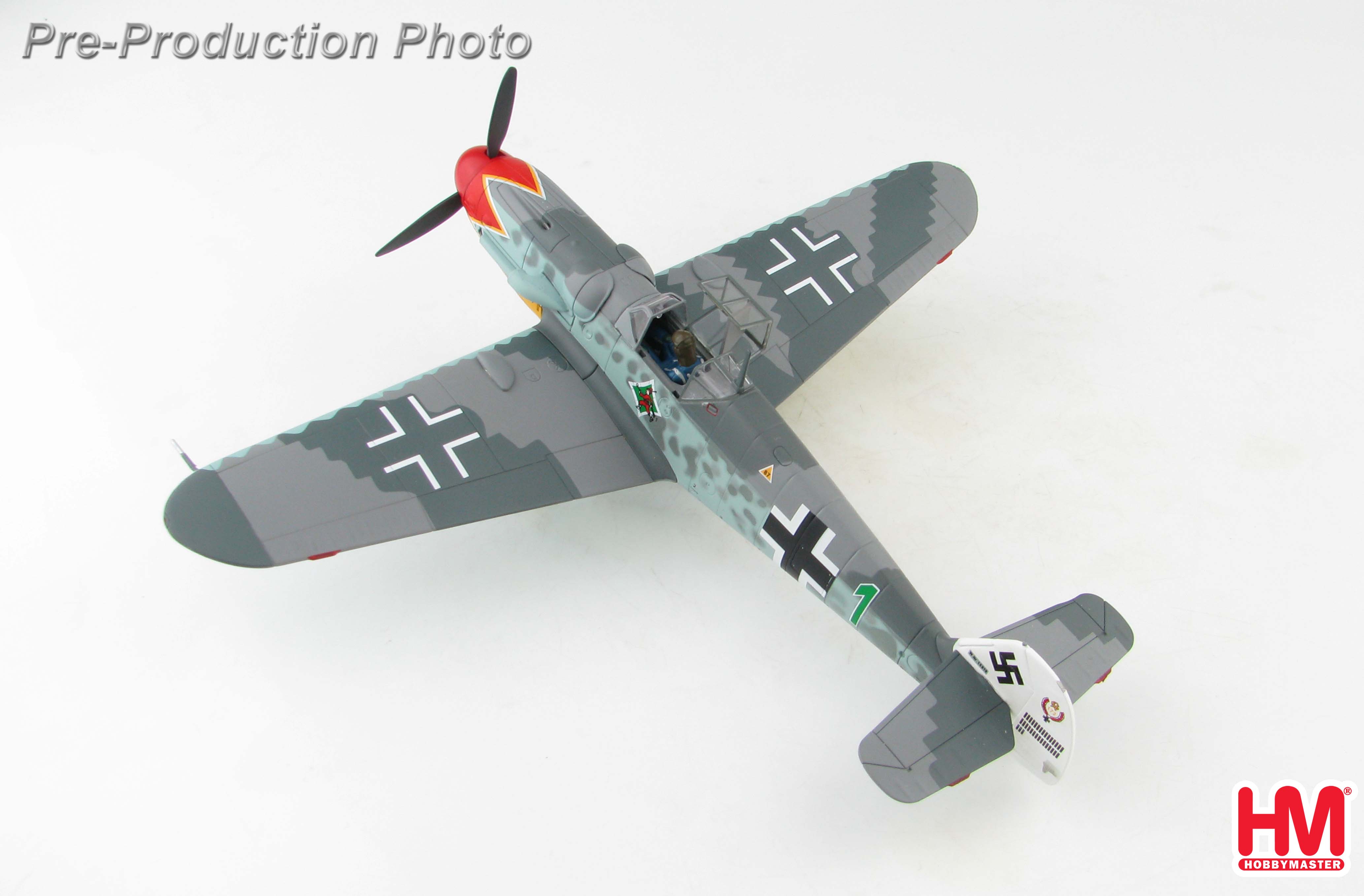

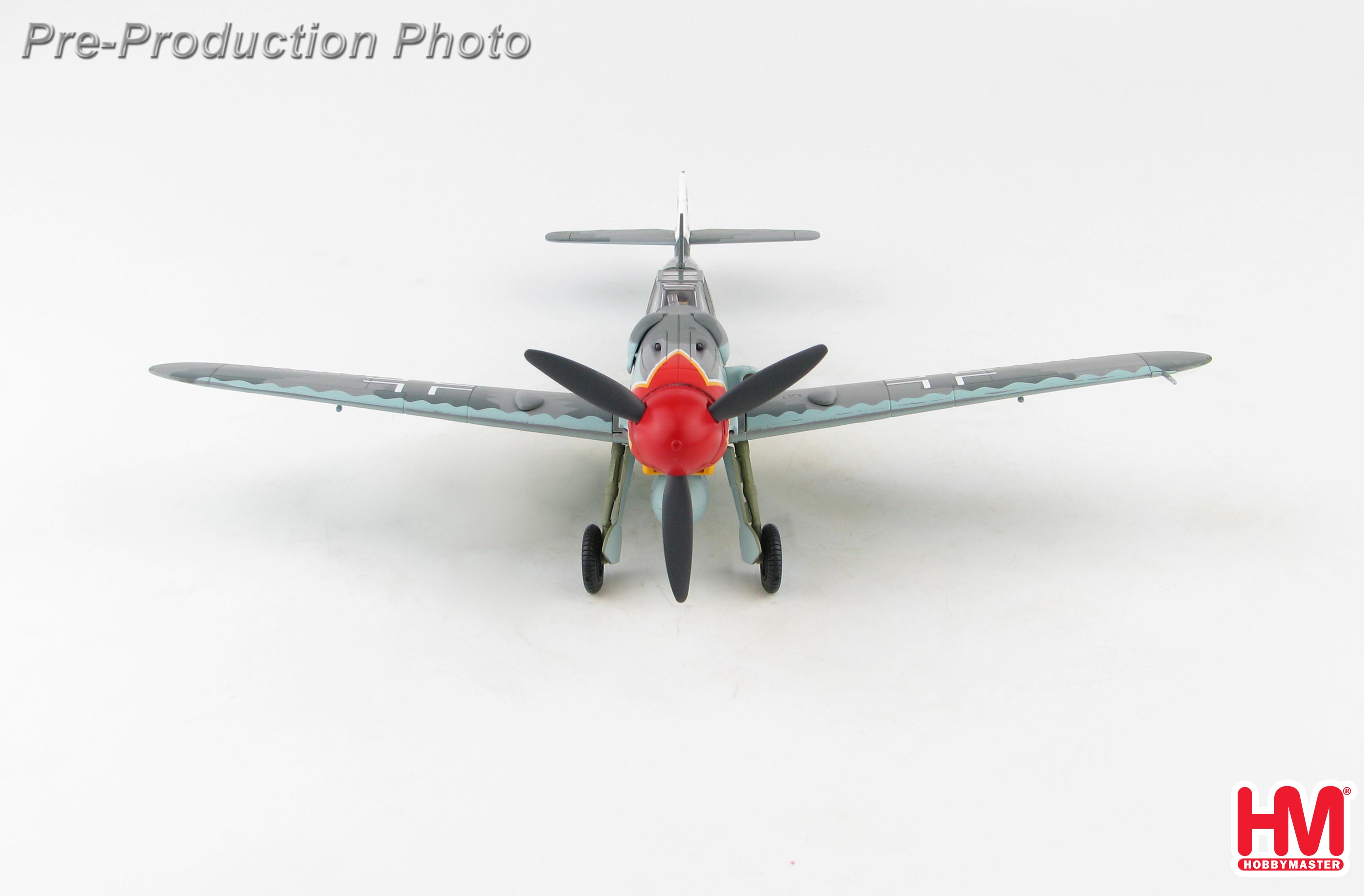

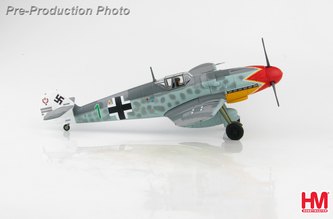

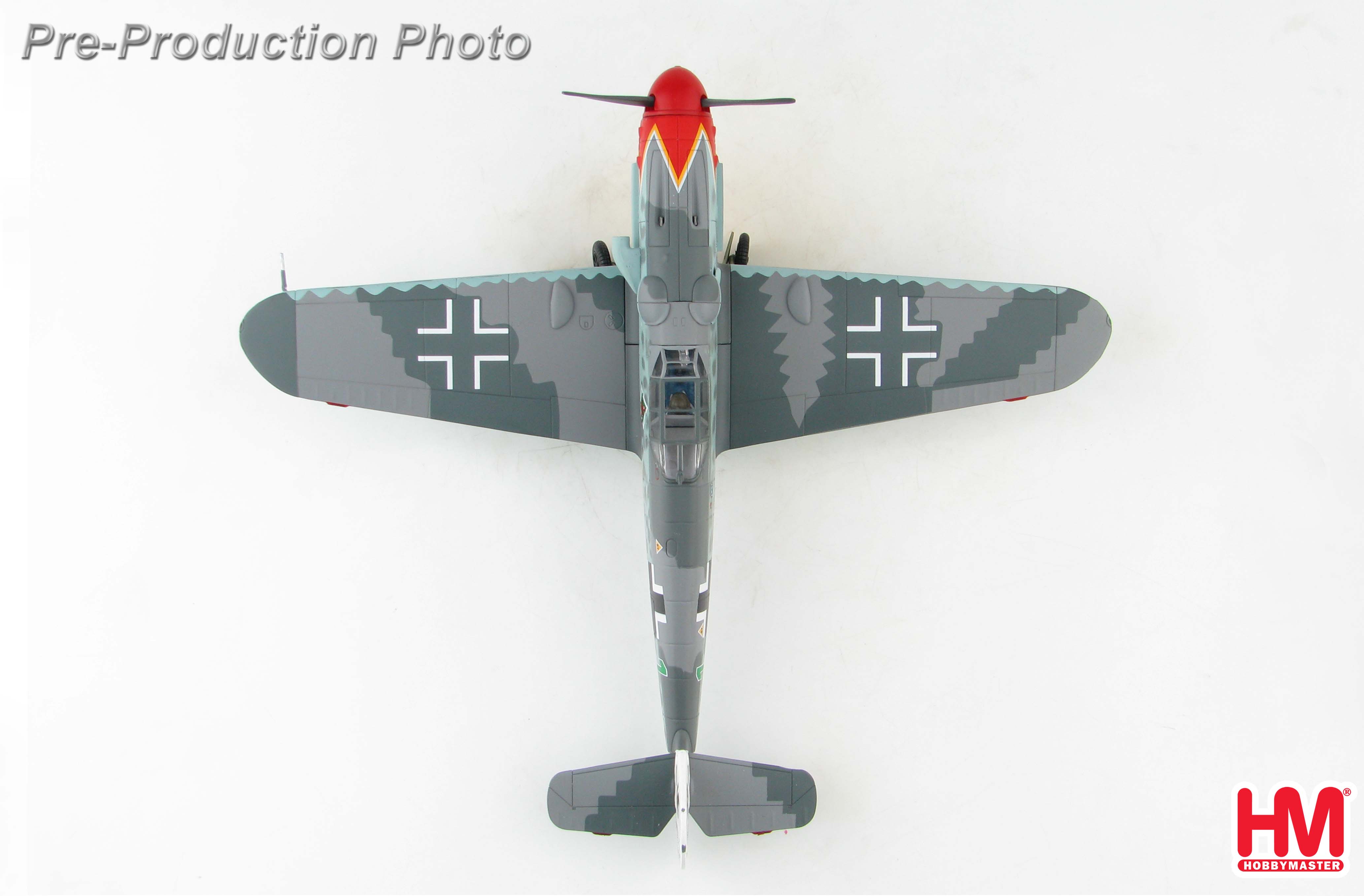

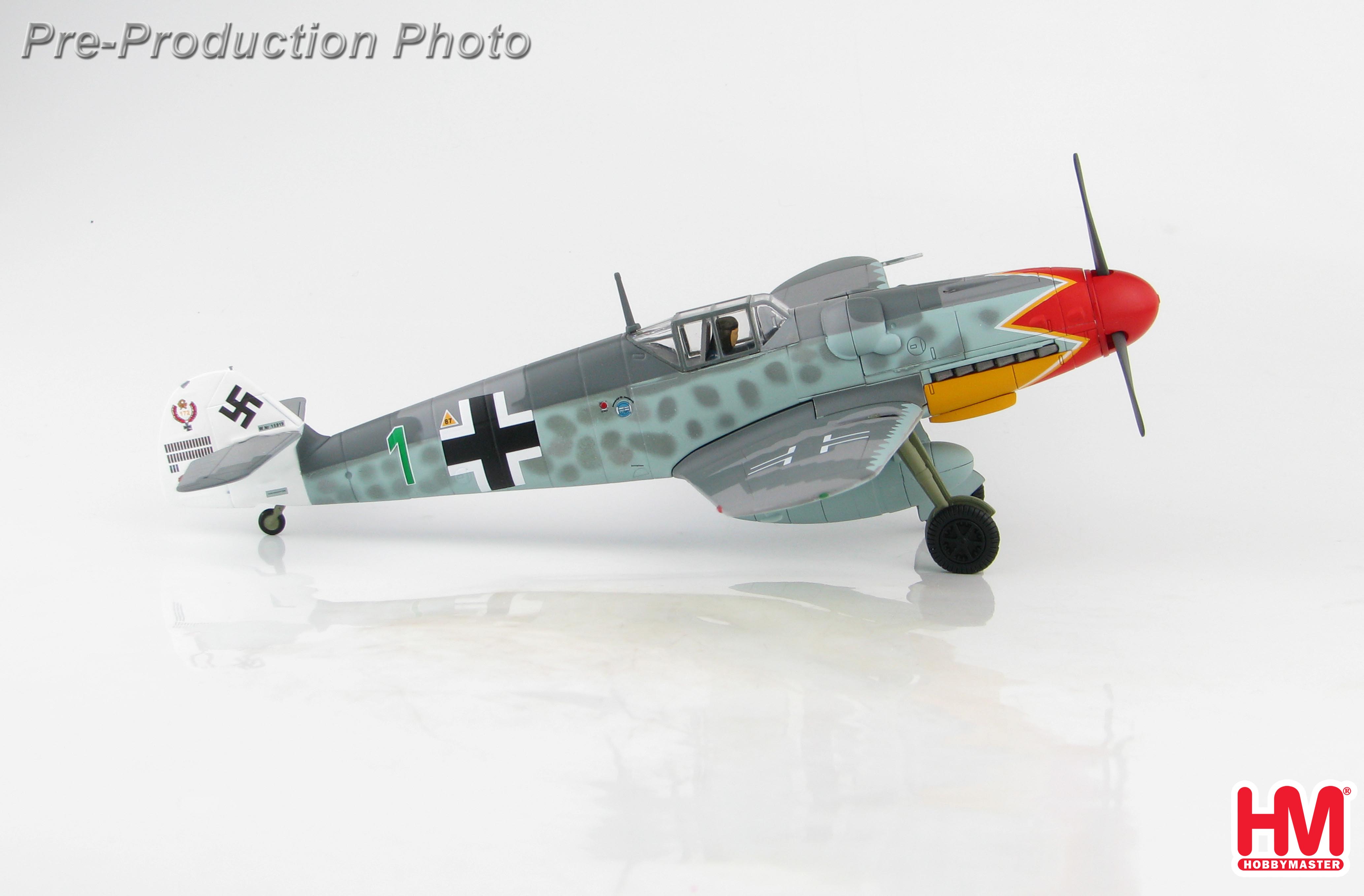

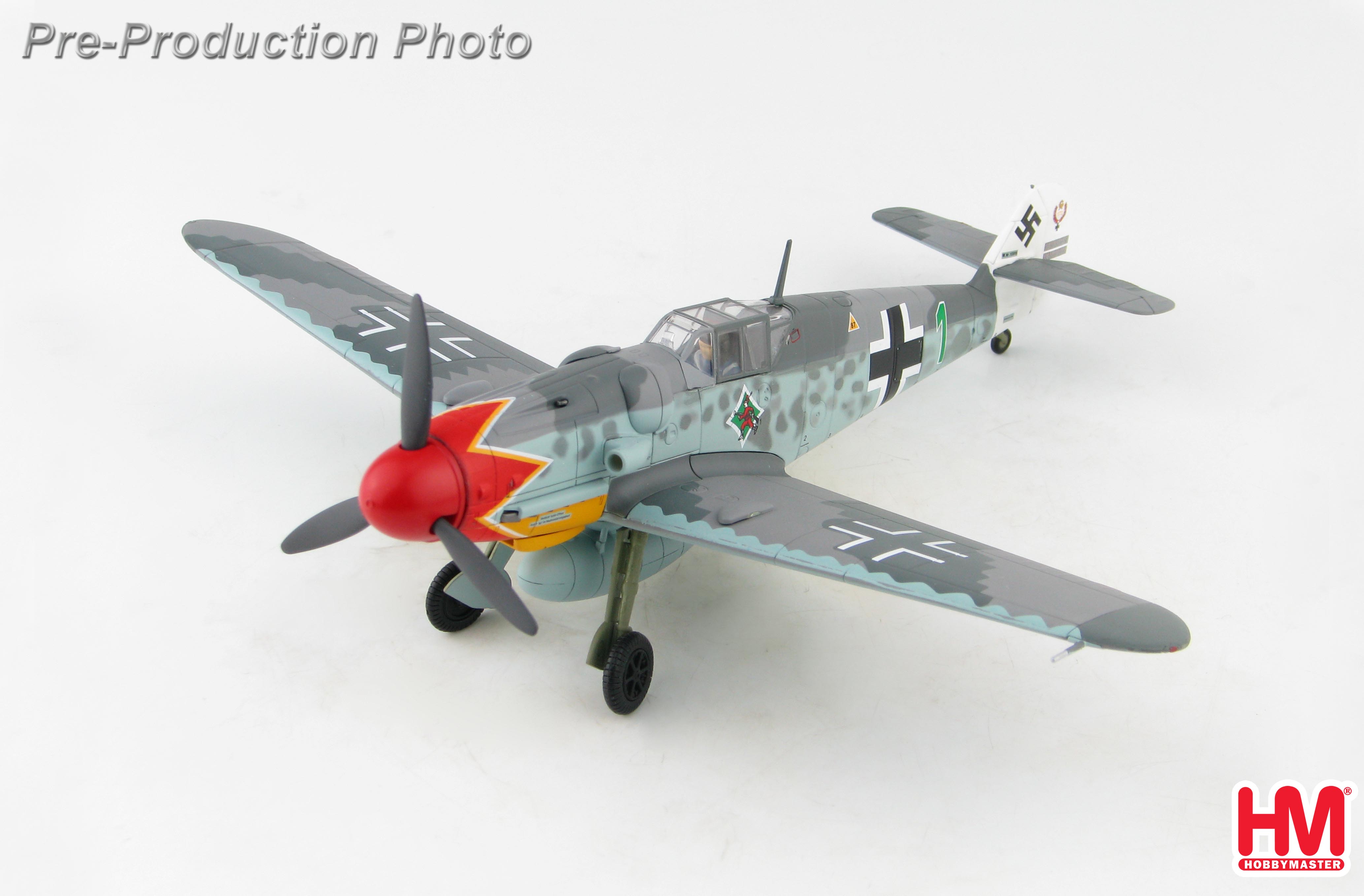

1/48 scale pre-finished.
Die-cast metal with a minimum of plastic.
All markings pad applied for superb results.
Canopy slides open.
Comes with a pilot that can be removed.
Comes with display stand.
Landing gear is fully retractable and can be displayed up or down.
Propeller is metal.
Extremely sought after by collectors.

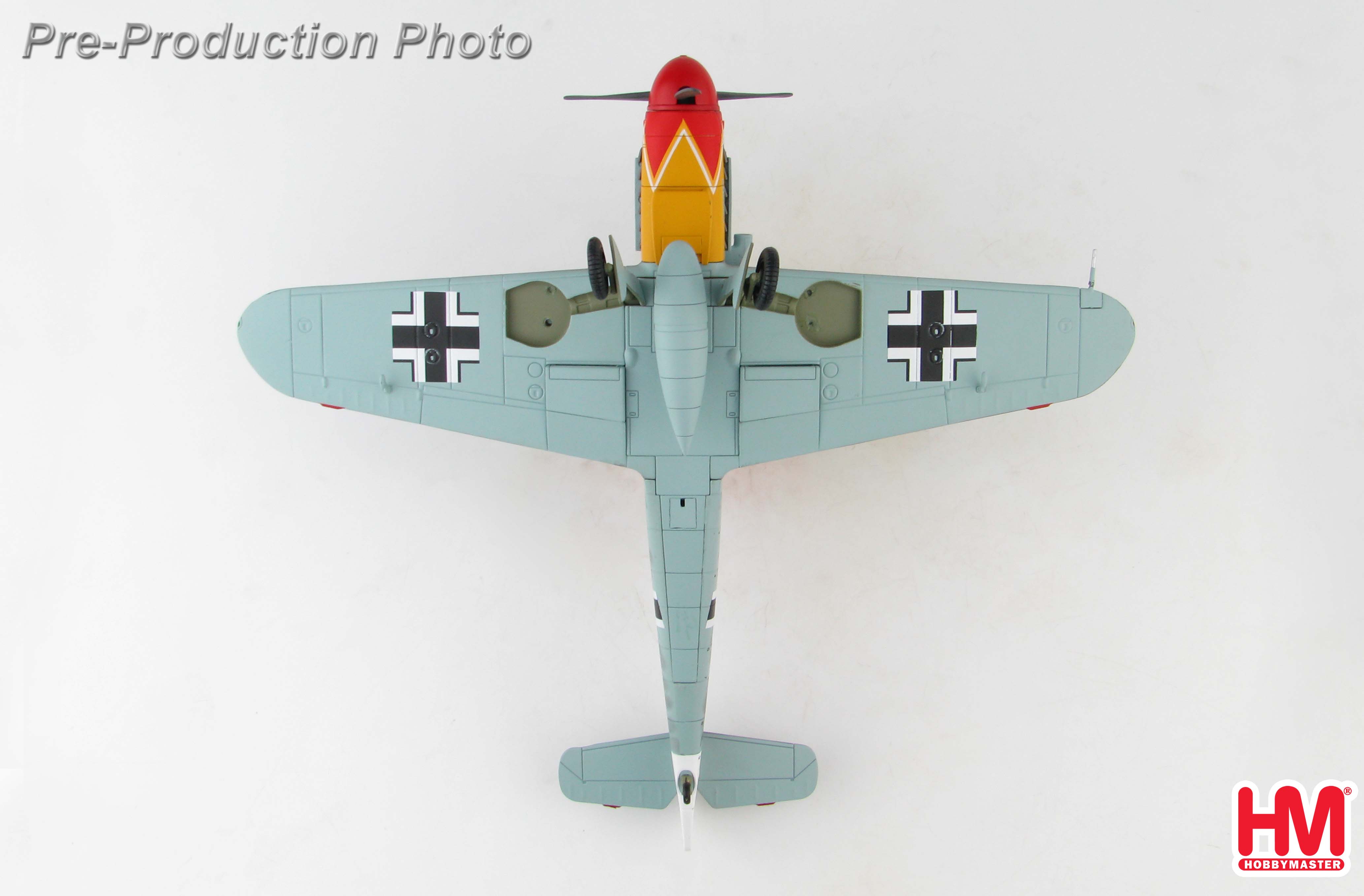

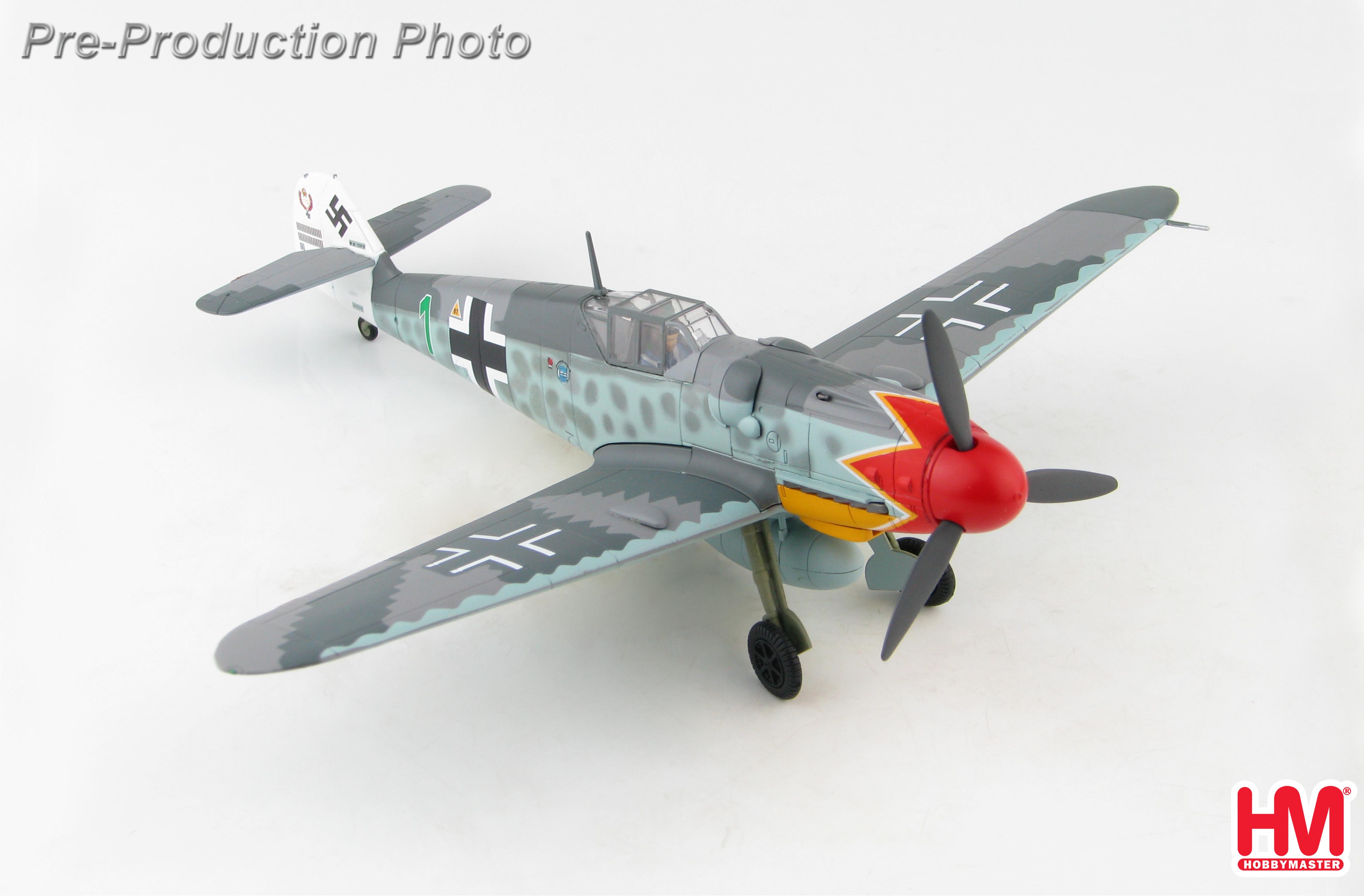

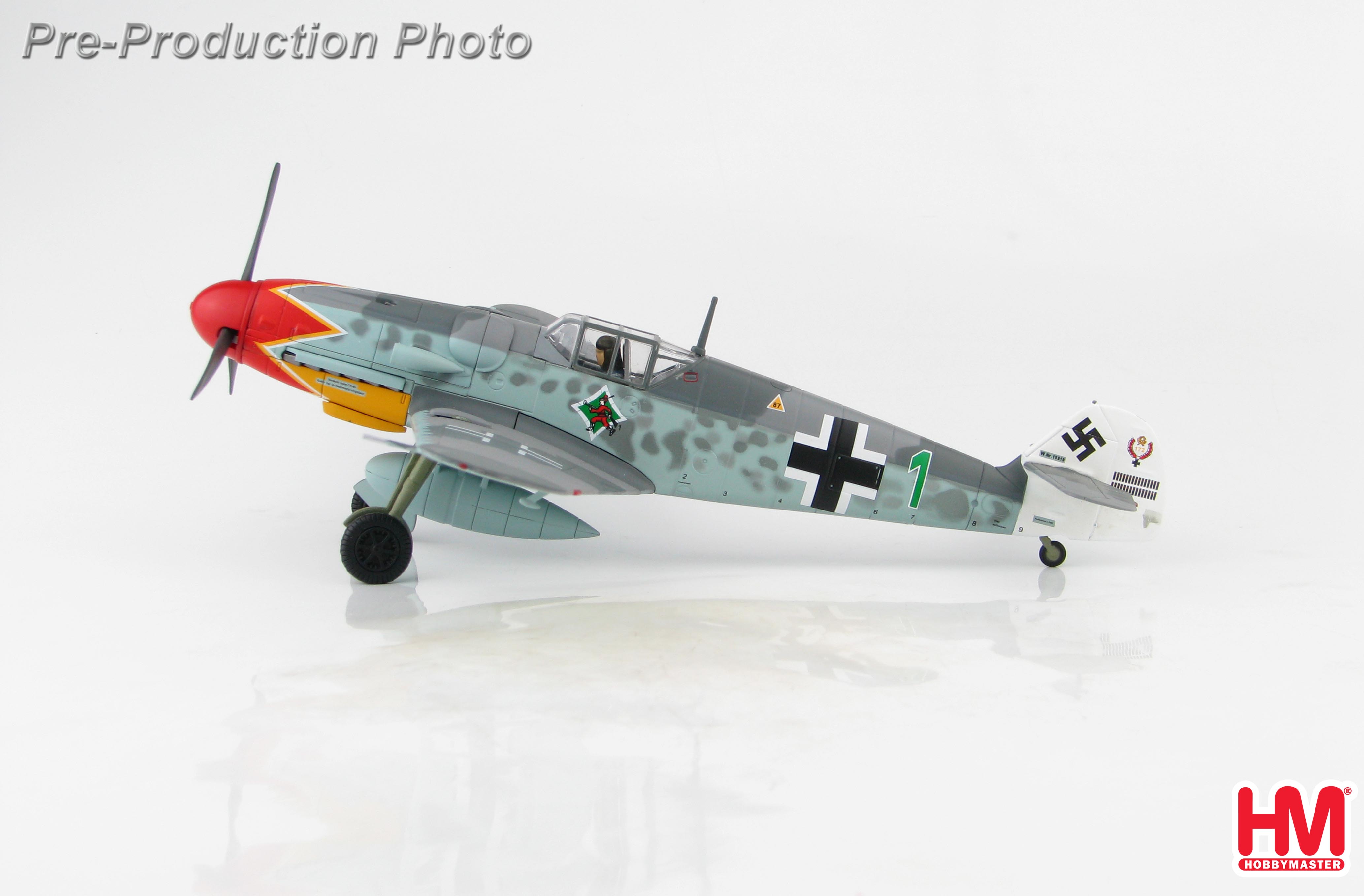

Hobby Master 1/48 Air Power Series
HA8751
BF 109G-6 "Hermann Graf"
W.Nr. 15919, Co. of JGr 550,
Wiesbaden-Erbenheim, Germany,
September 1943
