The SB2C Helldiver was commonly referred to as “The Beast” because of its size and
rather poor handling characteristics. Even with new variants and upgrades the Helldiver
never received the credit and respect it deserved. The most produced variant was the

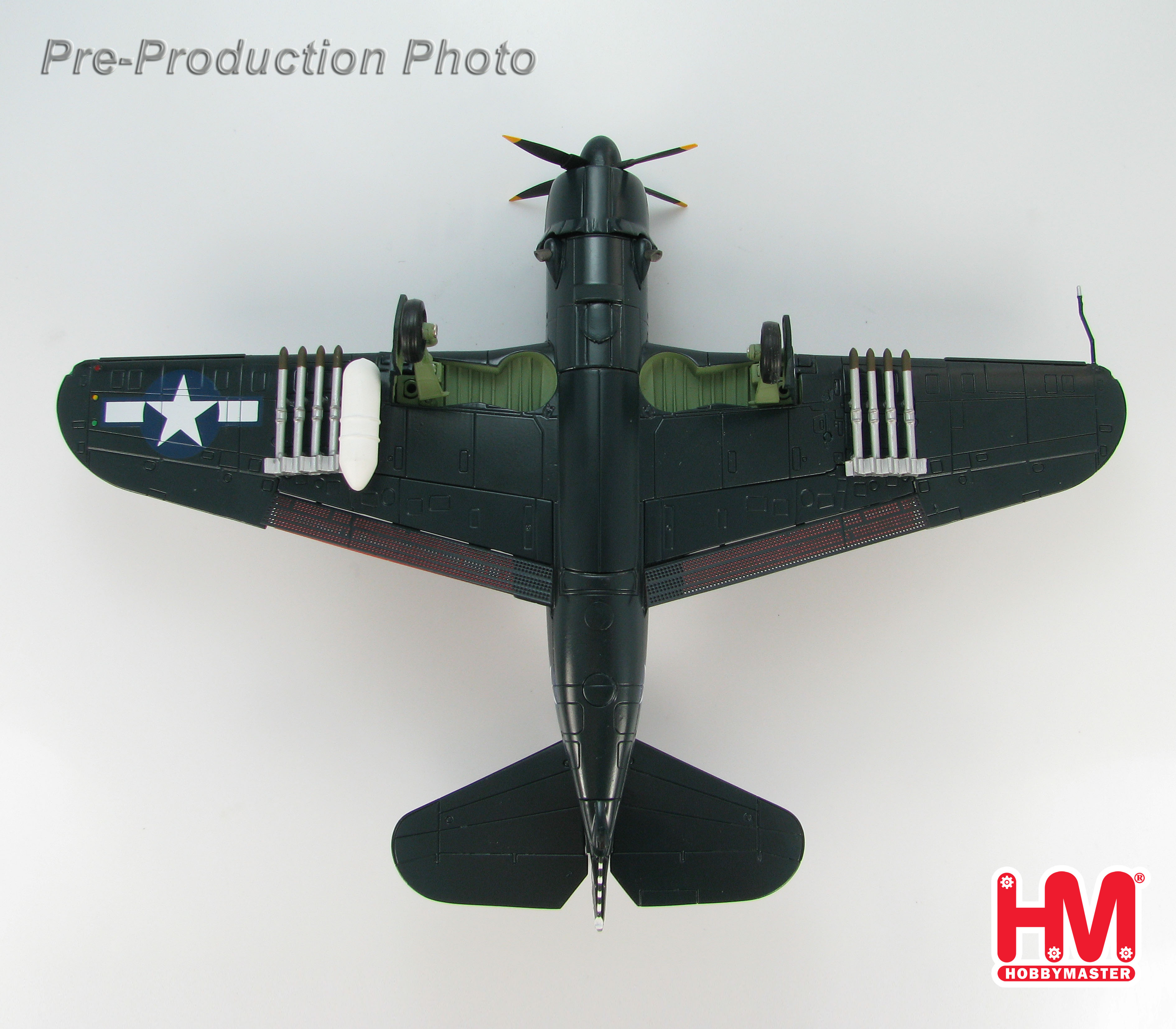

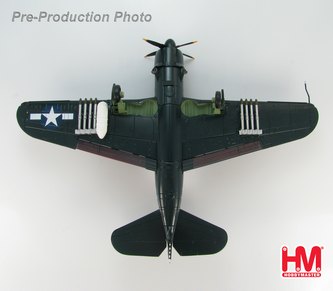

“4” with the SB2C-4E equipped with an AN/APS-4 radar pod mounted under the
starboard wing for air search. It flew faster and further than the Avenger, except for
range it beat the SBD in every category. Its cruising speed was only 2 mph slower than
the famous Hellcat.

Bombing Squadron 85, VB-85, operated from the USS Shangri-La between April and

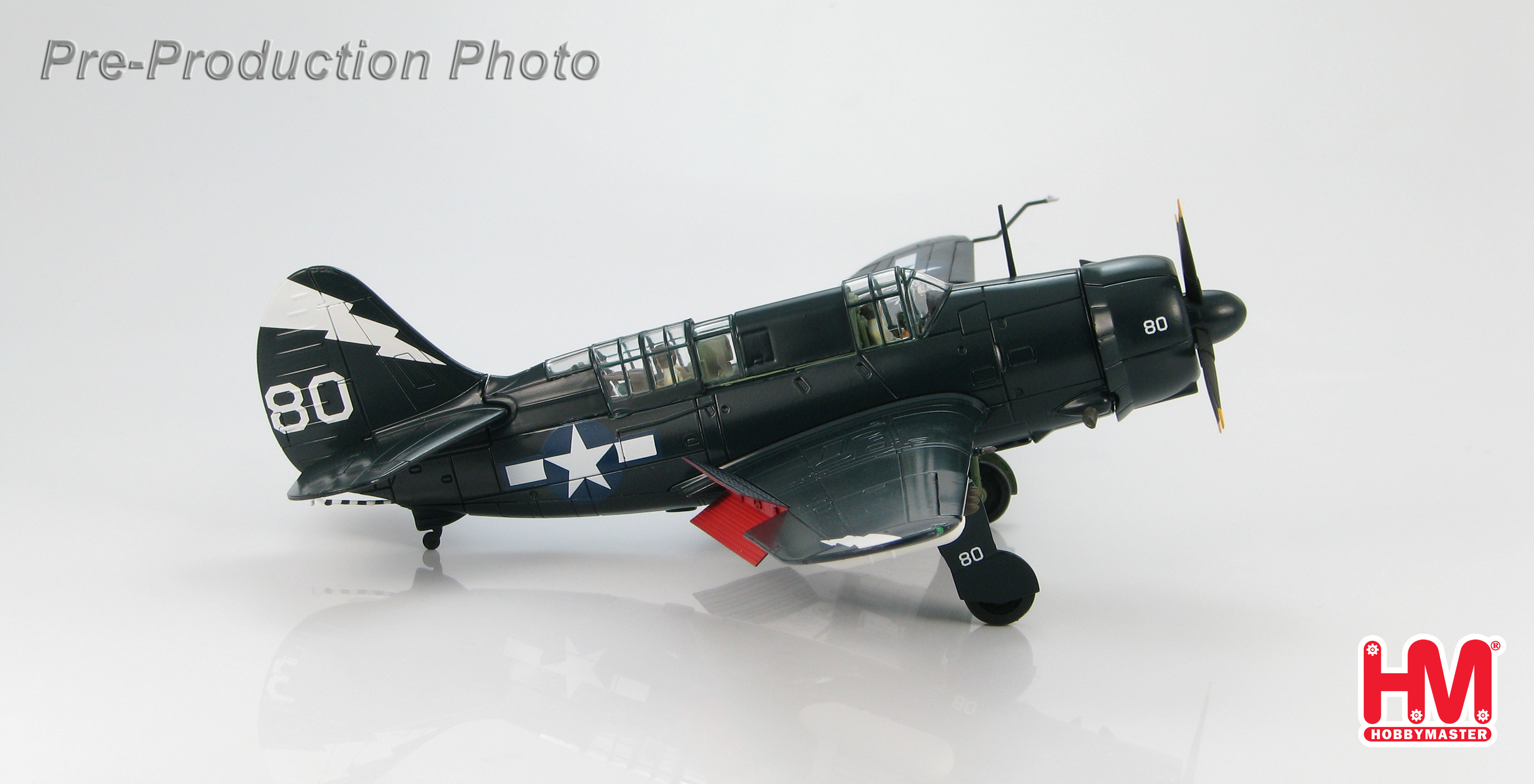

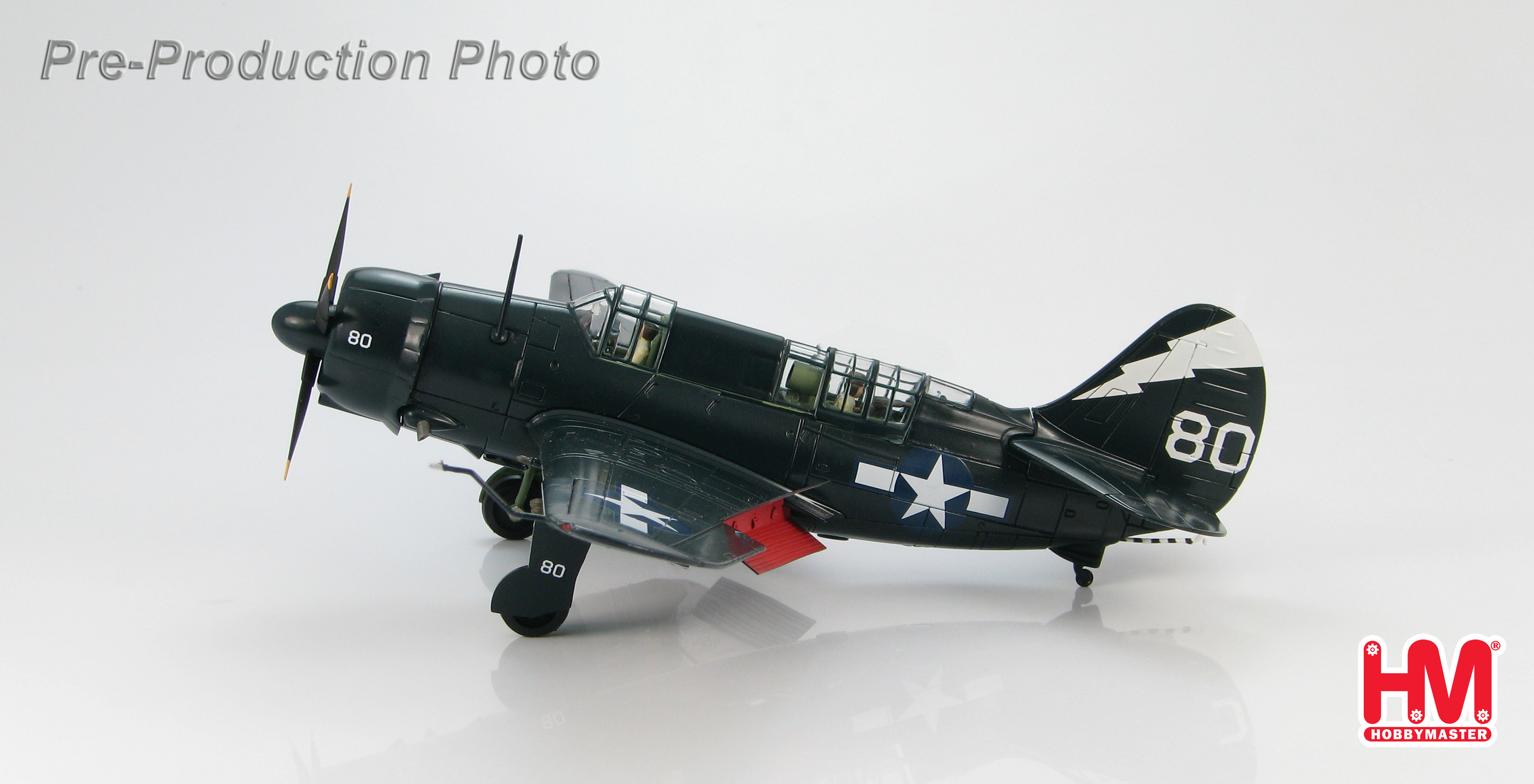

September 1945. The white lightning bolt on the tail and white numbers on the tail and
engine cowling made these aircraft one of the most recognizable in 1945. Air Group 85’s
first operation took place at Okinawa and then moved to attacks on the Japanese
mainland. President F. D. Roosevelt commented that the departing Doolittle B-25’s from
the USS Hornet looked like they took off from the mythical Shangri-La and this how
CV-38 received its name.

Specifications for the Curtiss SB2C-4 Helldiver

First flight – 18/12/1940

Crew – 2 X Pilot and Radio Operator/Gunner

Dimensions
Length – 36.7ft   (11.18m)
Wingspan – 49.7ft   (15.16m)
Height – 13.2ft   (4.01m)

Performance
Engine – 1 X Wright R-2600-2- Cyclone / 1900hp   (1,417kW)
Speed – Cruise / 158mph   (254km/h)   (137kts)
Maximum Speed – 295mph   (475km/h)   (256kts)
Rate Of Climb – 1,800ft/min   (548m/min)
Service Ceiling – 29,100ft   (8,869m)
Range – 1,165miles   (1,876km)

Weight
Empty – 1,057lbs   (7535kg)
Maximum Take Off – 16,616lbs   (7,537kg)

Armament
2 X 20mm fixed wing cannon or 4 X 0.50 caliber fixed wing machine guns
2 X 0.30 caliber rear cockpit machine guns or 1 X 0.50 caliber flexible rear cockpit
machine gun
Bomb Load- 1 X torpedo or 1,000 pounds of bombs in the bay or 4 X depth charges
Also capable of carry an additional 1,000 pounds of bombs or 8 X 5inch rockets under
the wings.
