7 Kokudan squadron flies 12 out of the original 14 RF-4E’s that have the camera
noses. They also are equipped with 17 RF-4EJ Kais that are upgraded F-4EJ Kai
interceptors capable of carrying a variety of recce pods. All the F-4 aircraft are being
replaced by the Mitsubishi F-2 with reconnaissance being provided by other aircraft.


McDonnell Douglas RF-4EJ 57-6913 C/N 4639 was delivered in January 1975. The JASDF serial
number system makes it possible to determine information concerning each aircraft. The first digit
in the serial number is the last digit in the year of delivery; in this case it is 5 making the delivery
year 1975. The second digit 7 identifies the aircraft as a Phantom and the third digit 6 identifies
the aircraft as a Reconnaissance version. This aircraft was updated to KAI standards and
belongs to the 501st Hikotai.


Specifications for the F-4E Phantom II / F-4EJ

They are virtually identical except for the restricted equipment:
This included removal of the in-flight refueling receptacle that was later retrofitted,
no leading edge slats, ground attack control equipment such as weapons and bomb
delivery systems and the addition of modern electronic equipment including a data
link system and radar warning receiver. Most or all this equipment was eventually
reinstalled.

Number Built: F-4E - 5,195 / F-4EJ - 154 with 138 built in Japan under license.

Interesting trivia:
Each aircraft has 54,197 feet of wiring and 643,000 fasteners holding it together.

Engines:
2 X General Electric J79-GE-17 turbojets, 11,870 lb.s.t dry, 17,900 lb.s.t. with
afterburner.

Performance:
Maximum speed - 1430 mph at 36,000 feet (Mach 2.21), 914 mph at sea level (Mach
1.19).
Cruising speed - 585 mph.
Landing speed - 158 mph.
Initial climb rate - 61,400 feet per minute.
Service ceiling - 62,250 feet.
Combat ceiling - 59,600 feet.
Combat range - 595 miles.
Normal range - 1,100 miles.
Maximum range – 1,885 miles with maximum external fuel.

Weights:
Empty - 29,535 pounds.
Gross - 40,562 pounds.
Combat weight - 38,019 pounds.
Maximum takeoff weight - 61,651 pounds.

Dimensions:
Wingspan - 38 feet 5 inches.
Wing area - 530 square feet.
Length - 63 feet 0 inches.
Height - 16 feet 6 inches.

Fuel:
Maximum internal fuel in the fuselage tanks - 1364 US gallons (up to block 40) or
1225 US gallons (block 41 and beyond). An additional 630 gallons of fuel could be
carried in internal tanks inside the wings.
Maximum external fuel - 600 US gallons in a centerline tank carried underneath the
fuselage.
Plus 370 US gallons in each of two tanks carried underneath the outer wing pylons.
Total fuel load – 3,334 US gallons (up to block 40) or 3,195 US gallons (block 41 and
beyond).

Armament:
1 X 20-mm M61A1 cannon with 639 rounds.
4 X AIM-7 Sparrow semi-active radar homing air-to-air missiles in semi-recessed
slots in the fuselage belly.
2 to 4 X AIM-9 Sidewinder infra-red homing air-to-air missiles carried under the
wings on the inboard pylons.
A total offensive load of up to 16,000 pounds could be carried on the centerline and
four under-wing hard-points.

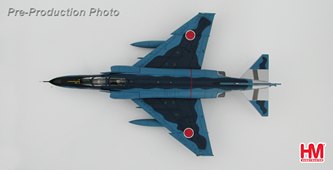

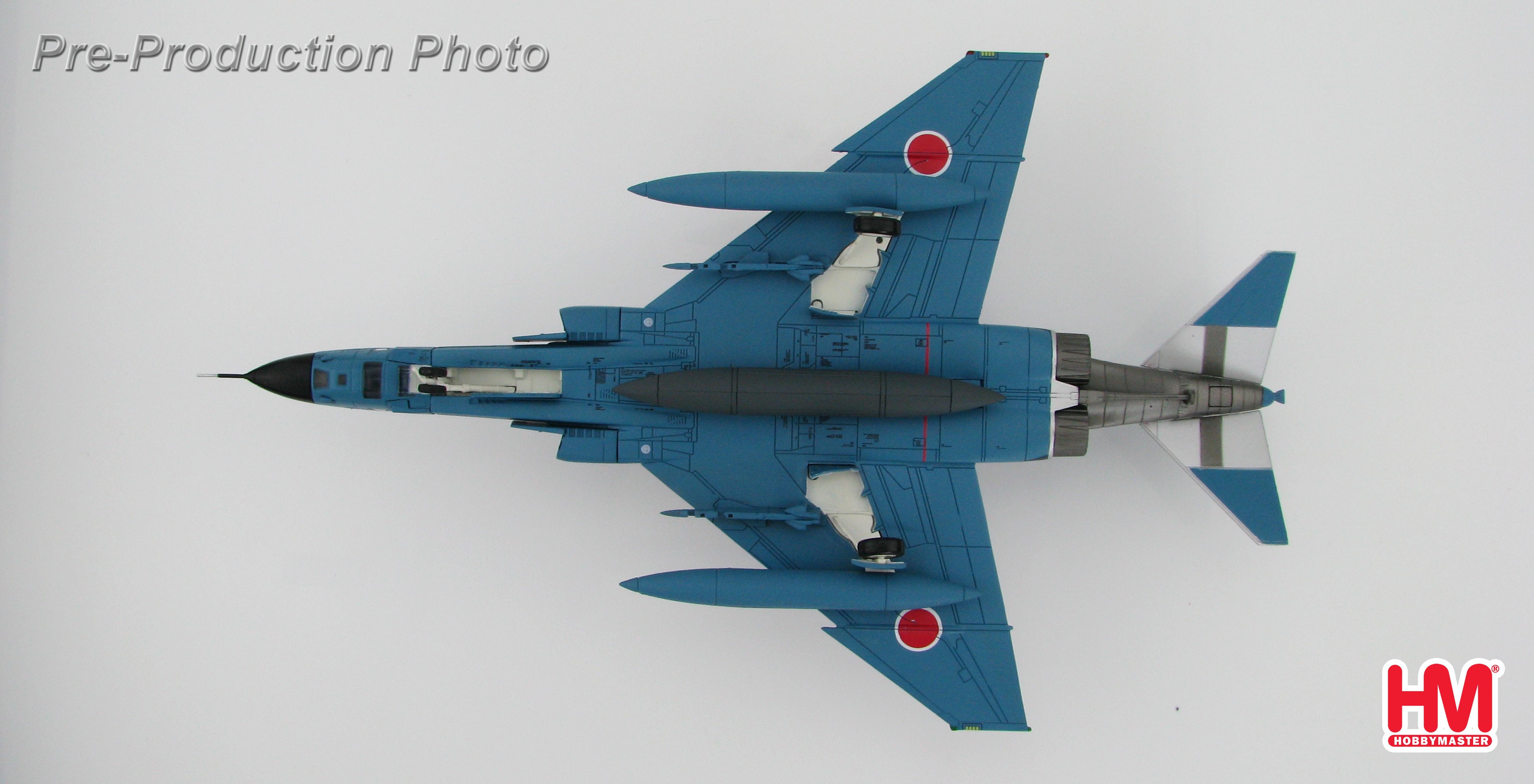

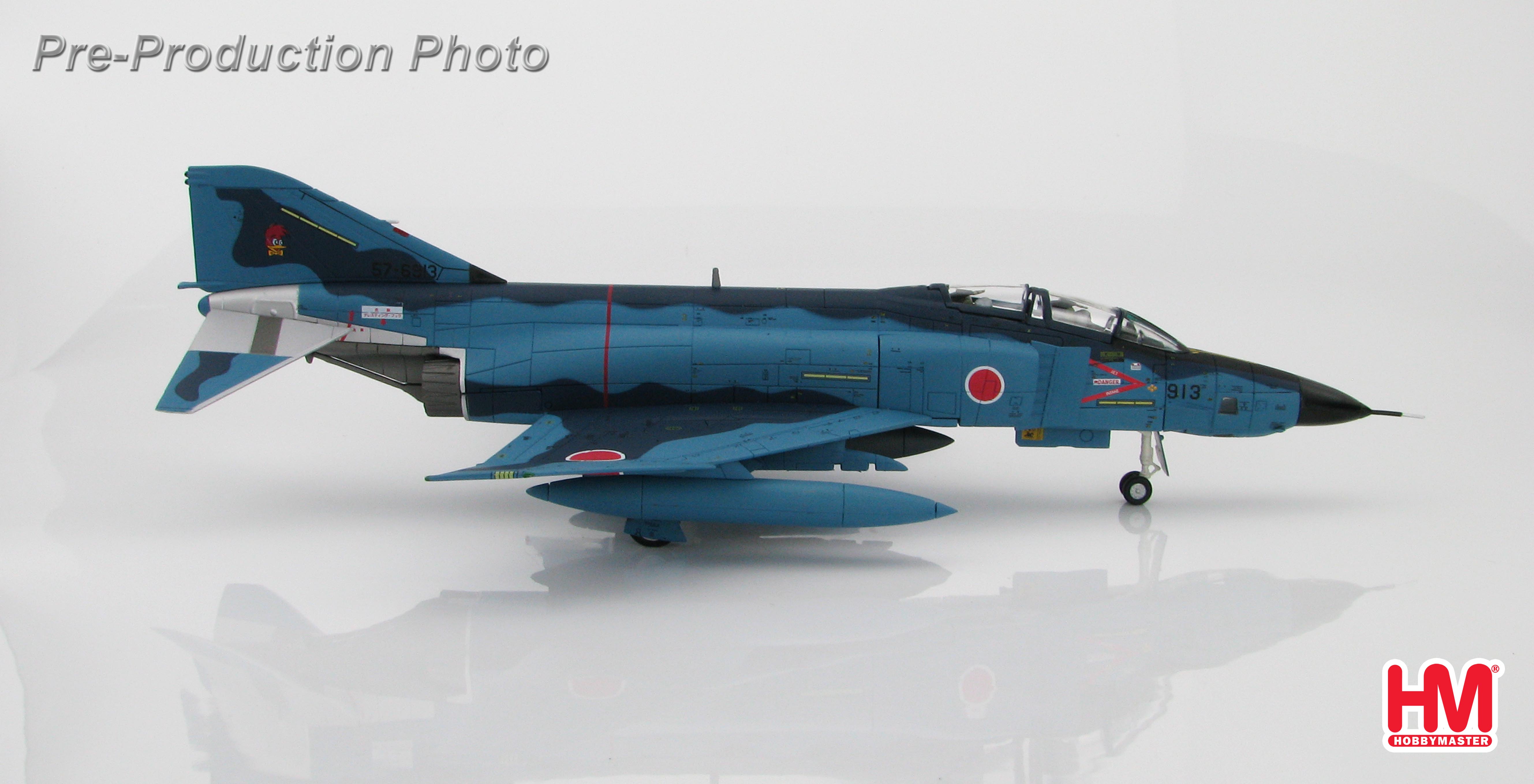

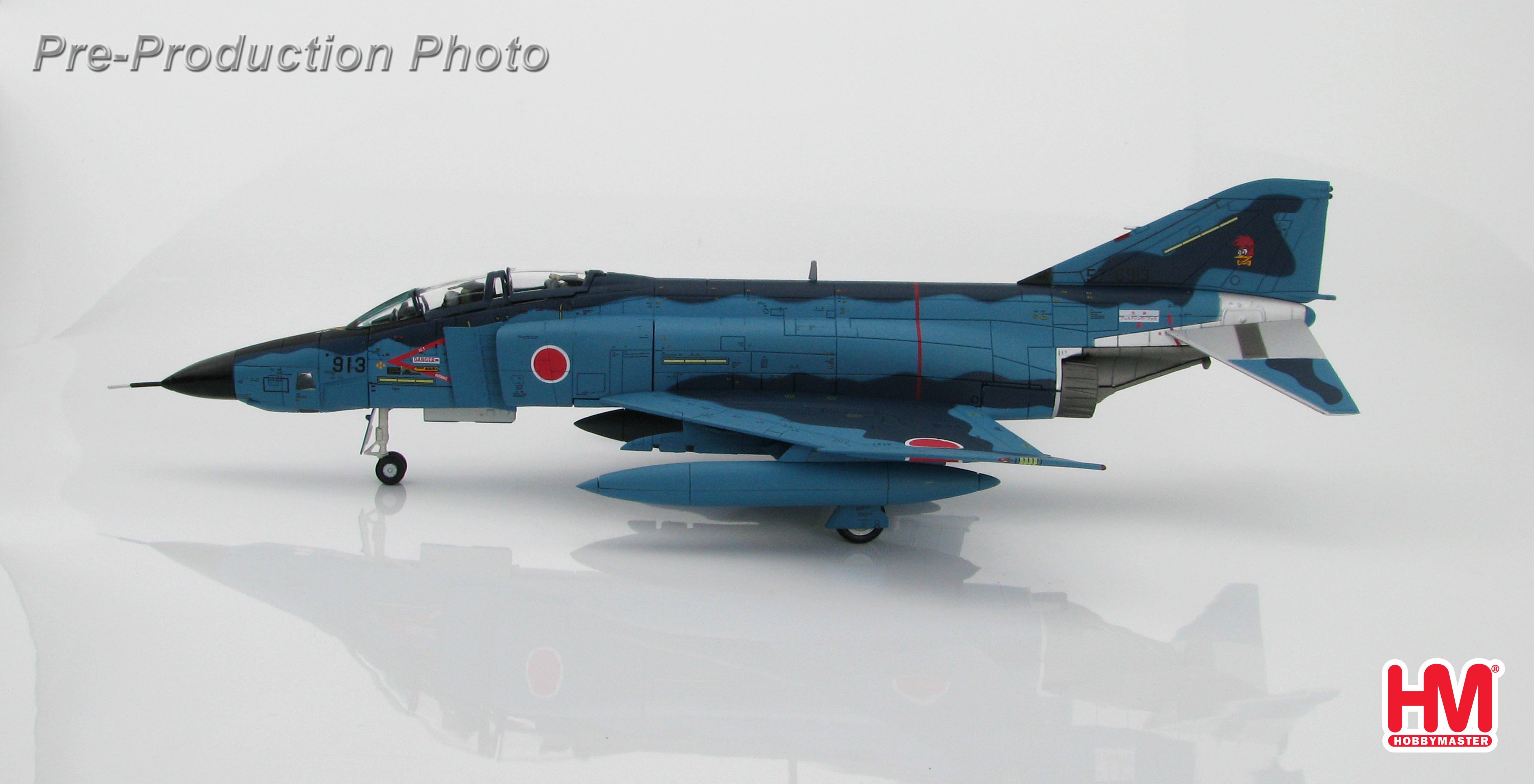

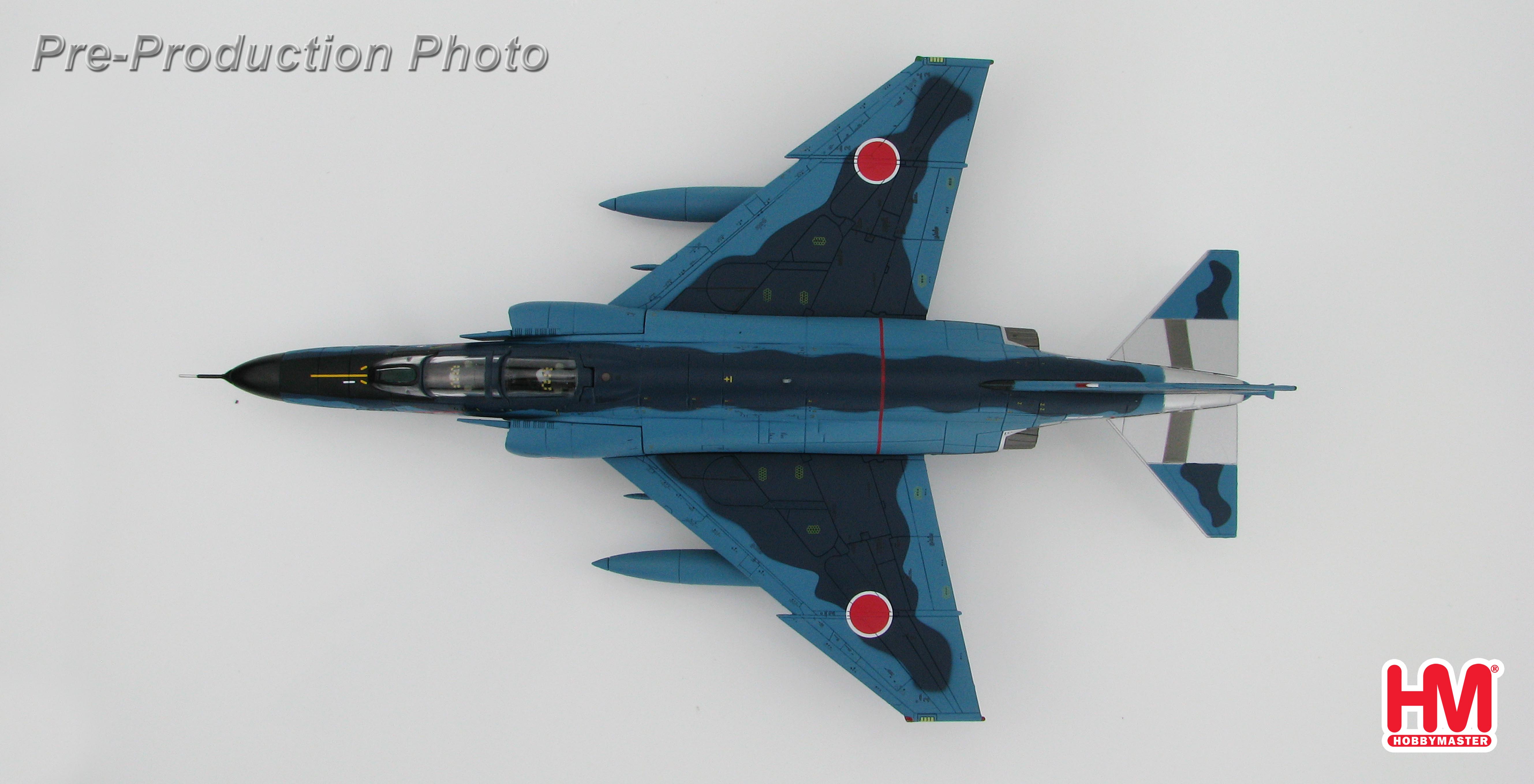

Hobby Master 1/72 Air Power Series
HA1994
McDonnell Douglas RF-4EJ
57-6913, JASDF, 2016
True 1/72 scale.
Great attention to detail.
All markings are Tampoed (pad applied).
Option to display the model on a stand that is provided.
Model can be shown with the landing gear in the down or up positions.
Canopy can be displayed open or closed.
Pilot figures included.
Extremely heavy metal with a minimum of plastic.
Highly collectable.


JASDF
roundel
JASDF
ensign
