Diecast Aircraft Information  Diecast Aircraft Information MetalWings Diecast Aircraft Reference by Dauntless Aviation
The North American F-86 Sabre was manufactured from 1949 – 1956 and was America’s first
swept-wing fighter. As well as being built in the U.S. variants were built in Canada and Australia
arrived to take on the other swept-wing aircraft of the conflict, the MiG-15 Fagot. The Americans
claim they shot down 792 MiGs while only losing 78 Sabres, a 10:1 victory ratio which is greatly
disputed.


Pakistan eventually purchased 102 F-86F Sabres and began to receive the Sabres in 1954. On
September 1965 during the Indo-Pakistani War of 1965 Sqn Leader, Commander No.11
Squadron Modhammed Mahmood Alam became an ace within one minute when he downed five
Indian Air Force Hawker Hunter fighters in one minute. For this action he was awarded the
Sitara-e-Jurat "The star of courage". During the 1965 war he is credited with nine victories of
which six were Hawker Hunters. In 1982 Modhammed Mahmood Alam retired as an Air
Commodore.




Specifications for the North American F-86F-30

Crew – 1

Dimensions
Length – 37 ft 1 ins  (11.4 m)
Wingspan – 37 ft 0 ins   (11.3 m)
Height – 14 ft 1 ins  (4.5 m)

Weights
Empty – 11,125 lb  (5,046 kg)
Loaded – 15,198 lb  (6,894 kg)
Maximum Take-off – 18,152 lb  (8,234 kg)

Powerplant
1 – General Electric J47-GE-27 turbojet
Thrust – 5,910 lbf (maximum @7,950 rpm for 5 minutes) 26.3 kN)
Fuel – JP-4
Internal – 437 US gallons  (1,650 l)
Drop Tanks – 2 x 200 US gallons  (760 l)
Maximum Speed – 687 mph  (1,106 km/h) @ sea level and combat weight of 14,212 lb  (6,447 kg)
Range – 1,525 miles  (2,454 km)
Service Ceiling – 49,600 ft @ combat weight (15,100 km)
ROC – 9,000 ft/min @ sea level  (45.72 m/s)

Armament
Guns- 6 x 0.50 in  (12.7 mm) M2 Browning machine guns w/1,602 rounds
Rockets – various rocket launchers, example 2 x Matra rocket pods w/18 SNEB (French
manufacturer - Societe Nouvelle des Etablissements Edgar Brandt) 68 mm air-to-ground rockets
per pod
Bombs – 5,300 lb  (2,400 kg) of payload on 4 outer hardpoints while 2 inner pylons were
designed for 2 drop tanks to extend range. A variety of bombs could be carried with standard
maximum load of 2 x 1000lb bombs on outer pylons plus 2 x 200 US gallon drop tanks on the 2
inner pylons. Napalm canisters and even tactical nuclear weapons could be selected.

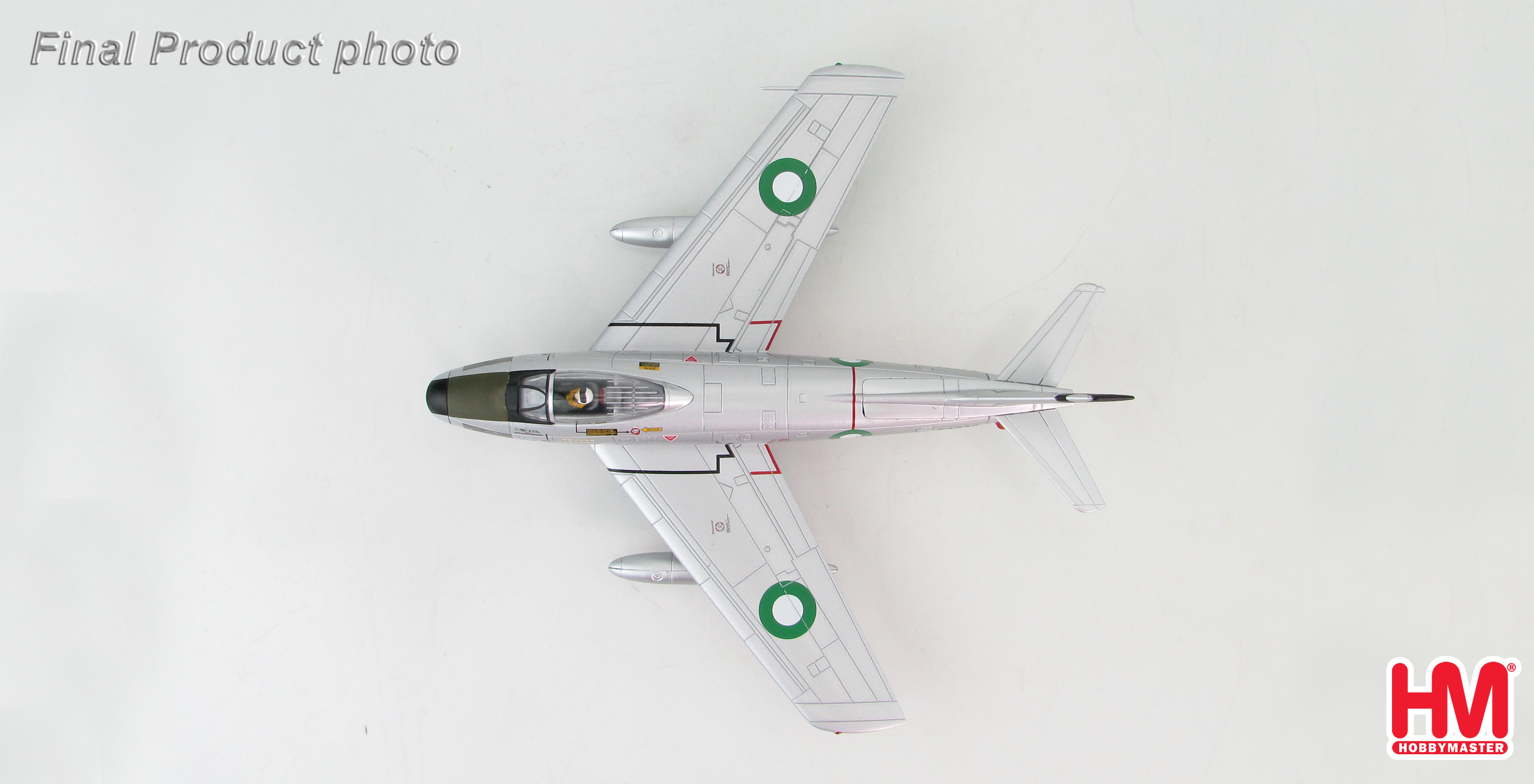

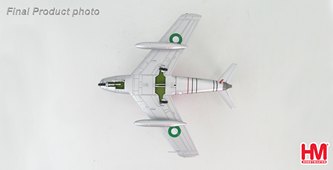

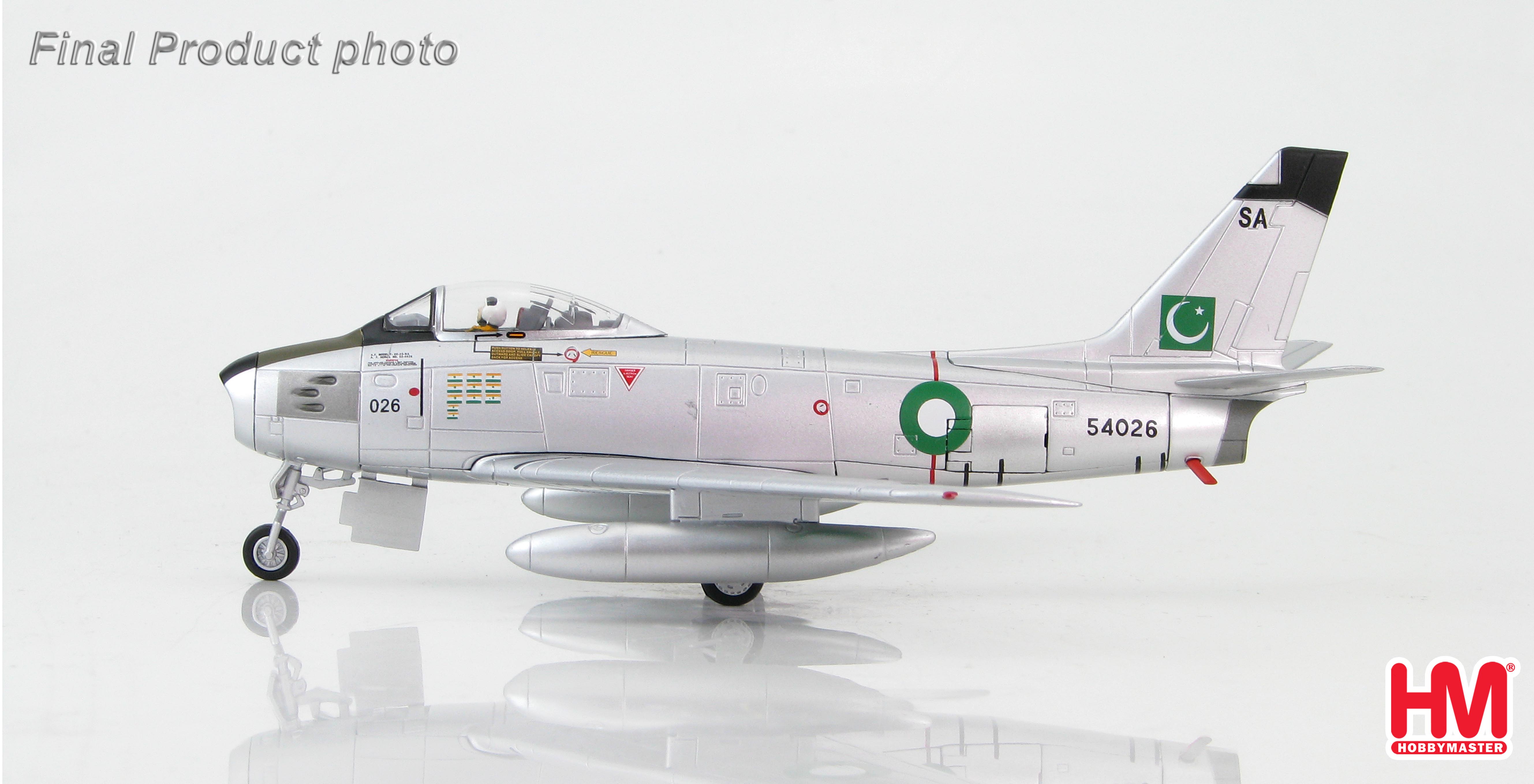

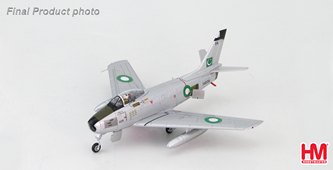

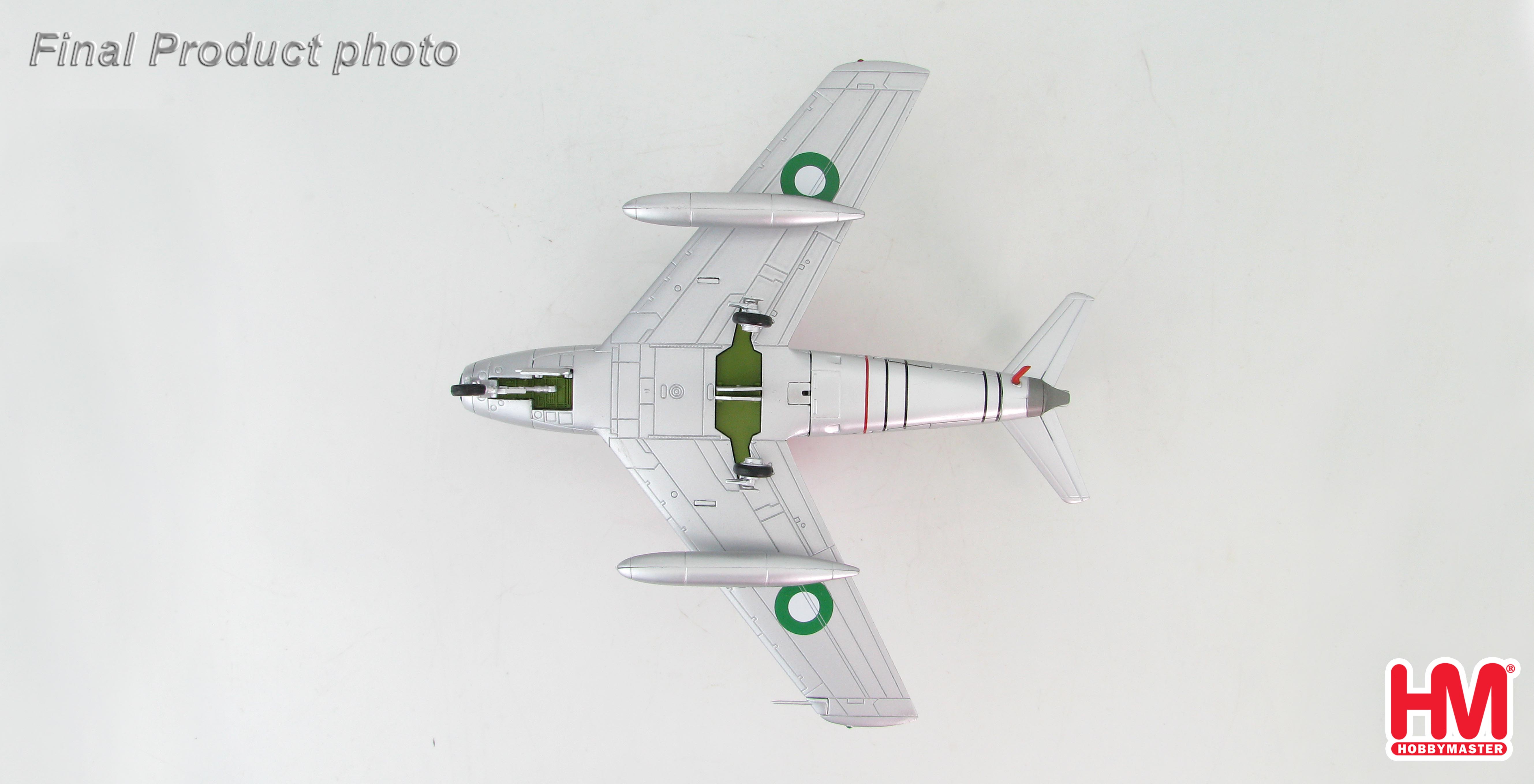

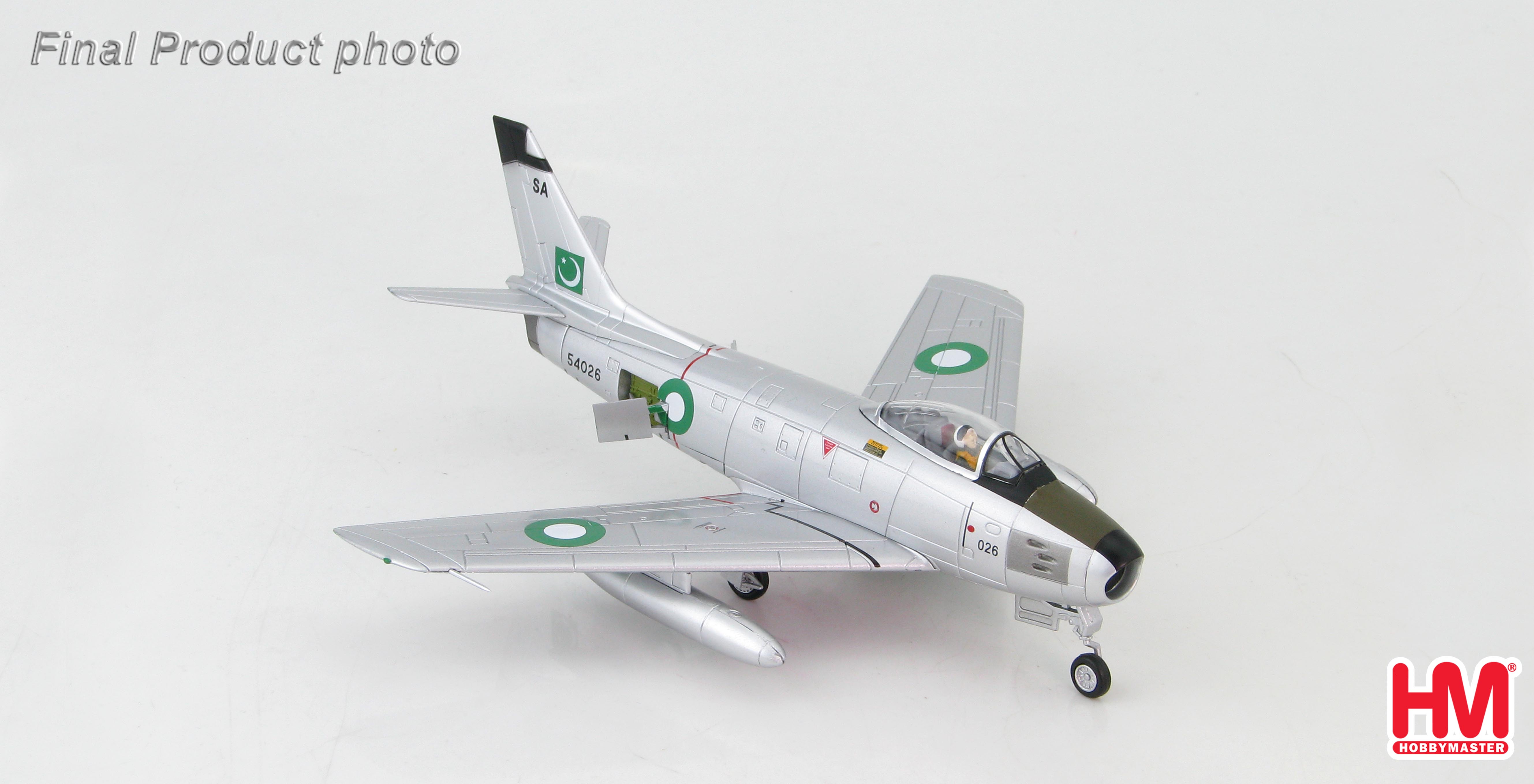

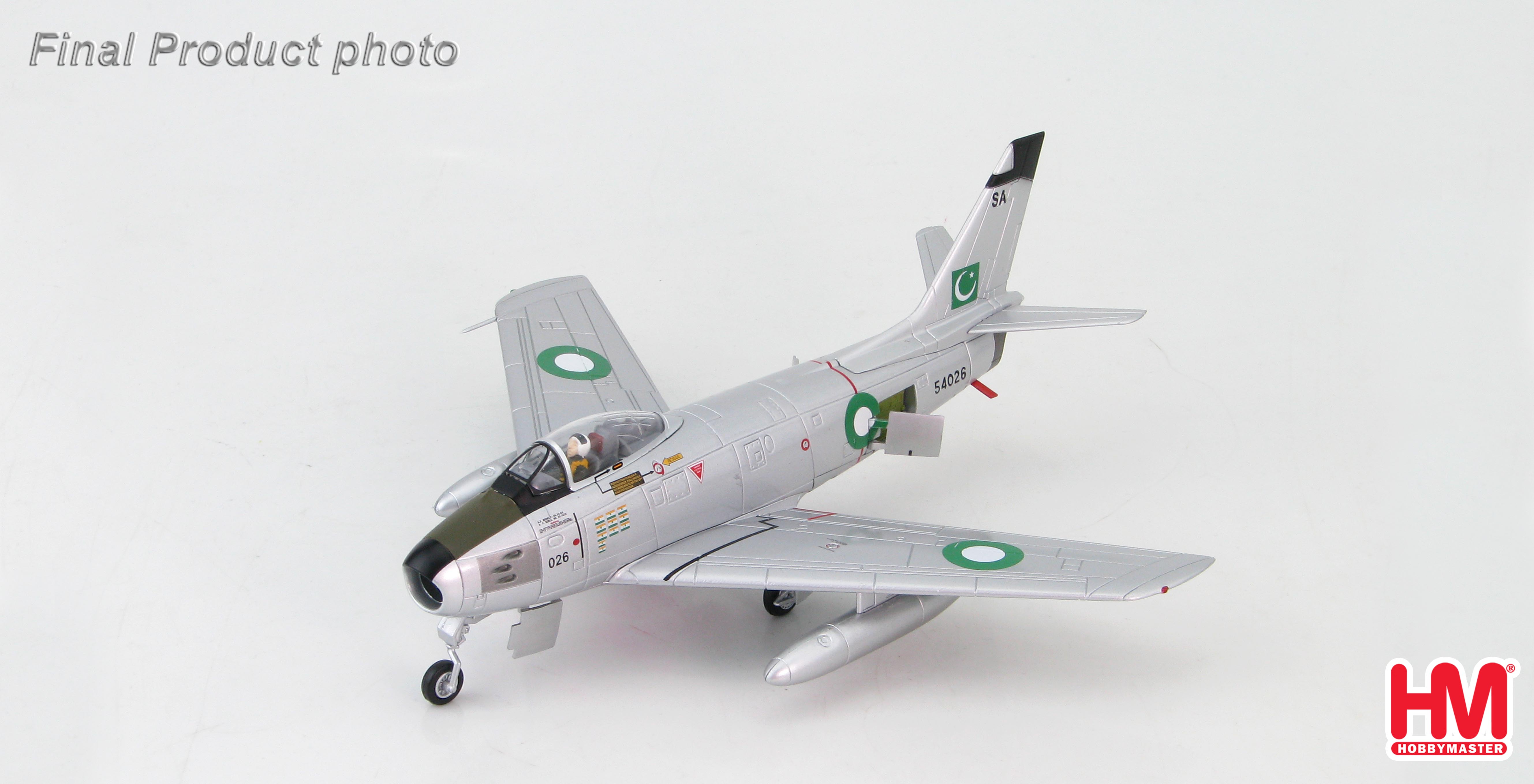

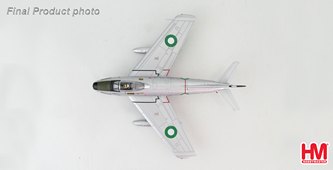

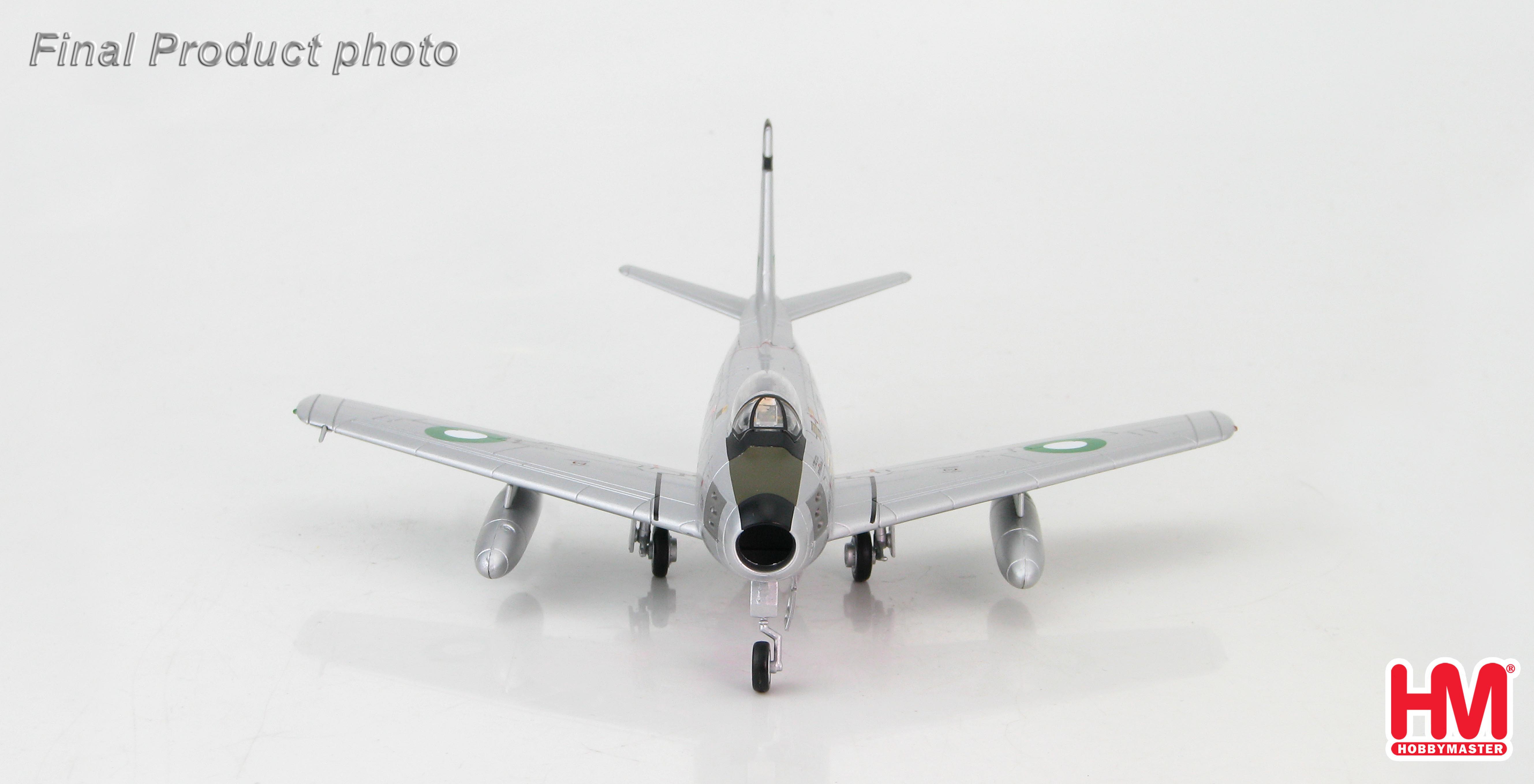

Hobby Master 1/72 Air Power Series
HA4311
F-86F-40 Sabre
Sqn Leader Modhammed Mahmood Alam,
Pakistan Air Force, 1965
Die-cast metal.
Superb detailing in 1/72 scale.
Pre-painted with pad applied markings.
Fully assembled.
Comes with crew figure
Display stand included.
Option to display model with wheels up or down.
Minimum use of plastic.
