Diecast Aircraft Information  Diecast Aircraft Information MetalWings Diecast Aircraft Reference by Dauntless Aviation
Hobby Master 1/72 Air Power Series

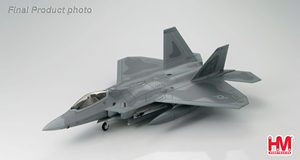

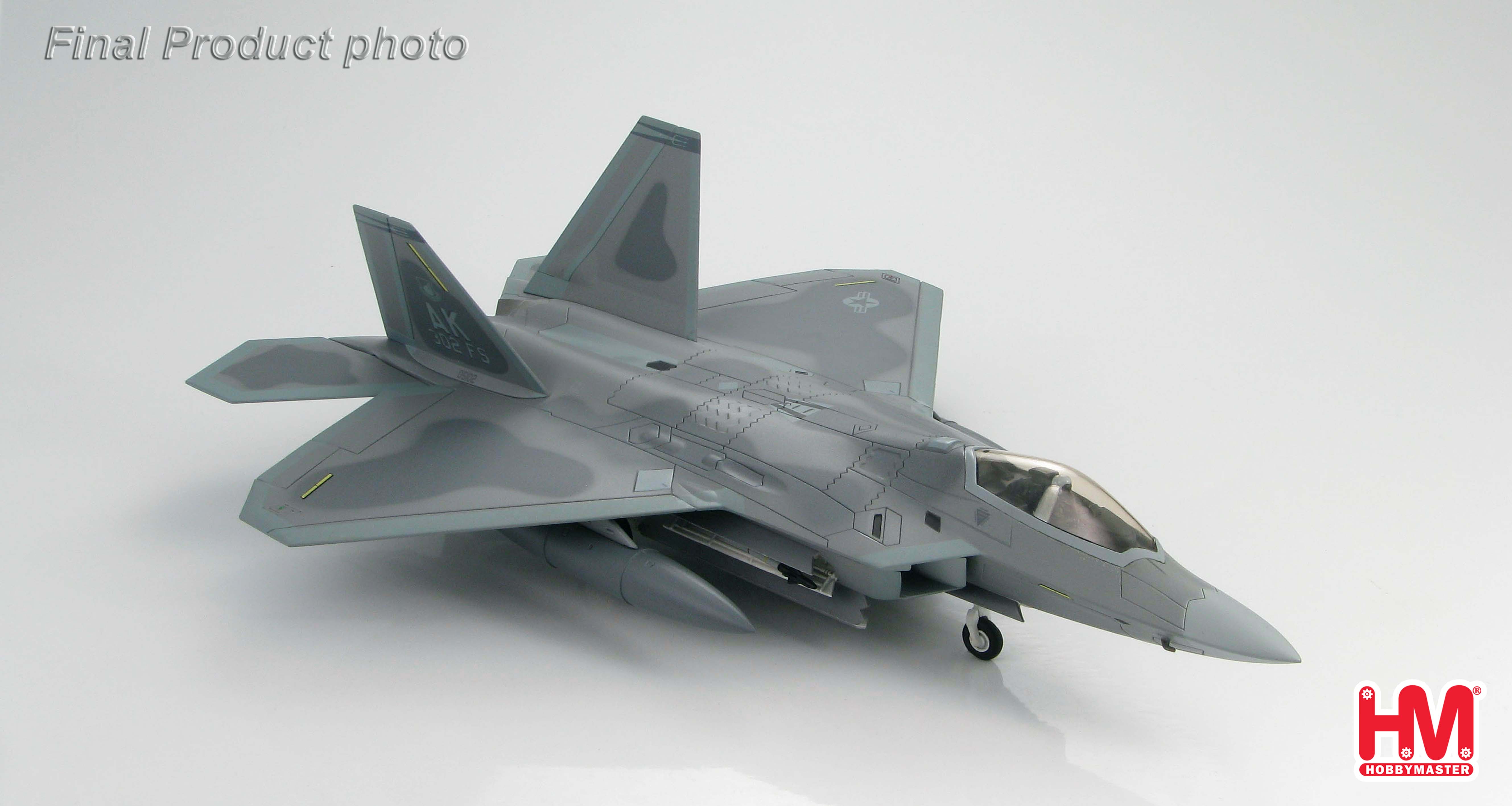

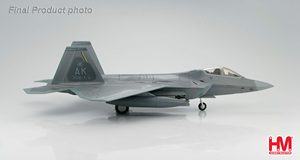

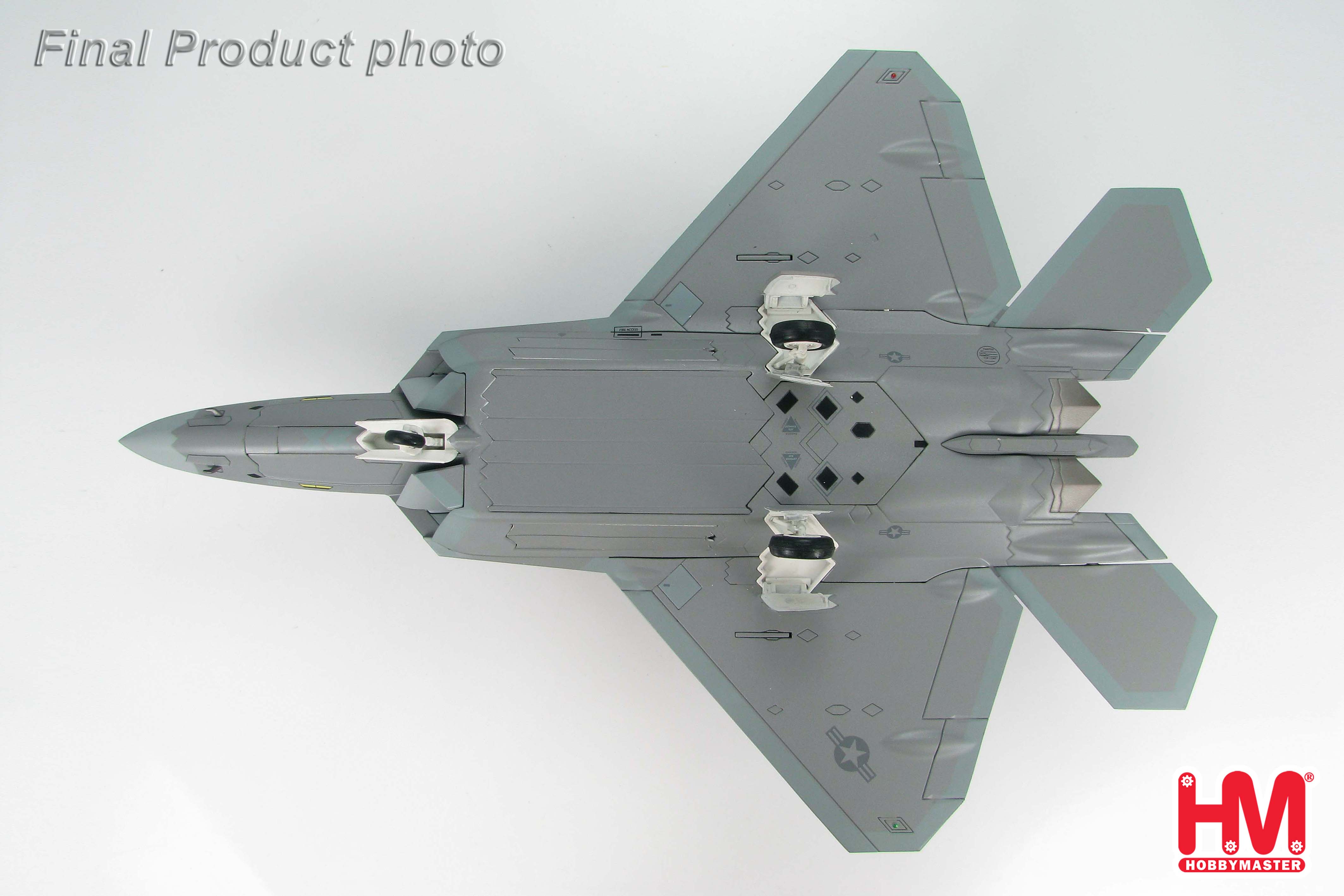

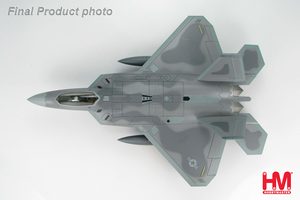

HA2802
Lockheed F-22 "Raptor"
05-4102, 302nd Fighter Sqn.
Elmendorf AFB, Aalaska
The USAF developed a requirement for a new air superiority fighter to replace the F-15 Eagle.
Advanced Tactical Fighter (ATF). The aircraft is constructed using 39% titanium, 24% composite
material, 16% aluminum and 1% thermoplastic by weight. All these components contribute to the
F-22 being a light weight, extremely maneuverable, extremely fast aircraft that uses stealth
technology. The F-22 is also capable of ground attack, electronic warfare and signals intelligence.


Originally the 302nd was one of 4 African-American FS to enter combat in WWII. After WWII they
became an SAR unit. In 1987 the 302nd mission was changed to a fighter role. The 302nd is an
Associate Reserve Squadron that doesn’t own its aircraft but instead supplies pilots to the 90th
and 525th Fighter Squadrons that belong to the 477th FG. In 2007 forty F-22s were assigned to
Elmendorf AFB in Alaska with each squadron receiving 20 aircraft. This aircraft 05-4102 is
marked in 302nd markings and is the CC’s (Commander) aircraft.


Lockheed Martin F-22 Raptor specifications

First flight - September 7, 1997

Planned Production - 750 aircraft initial program objective

Altered plan in 1990 - 648 aircraft

Altered plan in 1994 - 442 aircraft

In 1997 Department of Defense report – 339 aircraft

In 2006 the Pentagon wanted -183 aircraft

2008 approval for 4 additional aircraft bringing the total to 187

Number built as of August 2009 - 145 (187 planned)

Role - Air superiority fighter

Crew – (1) pilot

Performance
Engines – (2) Pratt & Whitney F119-PW-100 engines producing 35,000 lbst of thrust
Speed - Mach 1.8 (super cruise: Mach 1.5)
G Limit - +9 G
Ceiling - 60,000 ft   (18,290 m)
The F-22 and other fighters can reach this altitude, but only the F-22 can perform tactical
maneuvers at this level, which is about twice the altitude at which other jets can perform tactical
maneuvers.

Dimensions
Length - 62.08 ft   (18.90 m)
Height -16.67 ft   (5.08 m)
Wingspan - 44.5 ft   (13.56 m)
Wing Area - 840 sq ft   (78.04 sq m)
Horizontal Tail-span - 29 ft   (8.84 m)

Weights
Empty Weight - 31,670 lb   (14,365 kg)
Maximum Takeoff Weight - 60,000 lb   (27,000 kg)

Armament
Internal
(1)  20mm Cannon
(4)  AIM-9 Sidewinders (side weapon bays)
(4)  AIM-120A AMRAAM (internal ventral bay)
(6)  AIM-120Cs (internal ventral bay)
(6)  GBU-32 JDAM PGMs (internal ventral bay)
(8)  GBU-39 Small Diameter Bombs (250lbs ea)
External
(4)  under-wing hard-points with a maximum of 5,000lbs   (2,270kg) of mission-specific weaponry
or fuel drop-tanks.

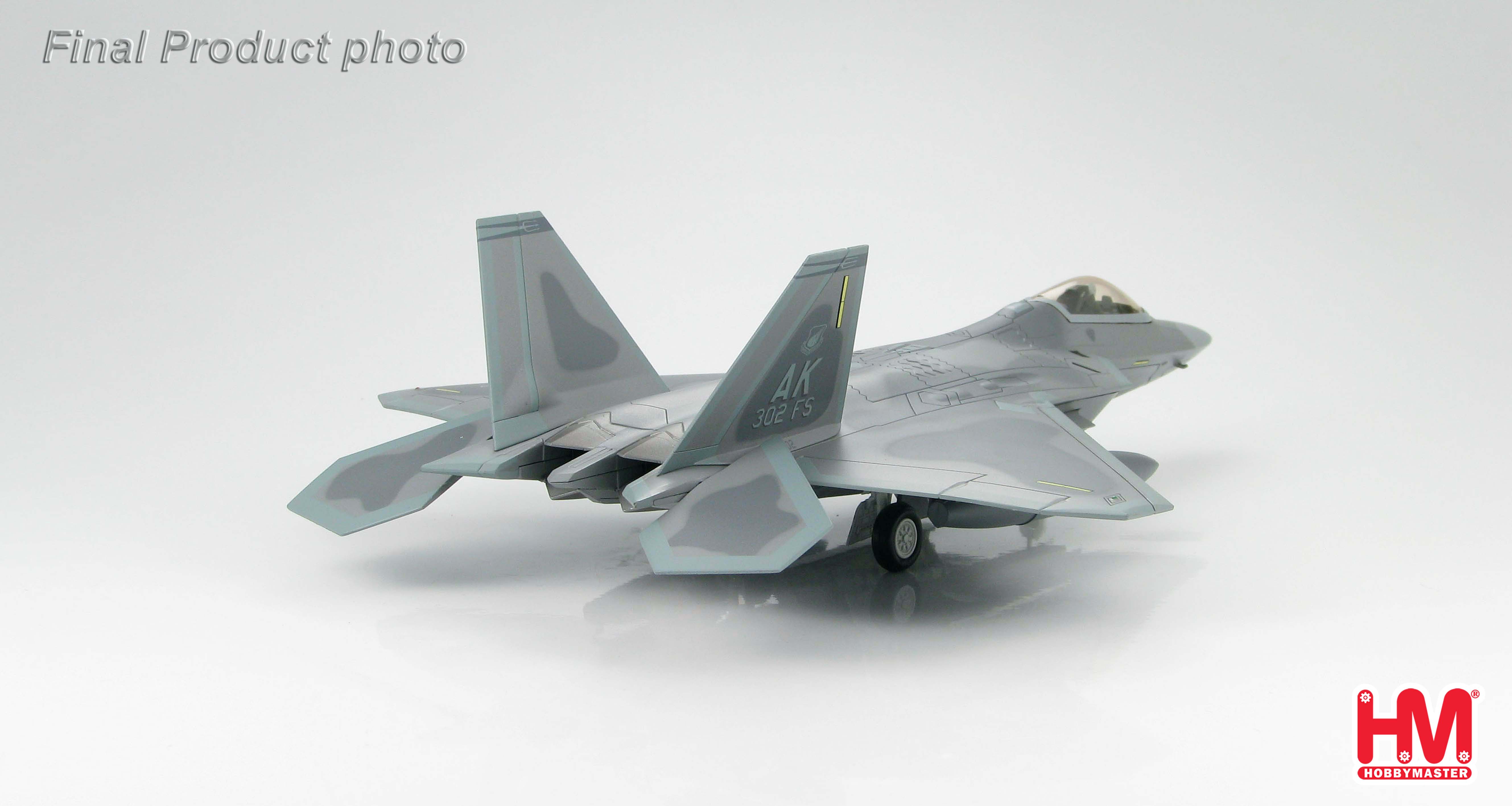

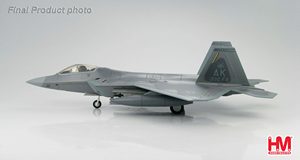

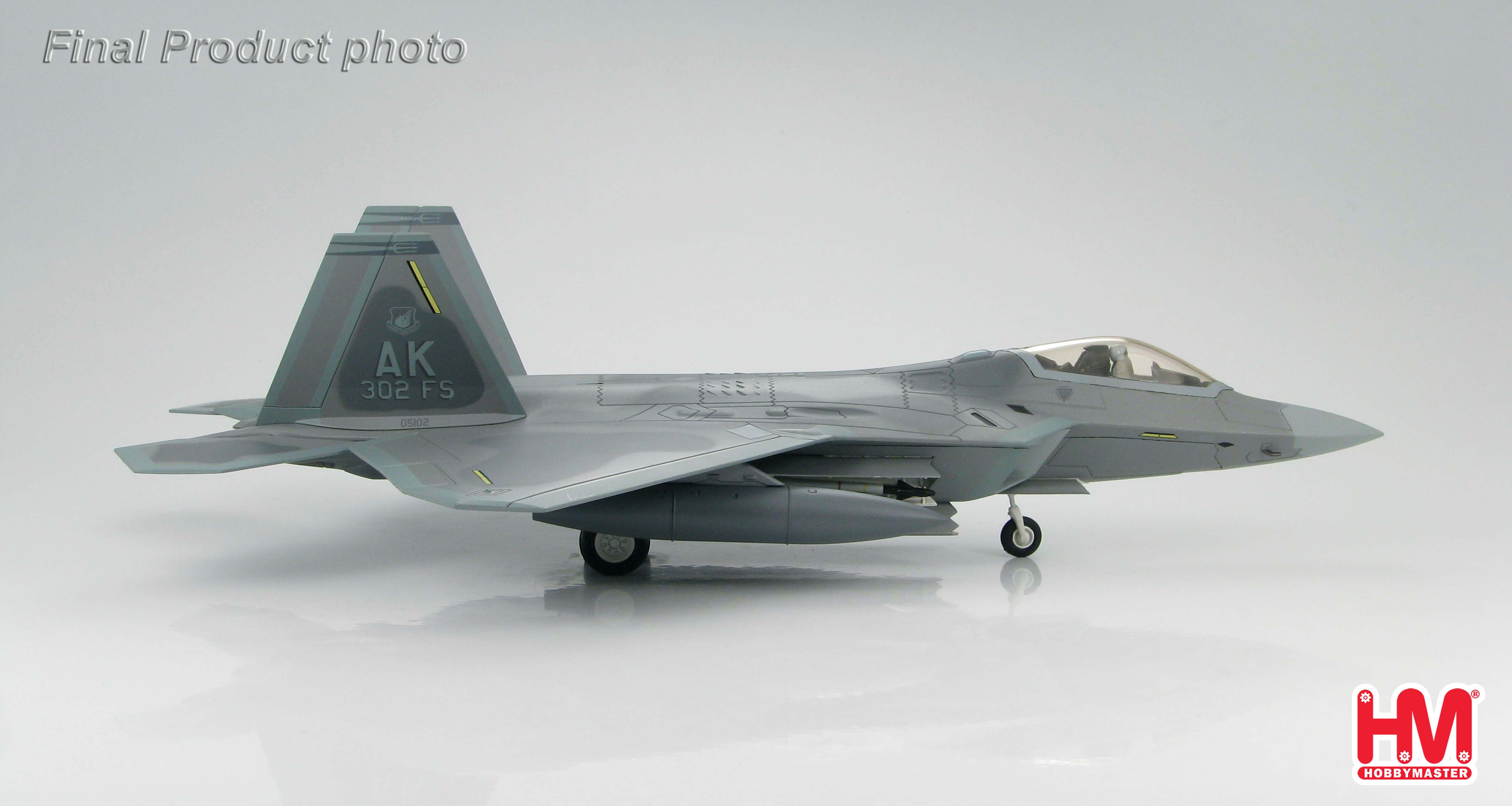

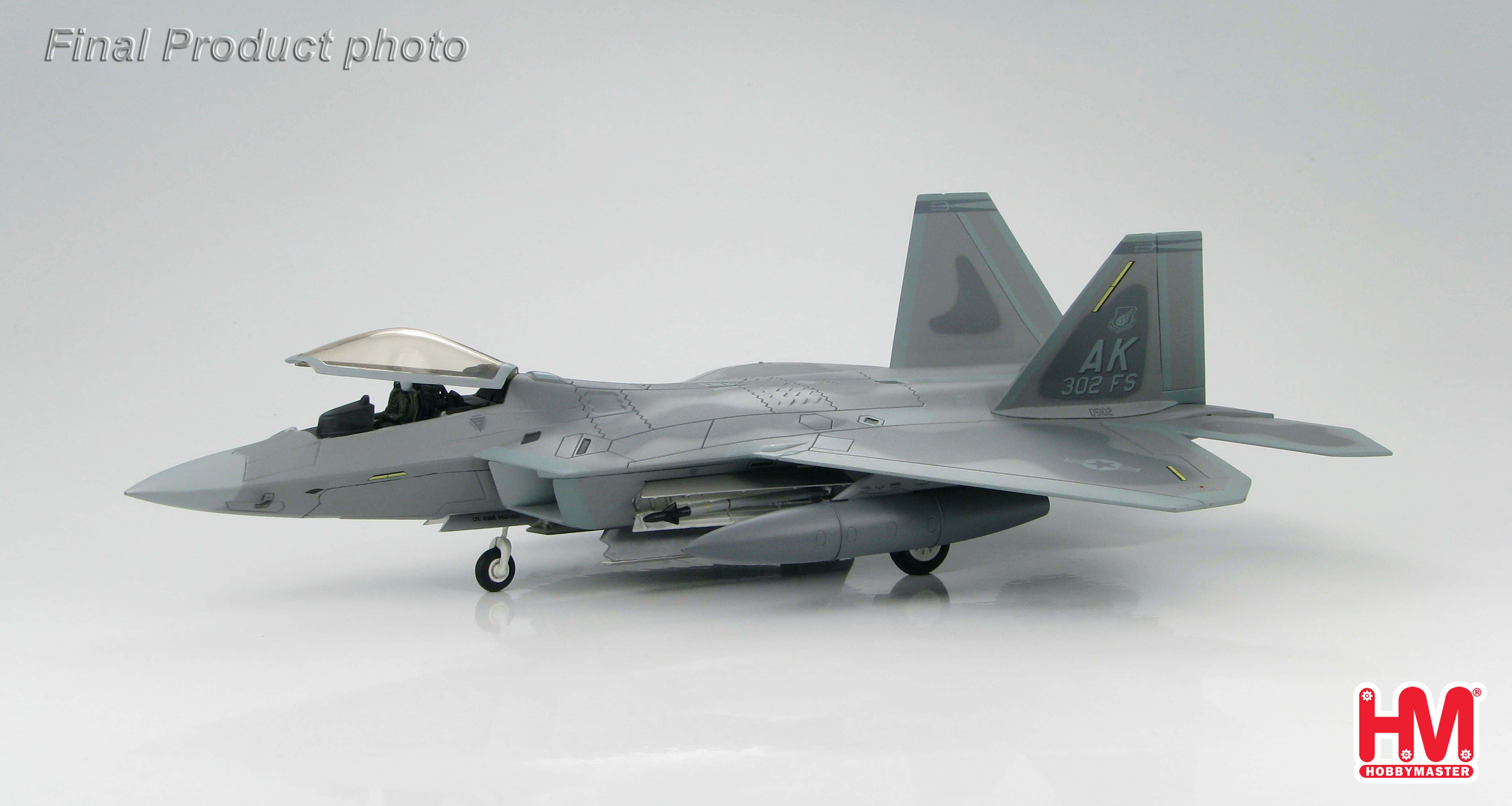

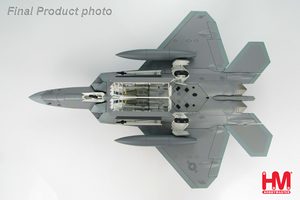

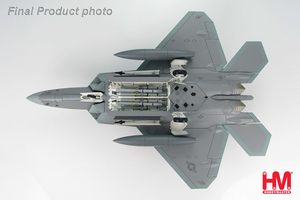

Die-cast metal.
Superb detailing in 1/72 scale.
Pre-painted with pad applied markings.
Fully assembled.
Weapons that are not permanently attached.
Display stand included.

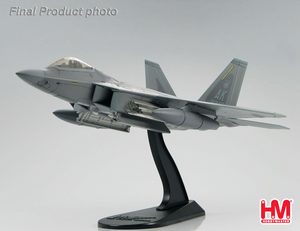

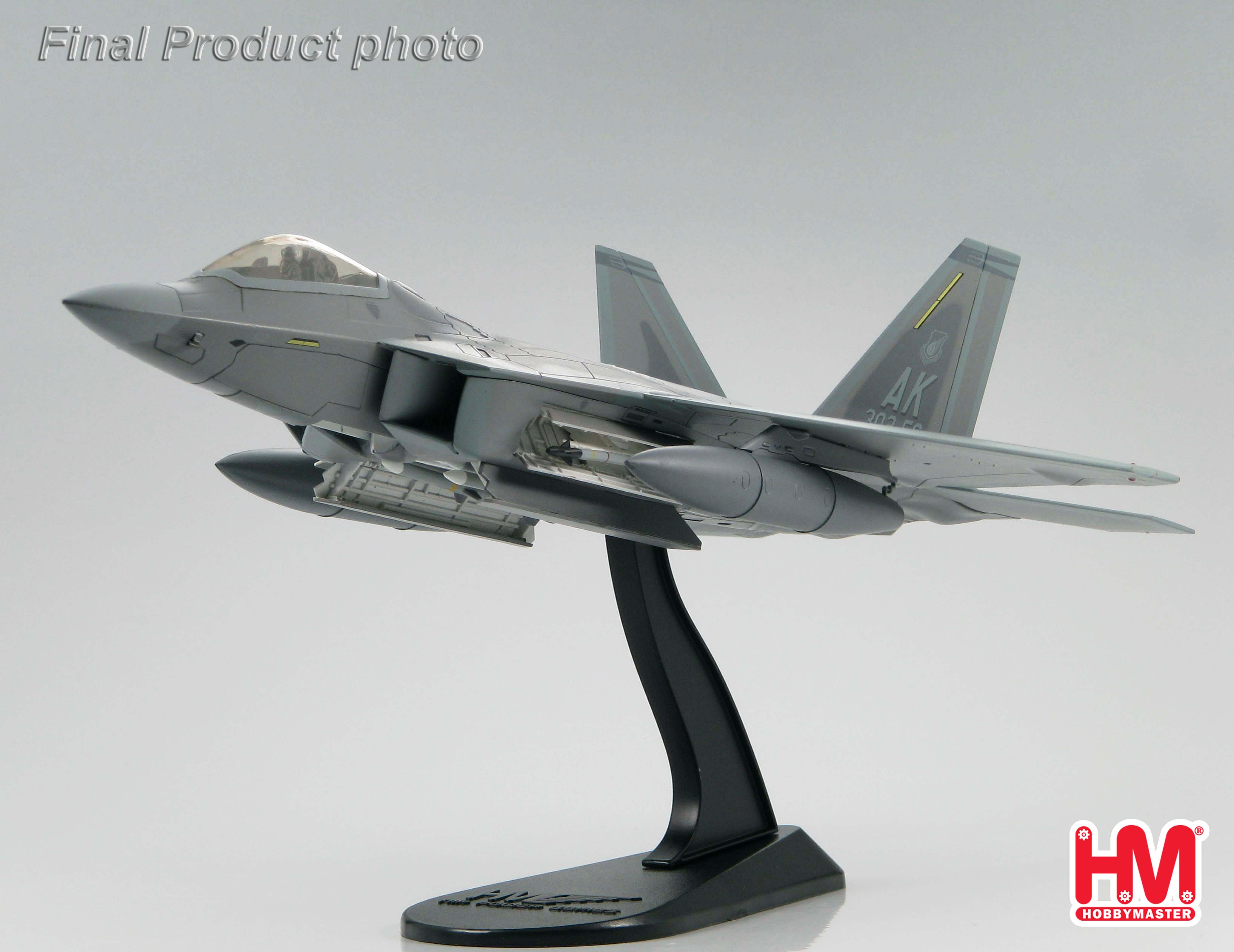

Option to display model with wheels up or down.
Minimum use of plastic.

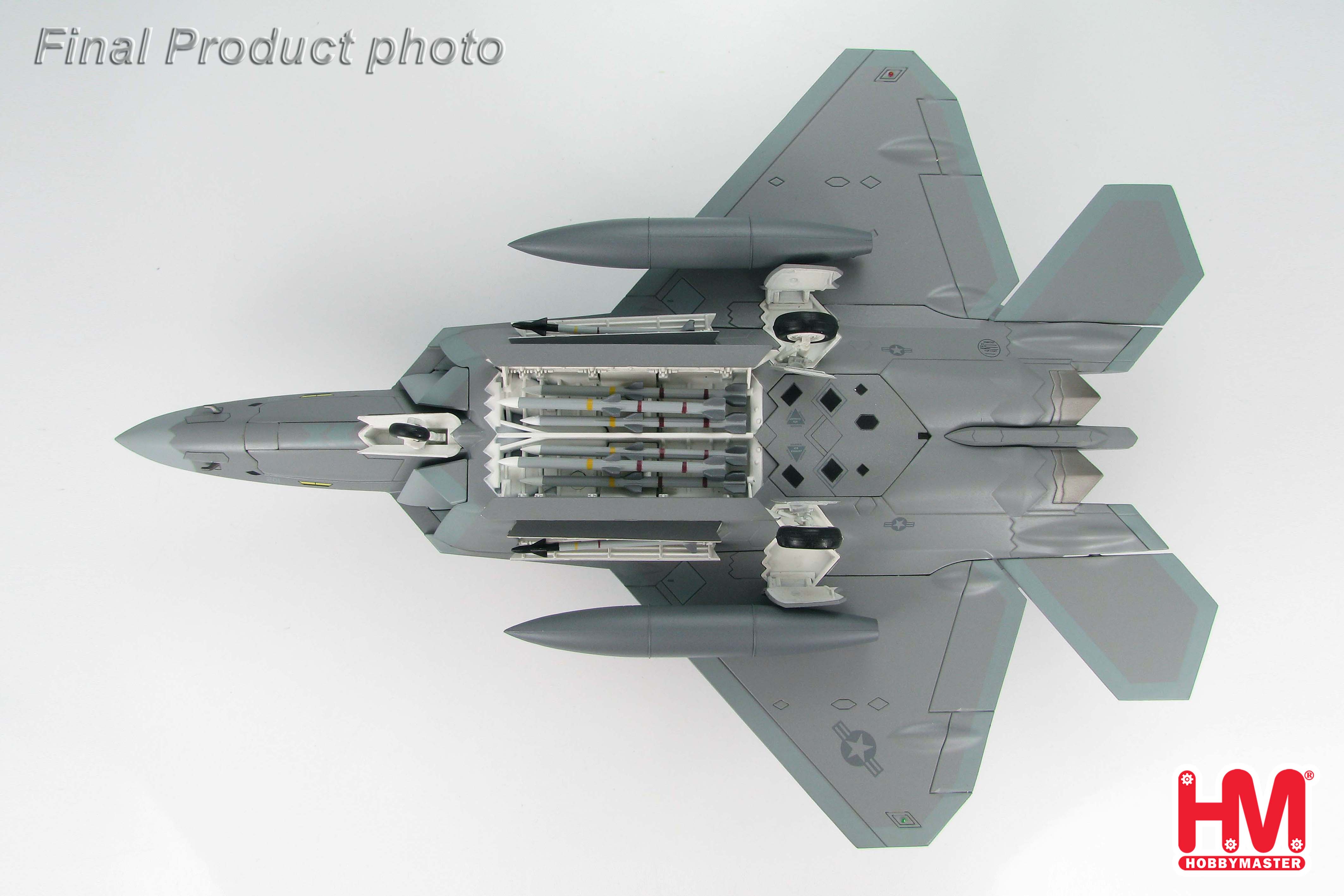

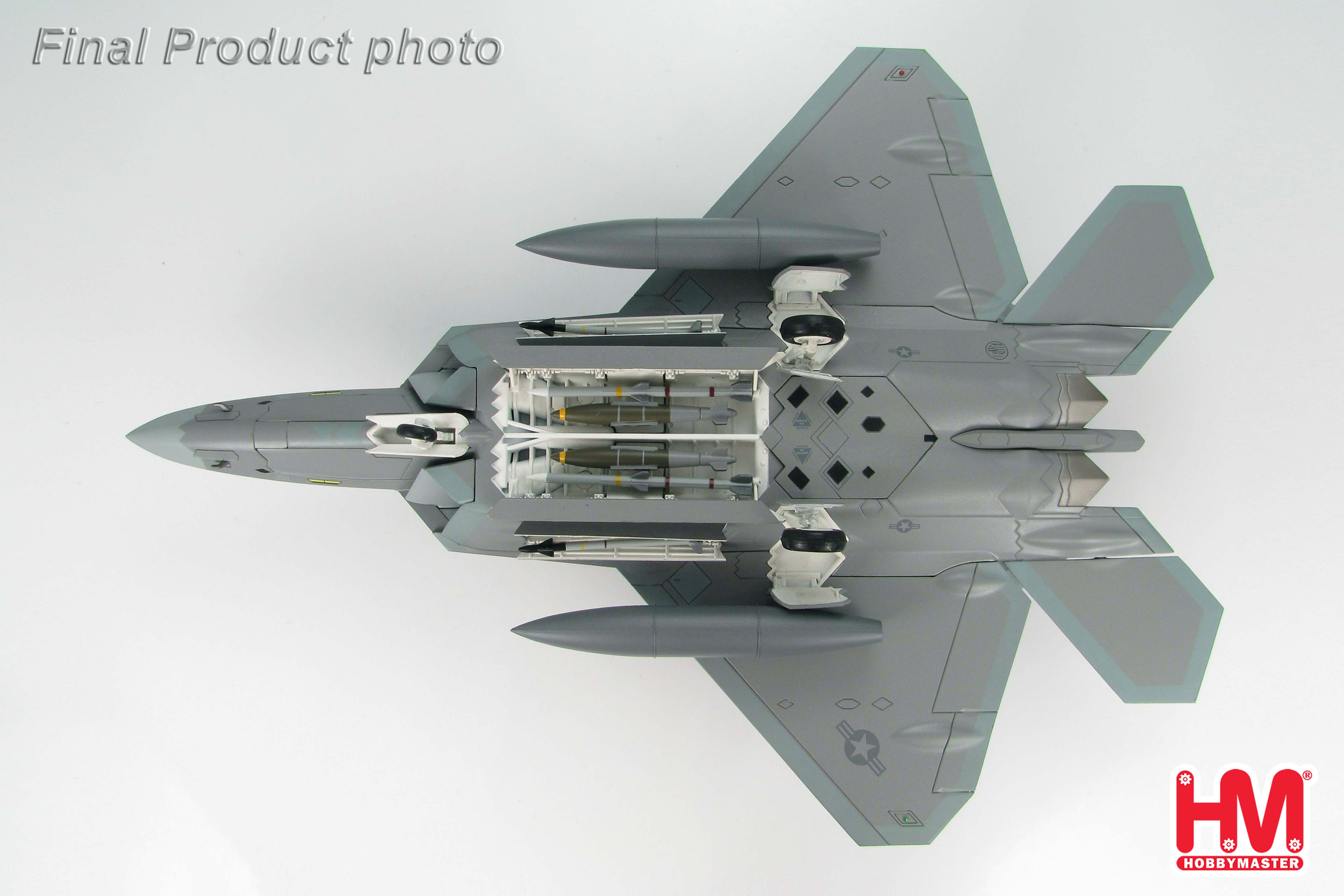

"interchangeable weapon bays (2 sidewinders, 6 AIM-120Cs)
realistic pilot figure"
