Diecast Aircraft Information  Diecast Aircraft Information MetalWings Diecast Aircraft Reference by Dauntless Aviation
During the 1980s General Dynamics, the developer of the F-16, proposed another
version of the F-16 called the F-16 Agile Falcon. The US military opted not to get
involved because they were busy upgrading their present fleet as well as developing
the  new F-22/JSF. Japan had decided to purchase the F-16 to replace its aging F-1
aircraft but then decided to develop the F-16 Agile Falcon concept. The new aircraft for
the JASDF (Japan Air Self Defense Force) would be the F-2 and manufactured with a
60/40 split between Mitsubishi Heavy Industries and Lockheed Martin. Lockheed Martin
bought General Dynamics in 1993. Production started in 1996 with the first aircraft being
delivered in 2000. 94 of the F-2 aircraft are scheduled to be manufactured. It might look
like an F-16 but the Mitsubishi F-2 is a completely new fighter. The general shape may
say F-16 and a few things that the F-2 and the F-16 have common are the engine,
landing gear, air intake door and the 20 mm gun. But the F-2 has a longer and wider
nose to accommodate phased-array radar with 25% larger wing. It is made from a
composite material to reduce weight and radar signature, a larger tail plane and larger
air intake. The pilot canopy is a stronger three-piece construction. The F-2 is equipped
with a drogue chute just like the NATO version of the F-16. The single seat fighter is the
F-2A while the two seat version (F-2B) is a trainer that is fully combat capable.


The 21st Squadron of the 4th Wing (21 Hikotai, 4 Kokudan) is based at Matsushima Air
Base in Miyagi Prefecture. It is a Flying Training Command unit that is part of the JASDF
system. The Flying Training Command is responsible for basic flying and technical
training. Originally there had been 47 F-2Bs ordered but that has been reduced as well
as the original 83 F-2As. F-2B c/n 3024 serial 33-8124 was received in January 2003
and wasn’t damaged by the tsunami as it was in Aichi for maintenance.


Specifications Mitsubishi F-2A & F-2B

Nickname - Viper Zero

Designation
F-2A - Single-seat Multi-role fighter
F-2B - Two-seat training version, fully combat capable

Performance
Powerplant: (1) General Electric F110-GE-129 turbofan
Dry thrust - 76 kN (17,000 lbf)
Thrust with afterburner - 131 kN (29,500 lbf)
Maximum speed - Mach 2.0
Range - 520 miles   (834 km) on anti-ship mission
Service ceiling - 59,000 ft   (18,000 m)

Dimensions
Length - 50 ft 11 in   (15.52 m)
Wingspan - 36 ft 6 in   (11.13 m)
Height - 15 ft 5 in   (4.69 m)
Wing area - 375 ft²   (34.84 m²)

Weights
Empty - 21,000 lb   (9,527 kg)
Loaded - 33,000 lb   (15,000 kg)
Max takeoff - 48,700 lb   (22,100 kg)

Armament
(1) 20 mm JM61A1 cannon
Capable of carrying up to 17,820 lb   (8,085 kg) weapon load on 11 hard points. They
are located - #1 and #11 at the wing tips, #2-5 and #7-10 under the wings, and #6 under
the fuselage.
Possible Weapons
Air-to-air - AIM-9 Sidewinder, AIM-7 Sparrow, Mitsubishi AAM-3, Mitsubishi AAM-4
Air-to-ground - ASM-1 and ASM-2 anti-ship missiles.
Various free-fall bombs with GCS-1 IIR seeker heads, Mk 82 and JM177 bombs
CBU-87, JDAM and JLAU-3/A or RL-4 rocket pods.
Others - J/AAQ-2 FLIR

Avionics
Mitsubishi Active Electronically Scanned Array radar system including J/APG-1.
Some differences between the F-2 and the F-16
F-2 has a 25% larger wing area.
F-2 is manufactured using composite materials to reduce overall weight and radar
signature.
F-2 is longer and wider nose to accommodate phased-array radar.
F-2 has a larger tail-plane.
F-2 has a larger air intake.
F-2 has a three-piece cockpit canopy.
F-2 is equipped with a drogue parachute.

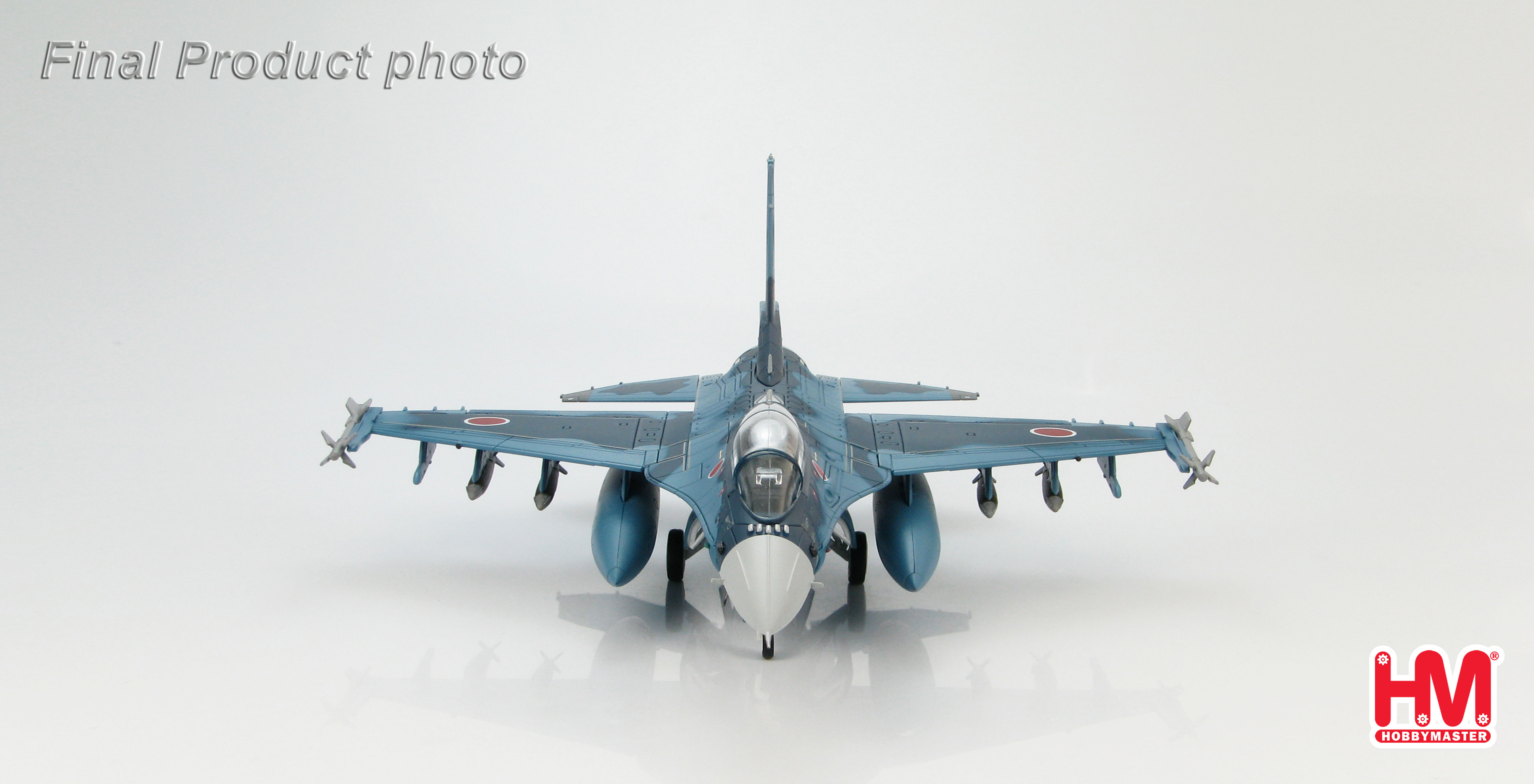

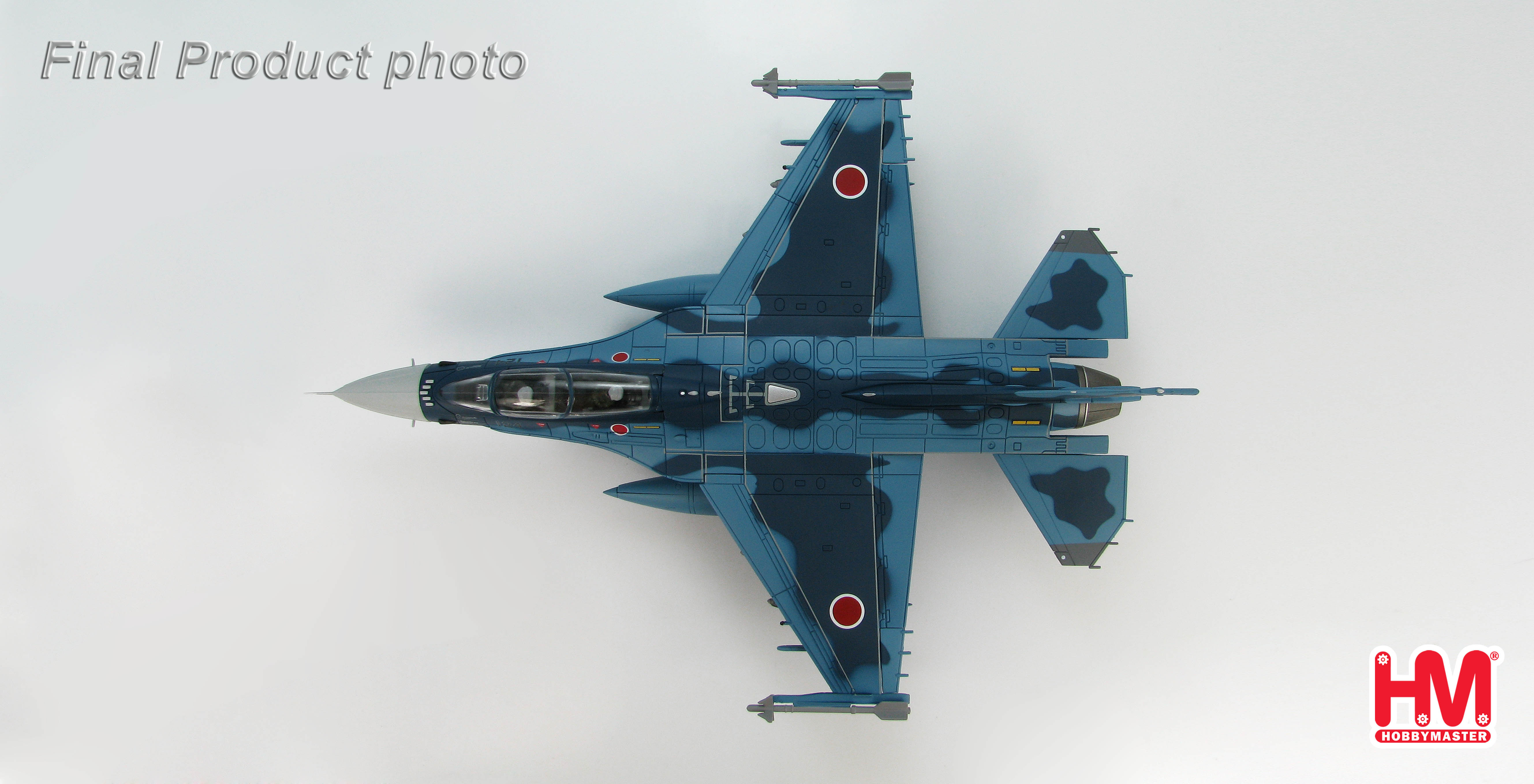

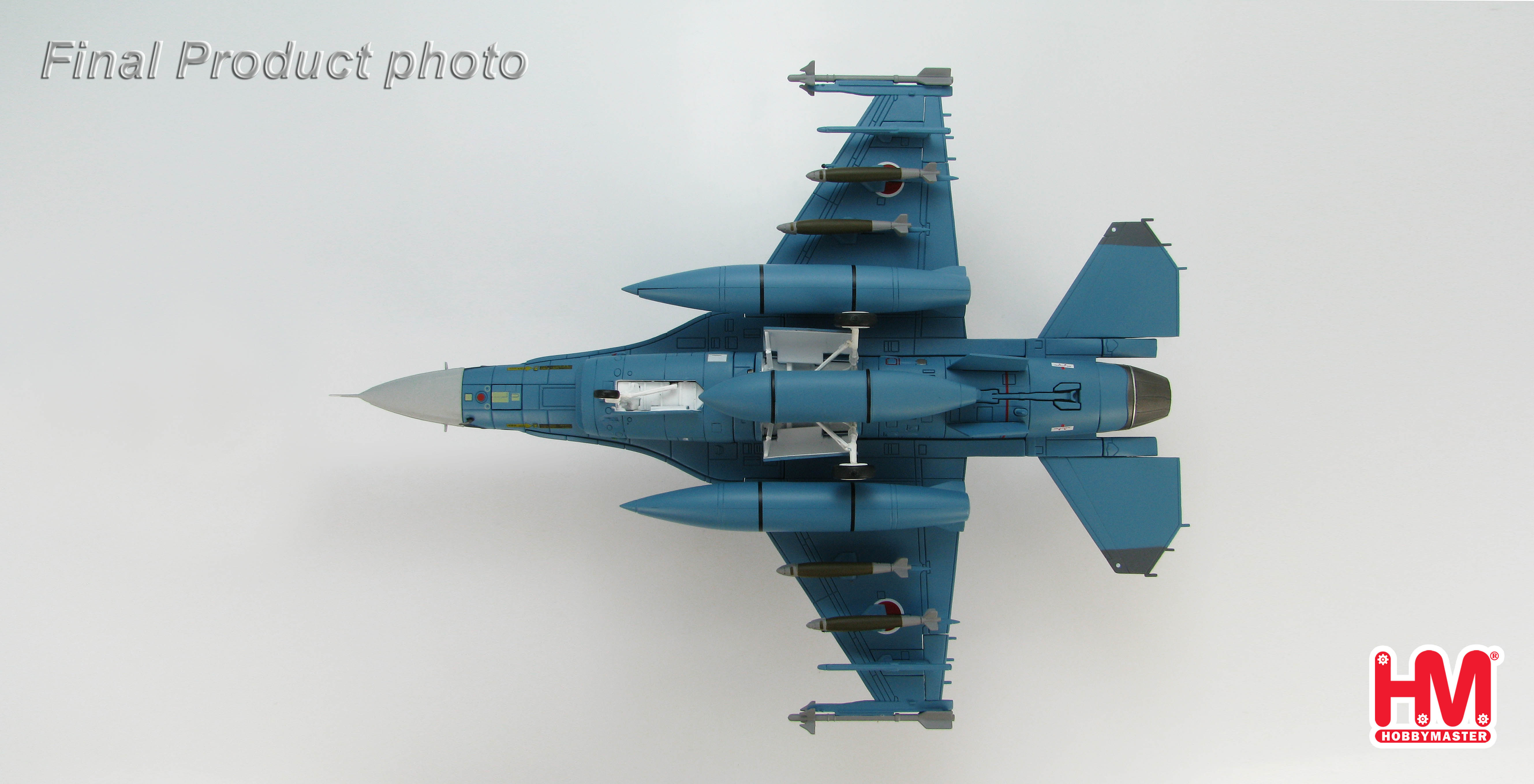

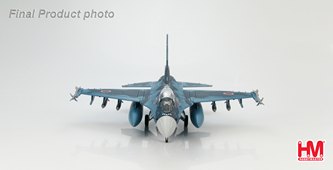

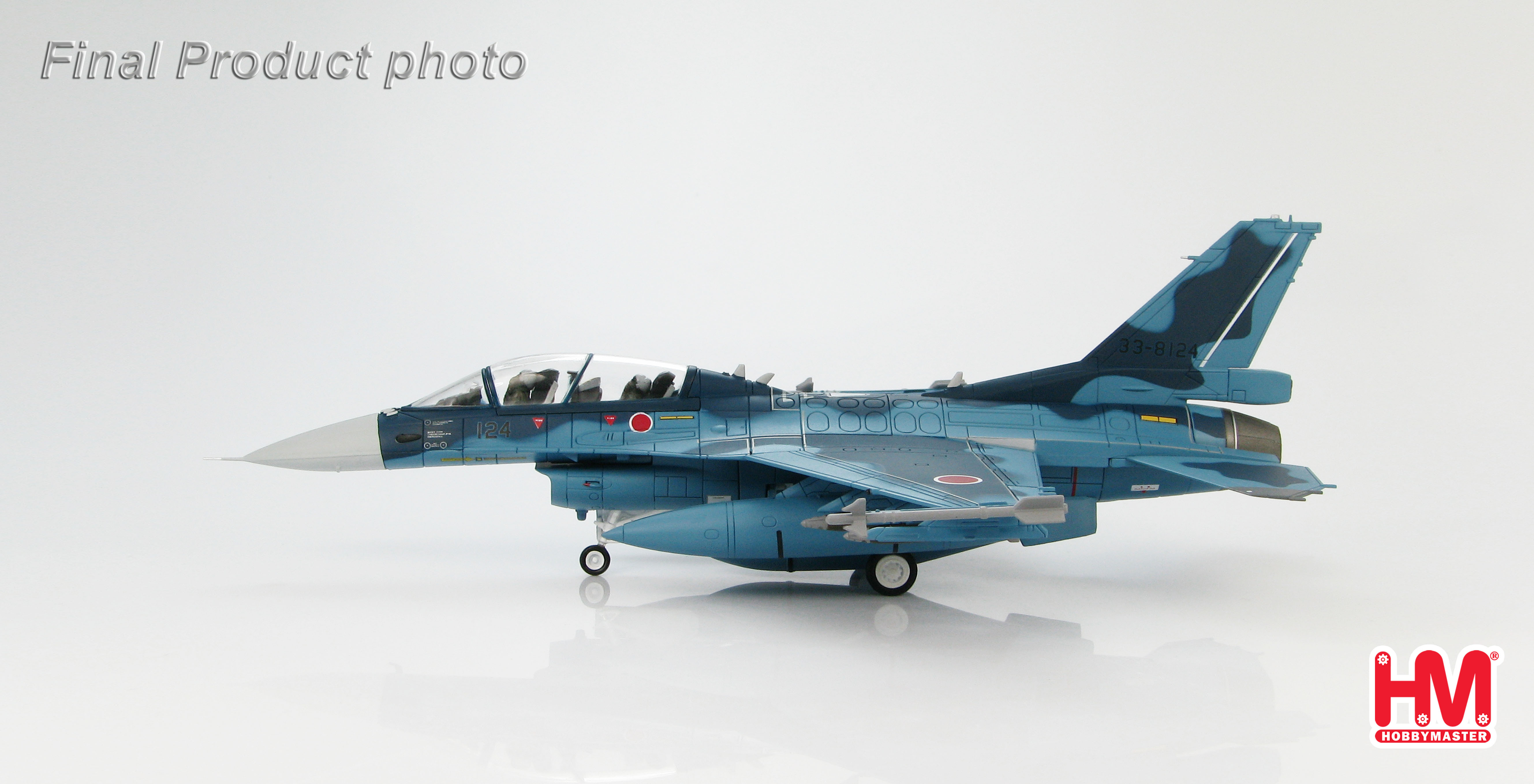

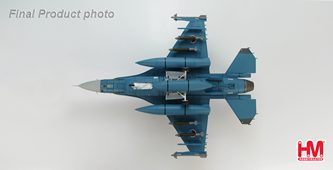

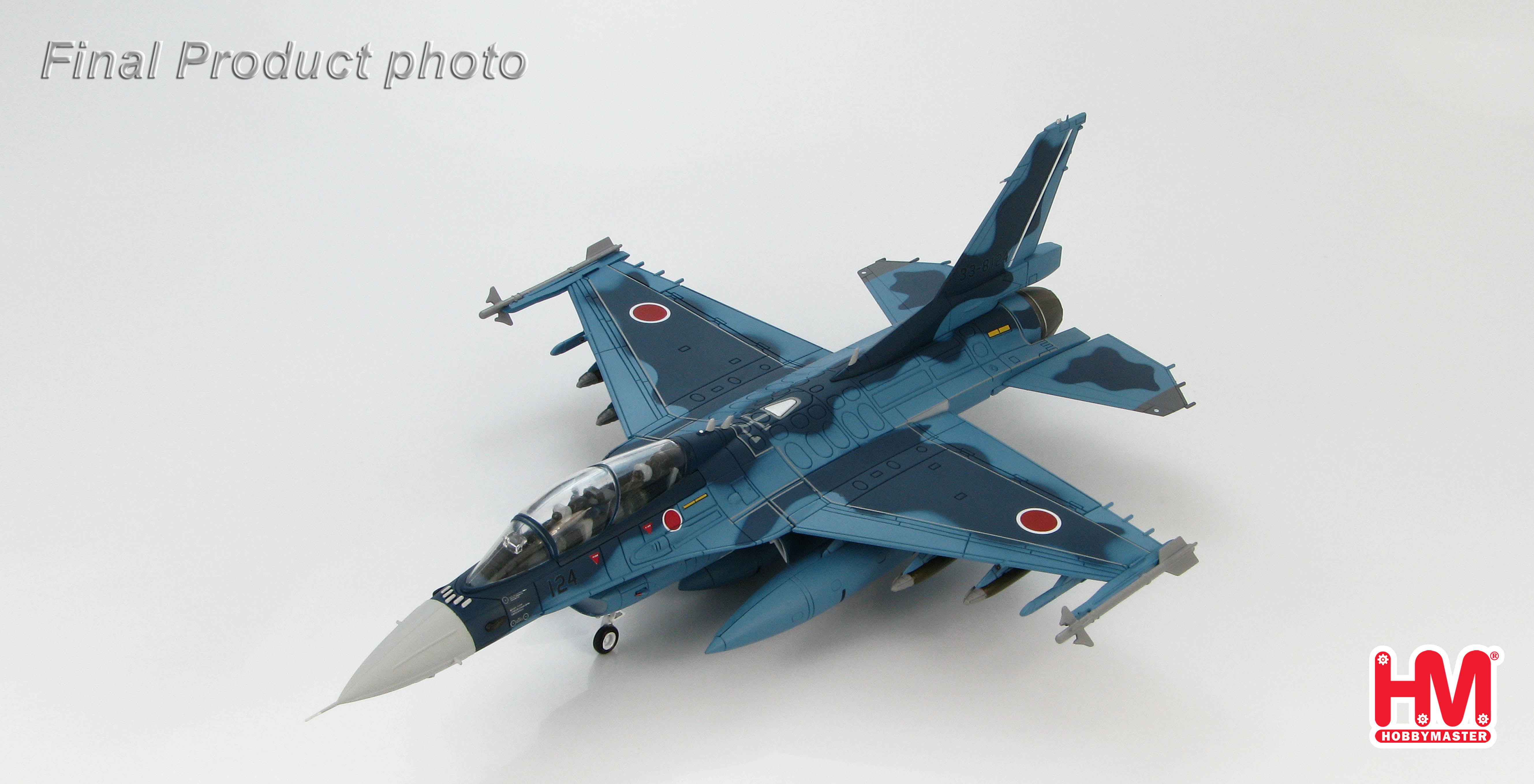

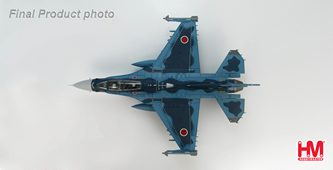

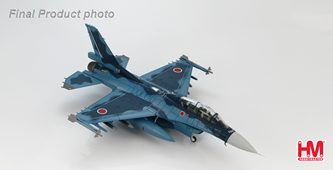

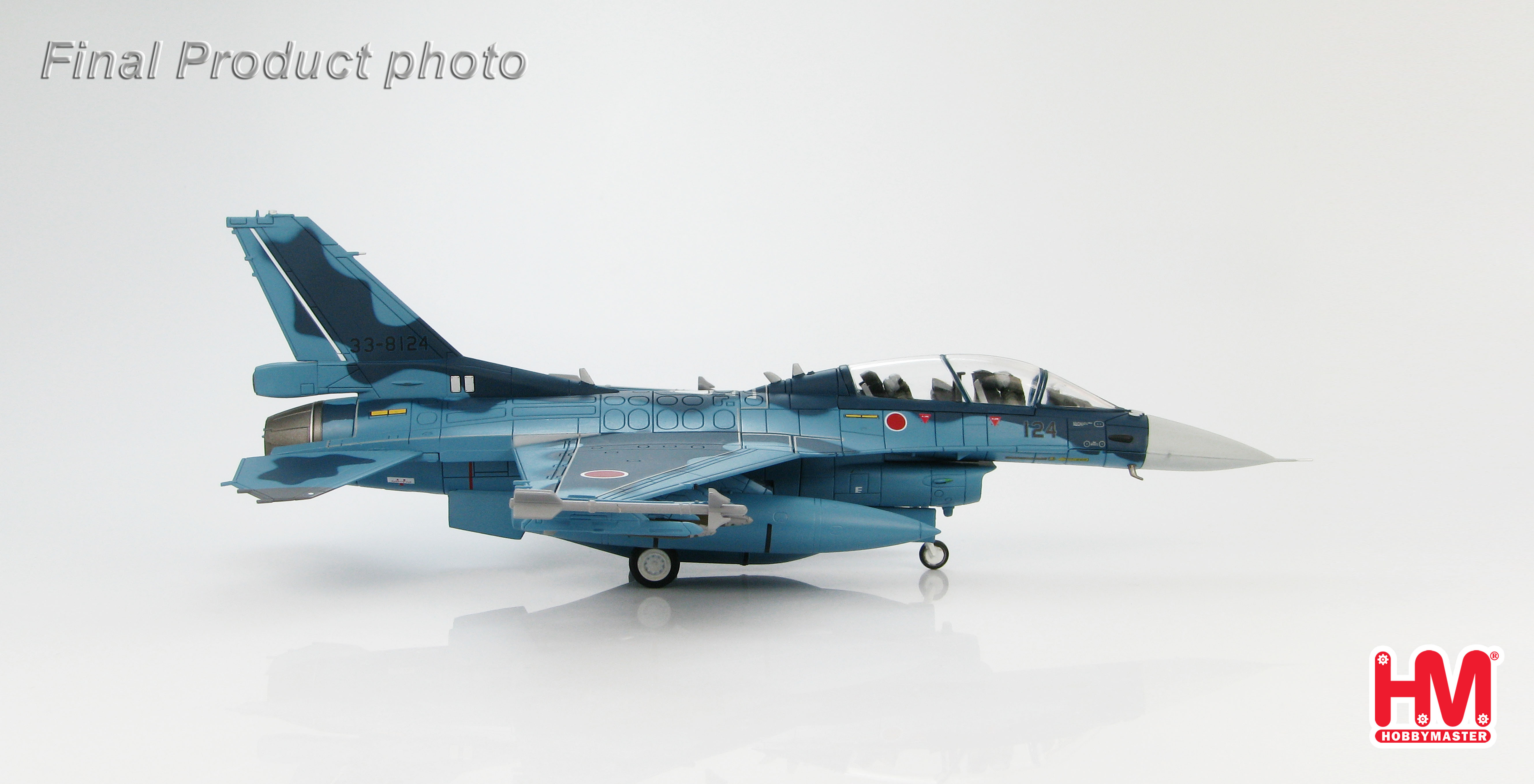

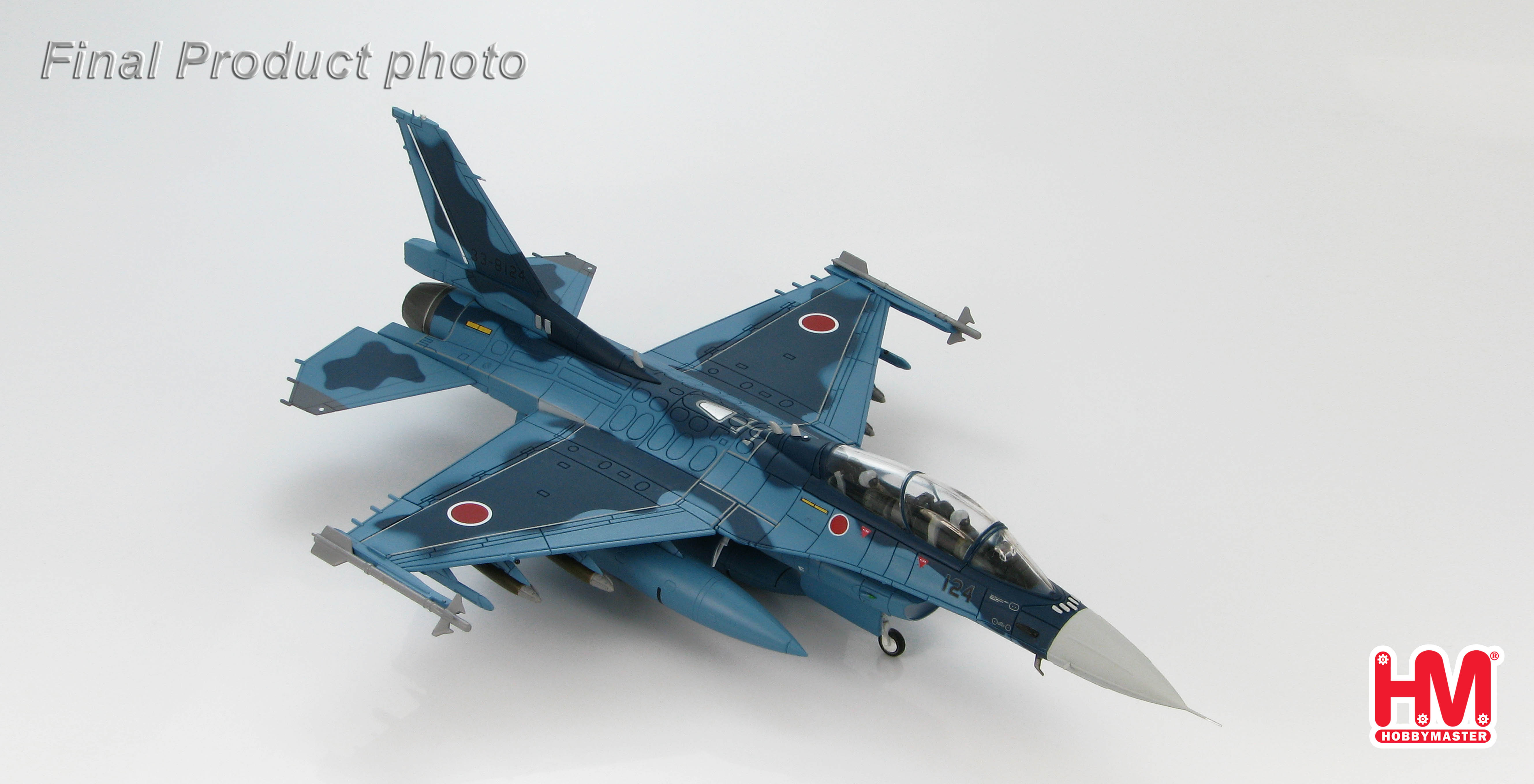

Hobby Master 1/72 Air Power Series
HA2710
Japan F-2B
33-8124, 21st Squadron JASDF, April 2012
Superb detailing in 1/72 scale.
Pre-painted with pad applied markings.
Fully assembled.
Comes with 4 GBU-38 smart bombs.
Weapons that are not permanently attached.
Comes with crew figures
Display stand included.
Option to display model with wheels up or down.
Minimum use of plastic.
