Hobby Master 1/72 Air Power Series

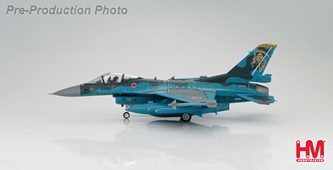

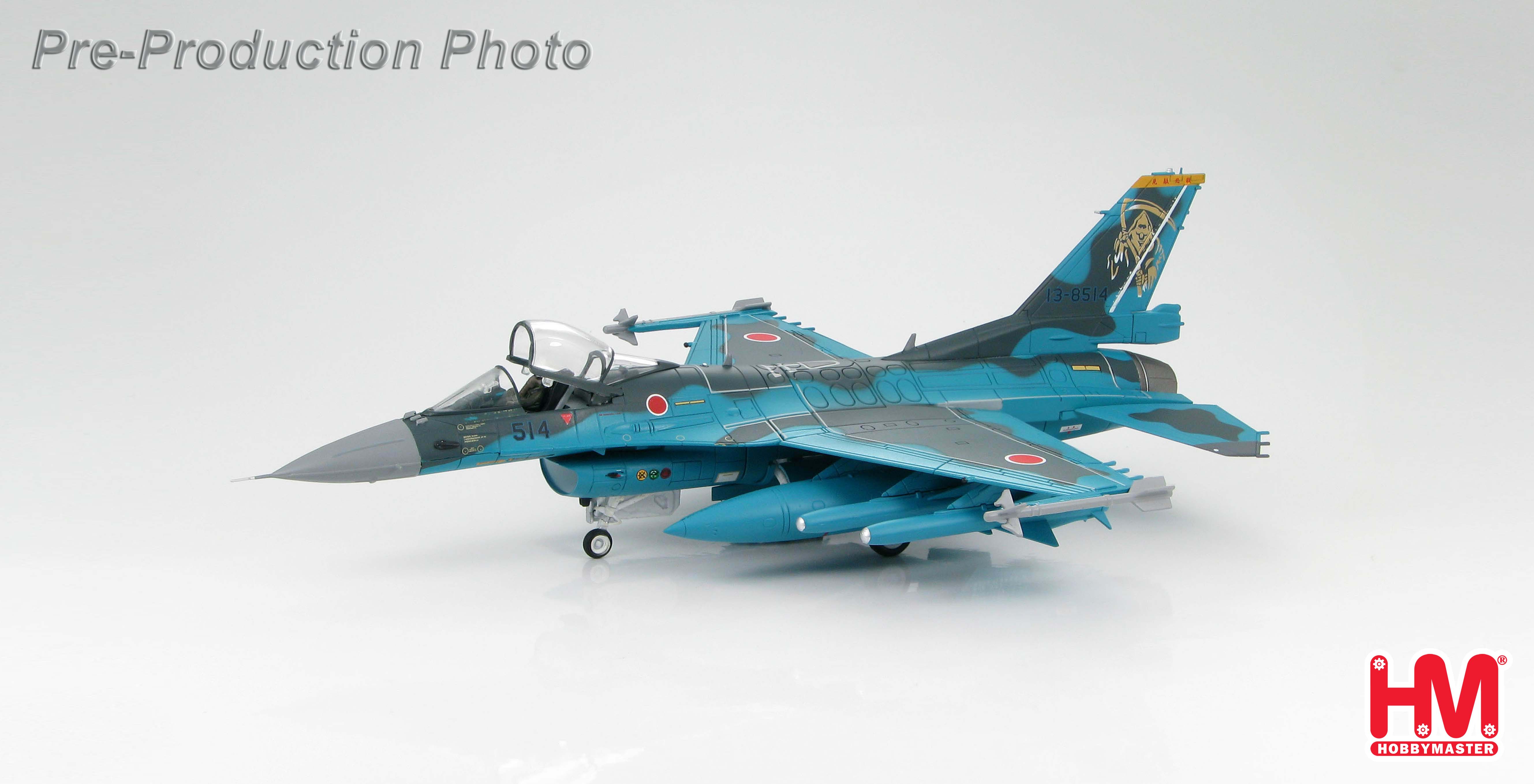

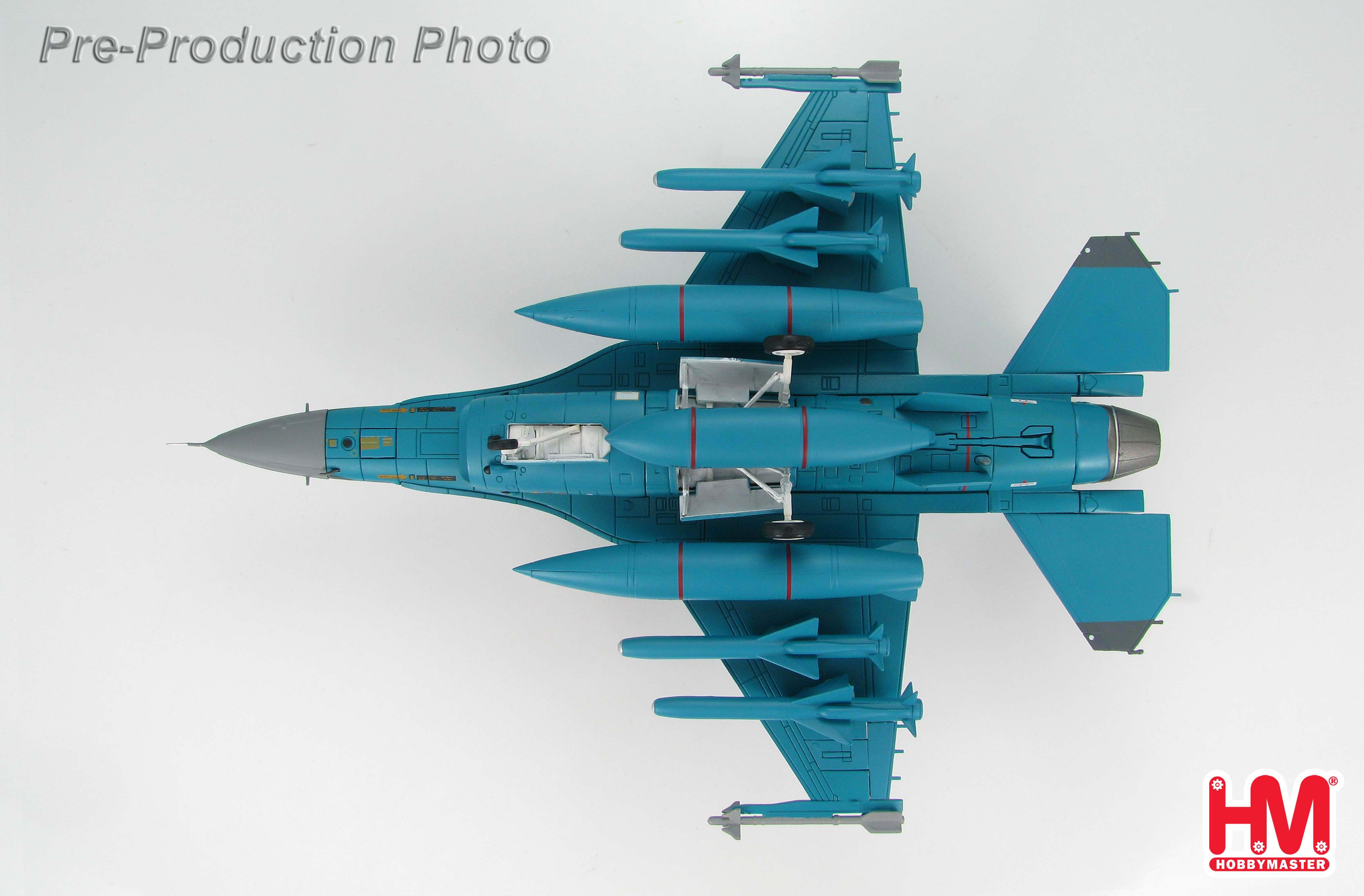

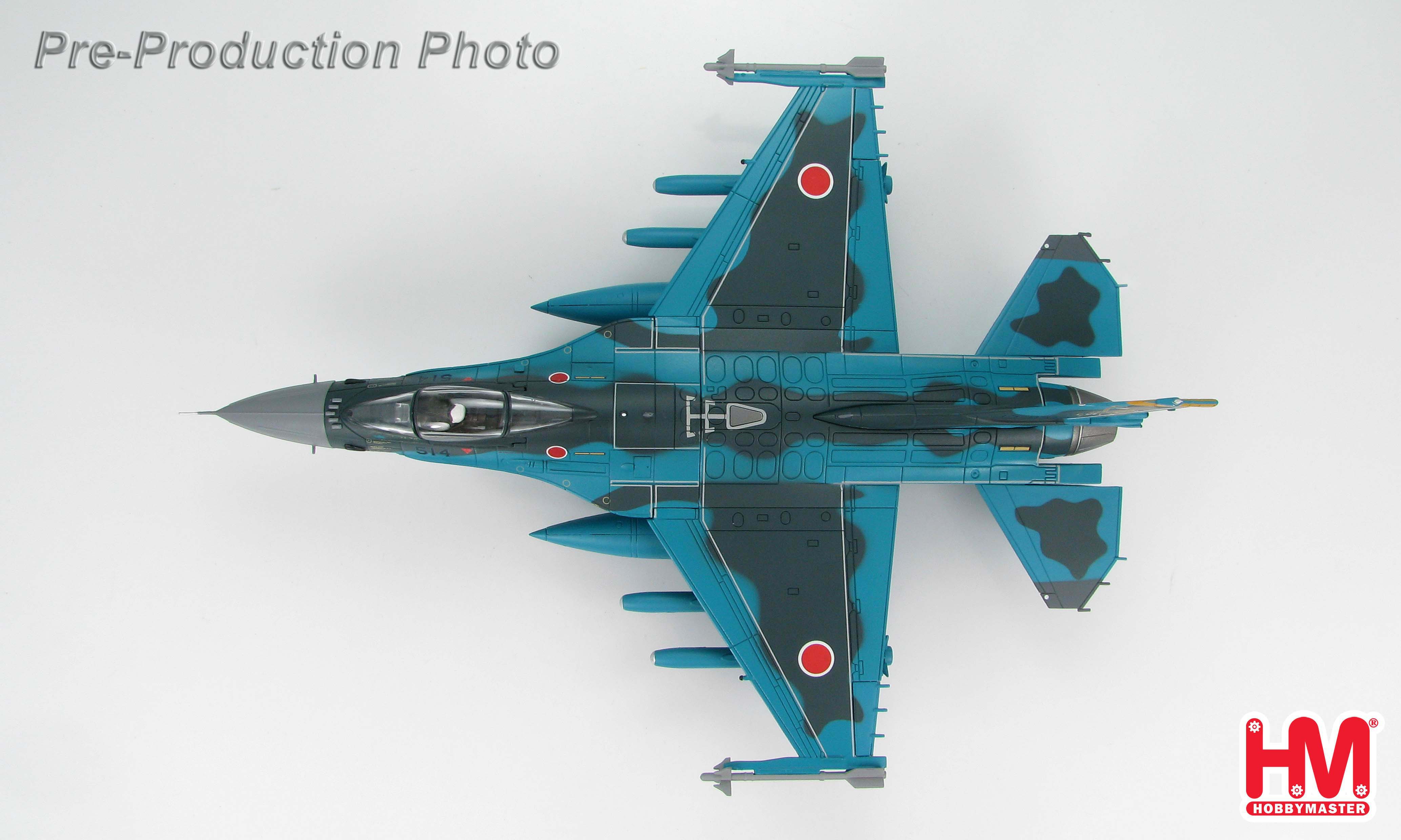

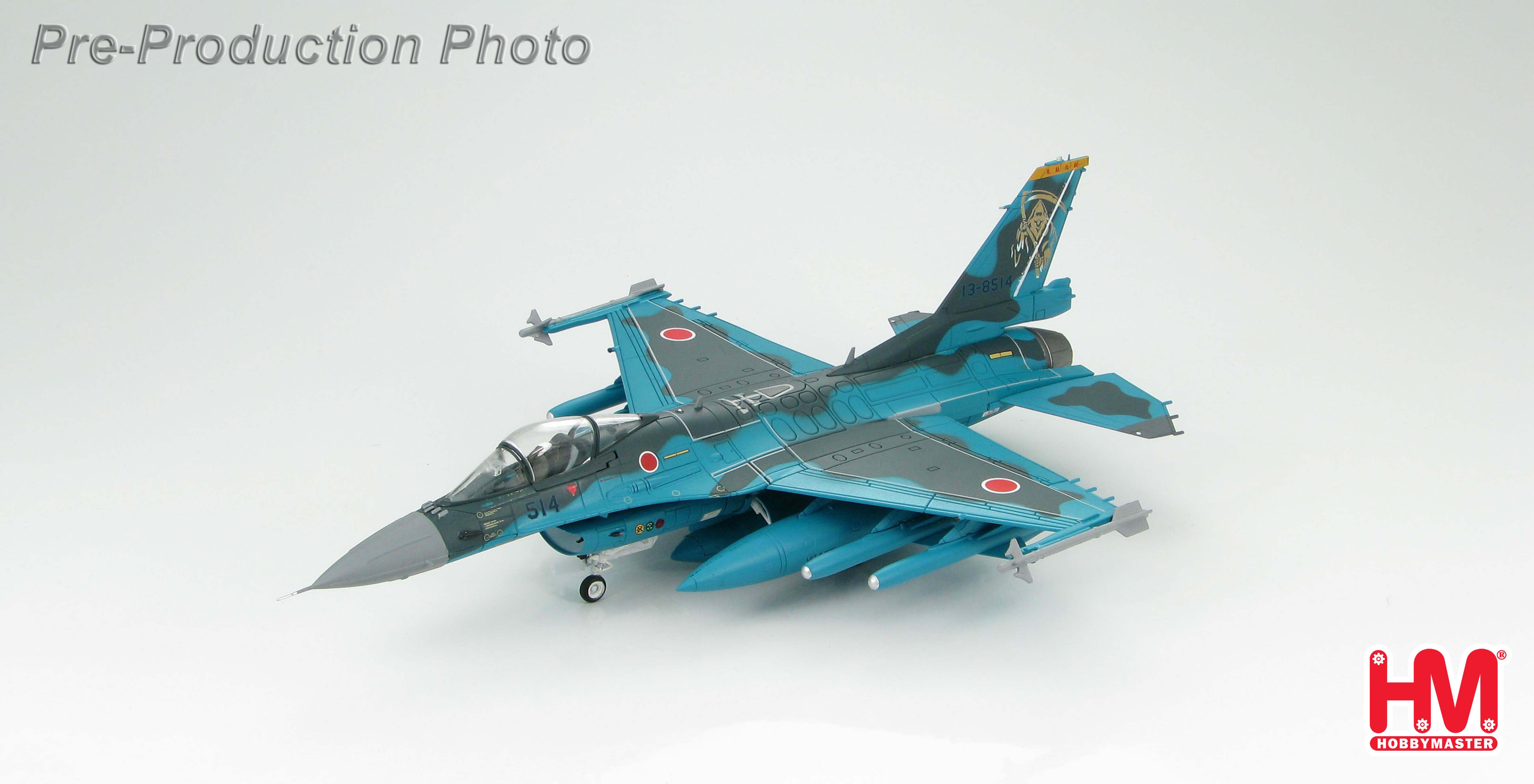

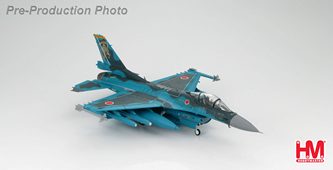

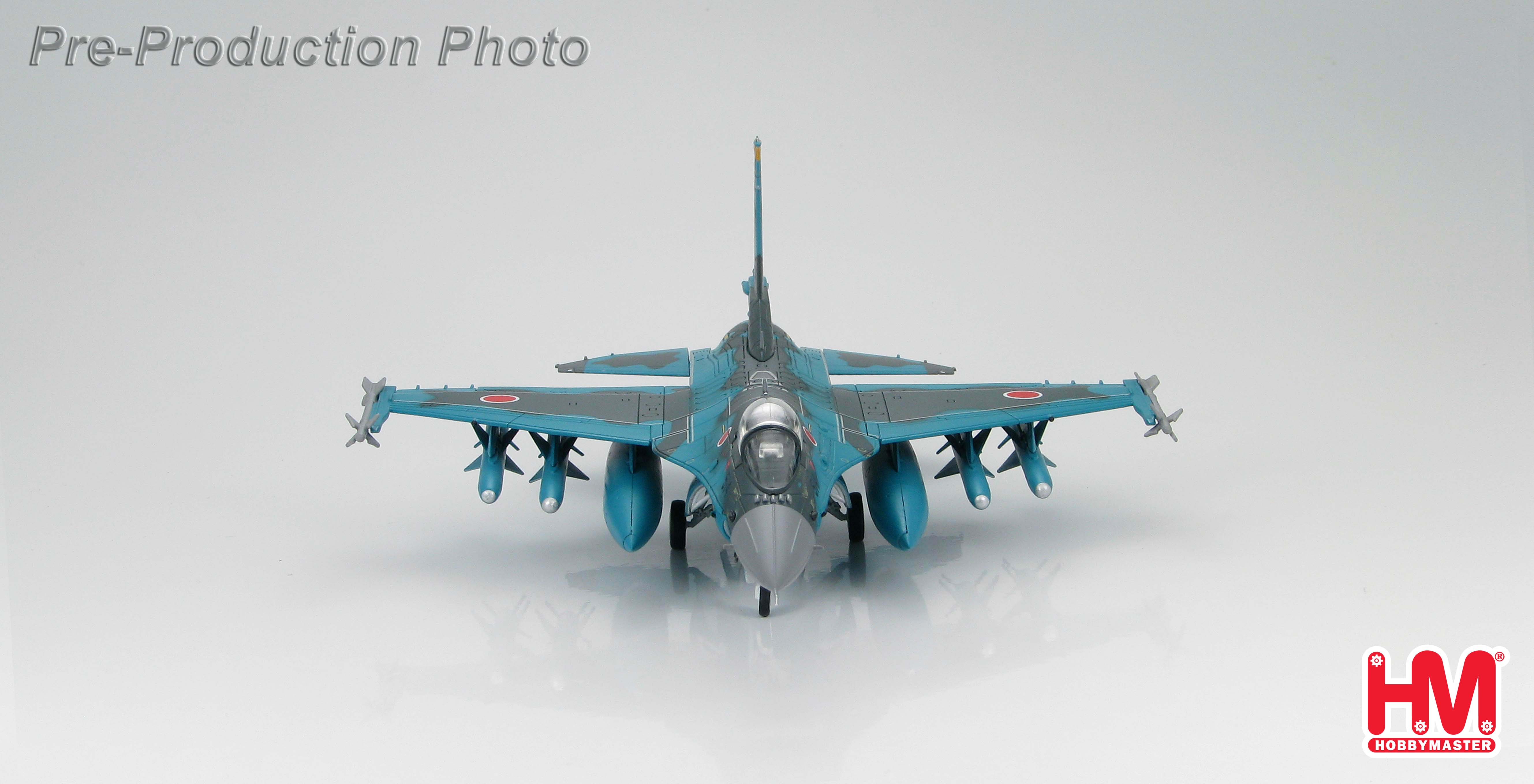

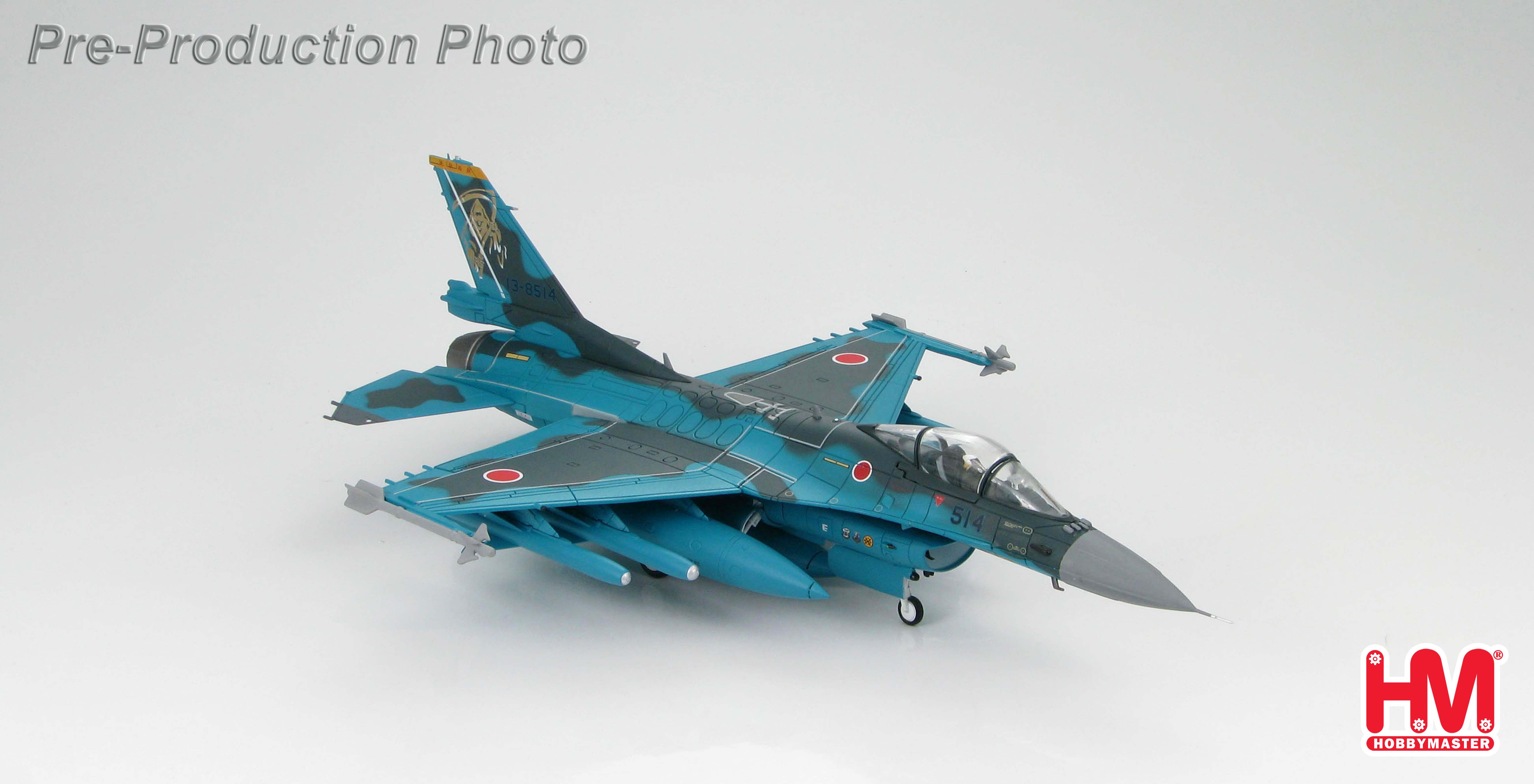

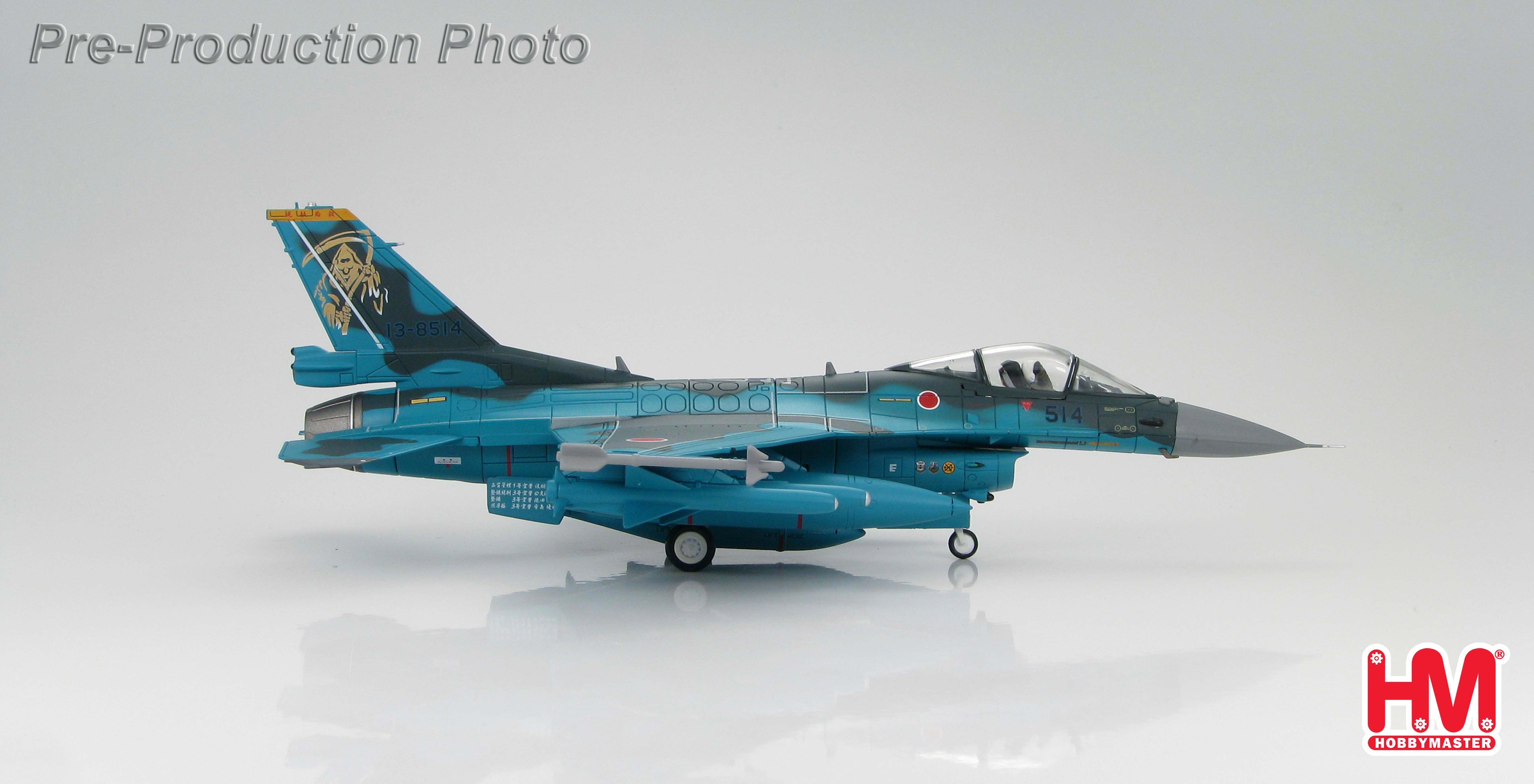

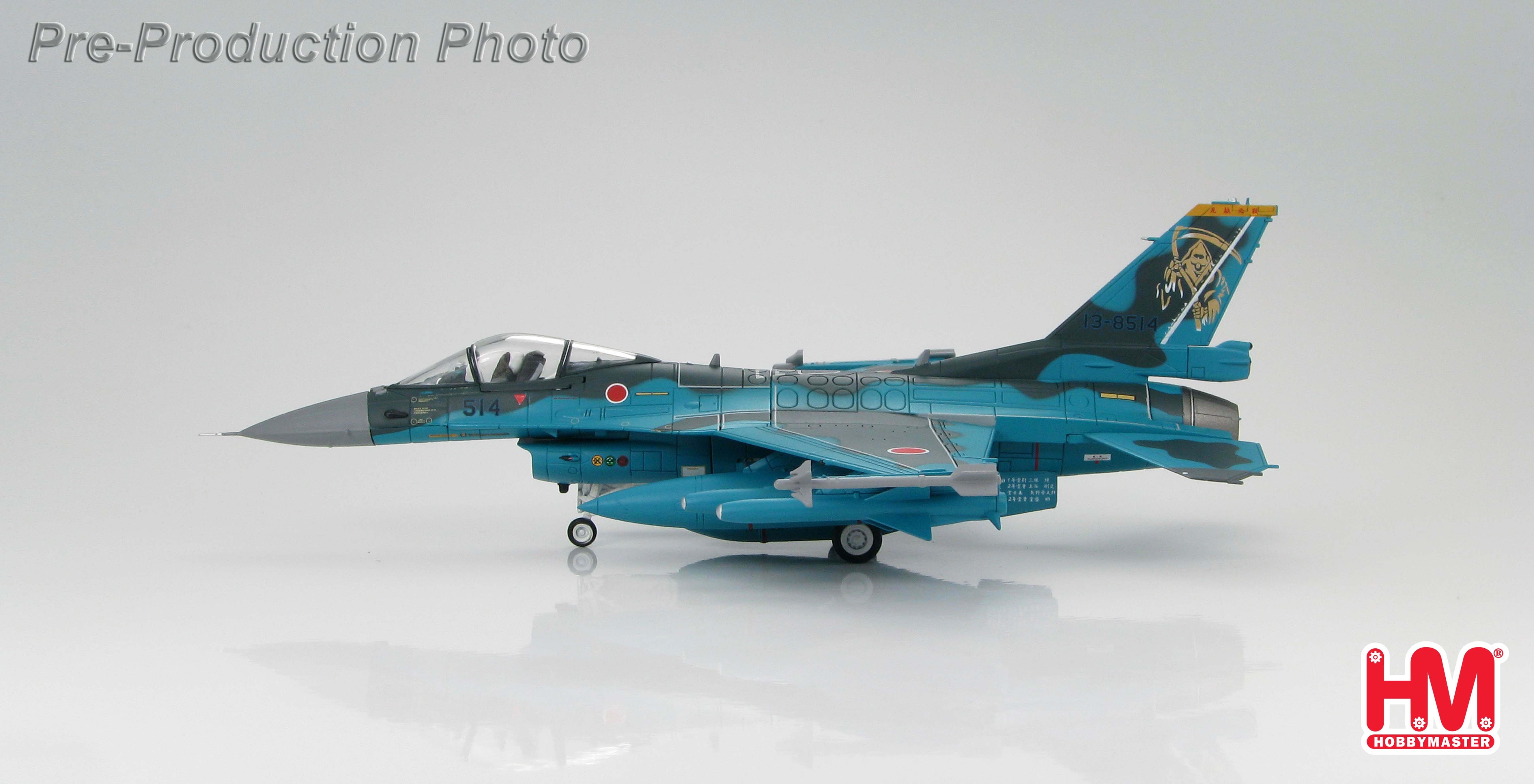

HA2705
Mitsubishi F-2A
6th SQ, 8th AW., JASDF, Tsuiki A.B.
"Air Combat Meet 2009"
"Grim Reaper"
Die-cast metal.
Superb detailing in 1/72 scale.
Pre-painted with pad applied markings.
Fully assembled.
Weapons that are not permanently attached.
Comes with crew figures

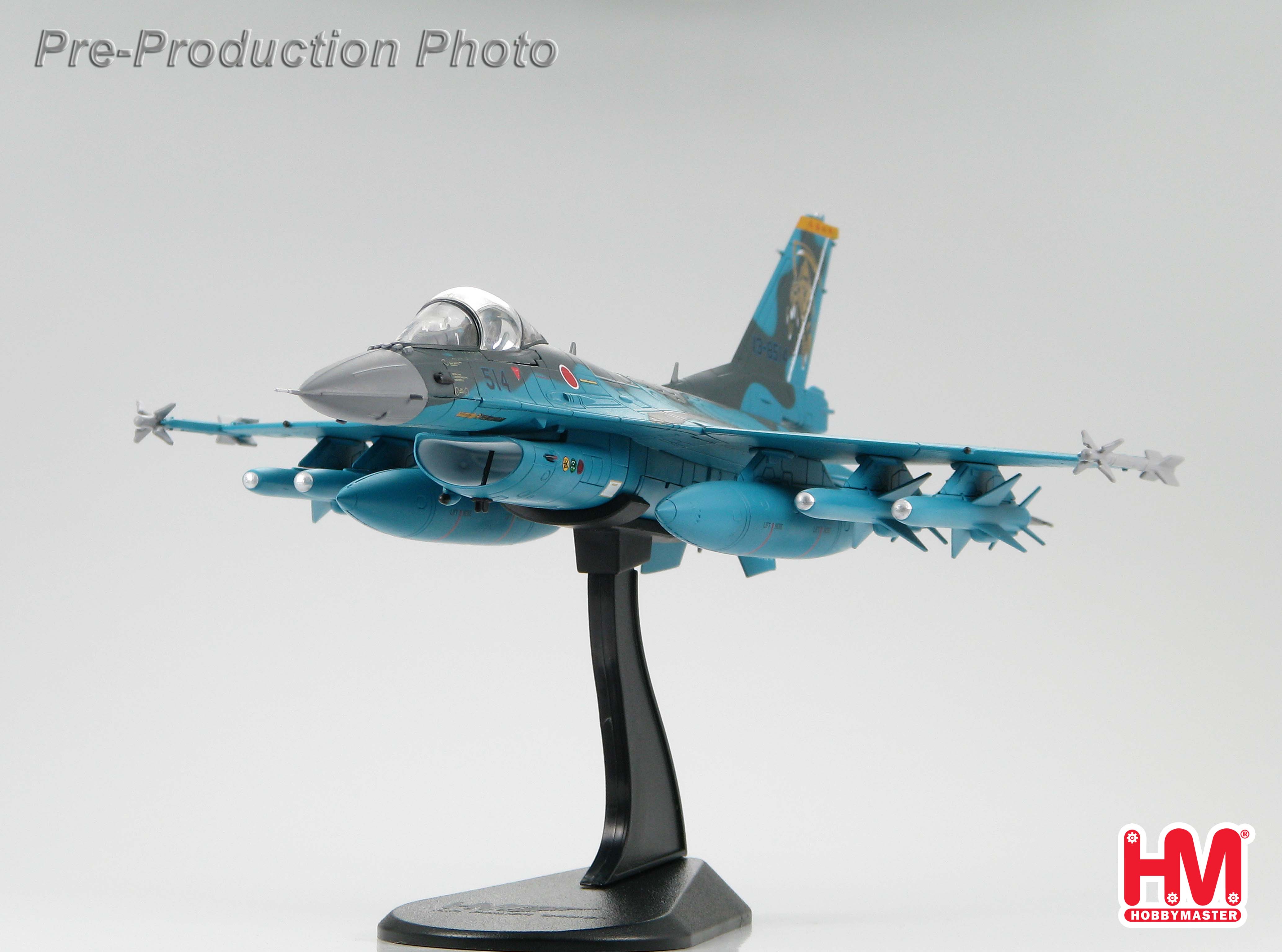

Display stand included.
Option to display model with wheels up or down.
Minimum use of plastic.


Specifications Mitsubishi F-2A
Nickname - Viper Zero
Designation - Single-seat Multi-role fighter
Crew - 1 (or 2 for the F-2B)
Performance
Powerplant: (1) General Electric F110-GE-129 turbofan
Dry thrust - 76 kN (17,000 lbf)
Thrust with afterburner - 131 kN (29,500 lbf)
Maximum speed - Mach 2.0
Range - 520 miles   (834 km) on anti-ship mission
Service ceiling - 59,000 ft   (18,000 m)
Dimensions
Length - 50 ft 11 in   (15.52 m)
Wingspan - 36 ft 6 in   (11.13 m)
Height - 15 ft 5 in   (4.69 m)
Wing area - 375 ft²   (34.84 m²)
Weights
Empty - 21,000 lb   (9,527 kg)
Loaded - 33,000 lb   (15,000 kg)
Max takeoff - 48,700 lb   (22,100 kg)
Armament
(1) 20 mm JM61A1 cannon
Capable of carrying up to 17,820 lb   (8,085 kg) weapon load on 11 hard points. They
are located - #1 and #11 at the wing tips, #2-5 and #7-10 under the wings, and #6 under
the fuselage.
Possible Weapons
Air-to-air - AIM-9 Sidewinder, AIM-7 Sparrow, Mitsubishi AAM-3, Mitsubishi AAM-4
Air-to-ground - ASM-1 and ASM-2 anti-ship missiles.
Various free-fall bombs with GCS-1 IIR seeker heads, Mk 82 and JM177 bombs,
CBU-87, JDAM and JLAU-3/A or RL-4 rocket pods.
Others - J/AAQ-2 FLIR
Avionics
Mitsubishi Active Electronically Scanned Array radar system including J/APG-1.
Some differences between the F-2A and the F-16
F-2A has a 25% larger wing area.
F-2A is manufactured using composite materials to reduce overall weight and radar
signature.
F-2A is longer and wider nose to accommodate phased-array radar.
F-2A has a larger tail-plane.
F-2A has a larger air intake.
F-2A has a three-piece cockpit canopy.

F-2A is equipped with a drogue parachute.
During the 1980s General Dynamics, the developer of the F-16, proposed another
version of the F-16 called the F-16 Agile Falcon. The US military opted not to get involved
because they were busy upgrading their present fleet as well as developing the new F-
22/JSF. Japan had decided to purchase the F-16 to replace its aging F-1 aircraft but then
decided to develop the F-16 Agile Falcon concept. The new aircraft for the JASDF (Japan
Air Self Defense Force) would be the F-2 and manufactured with a 60/40 split between
Mitsubishi Heavy Industries and Lockheed Martin. Lockheed Martin bought General
Dynamics in 1993. Production started in 1996 with the first aircraft being delivered in
2000. 94 of the F-2 aircraft are scheduled to be manufactured. It might look like an
F-16 but the Mitsubishi F-2 is a completely new fighter. The general shape may say F-16
and a few things that the F-2 and the F-16 have common are the engine, landing gear, air
intake door and the 20 mm gun. But the F-2 has a longer and wider nose to
accommodate phased-array radar with 25% larger wing. It is made from a composite
material to reduce weight and radar signature, a larger tail plane and larger air intake.
The pilot canopy is a stronger three-piece construction. The F-2 is equipped with a
drogue chute just like the NATO version of the F-16. The single seat fighter is the F-2A
while the two seat version is a trainer that is fully Combat capable.




The Japan Air Self-Defense Force is the aviation branch of the Japan Self-Defense
Force. The JASDF is tasked with the defense of Japanese airspace that is divided into 4
sectors or regions. The Western Air Defense Force regional headquarters are located in
Kasuga, Fukuoka Prefecture. The WADF is comprised of the 5th AW located at
Nyutabaru AB, 8th AW located at Tsuiki AB, Western Aircraft Control & Warning Wing
and the 2nd Air Defense Missile Group. The 8th Air Wing is comprised of the 6th
Squadron that is equipped with F-2 aircraft and 304th Squadron flying F-15. Tsuiki AB is
also home to the 2nd Air Defense Missile Group.
From May 26 - 29, 2009 the JASDF Air Command held their war technique competition,
very similar to “Tiger Meets”. It is various teams competing in aircraft against aircraft
mock dog fights and attacks on ground targets to determine the proficiency of the pilot
and aircraft. In 2009 3 F-2’s from Tsuiki AB attended the meet that took place near
Shikoku Island. At the closing of the competition they determine the best pilot and best
team.
