Diecast Aircraft Information  Diecast Aircraft Information MetalWings Diecast Aircraft Reference by Dauntless Aviation
Specifications for the AV-8B+ (Harrier II Plus)

Developed by - Boeing, BAE Systems, and Rolls Royce

Operators – USMC, Italian Navy, Spanish Navy

Crew – (1) pilot

Performance
Powerplant – (1) Rolls-Royce Pegasus 11-61 (F402-RR-408) (Mk 105) vectored-thrust
turbofan engine,
23,500 lbf (105 kN)
Maximum speed @ sea level - .89 Mach   (662 mph)   (1,070 km/h)
Range – 1,200 nm   (1,400 mi)   (2,200 km)
Combat radius - 300 nmi   (556 km)
Ferry range - 1,800 nmi   (3,300 km)
Rate of climb - 14,700 ft/min   (4,485 m/min)

Dimensions
Length - 46 ft 4 in   (14.12 m)
Wingspan - 30 ft 4 in   (9.25 m)
Height - 11 ft 8 in   (3.55 m)
Wing area - 243.4 ft²   (22.61 m²)

Weight
Empty - 13,968 lb   (6,340 kg)
Loaded - 22,950 lb   (10,410 kg)
Max takeoff –
Rolling /  31,000 lb   (14,100 kg)
Vertical /  20,755 lb   (9,415 kg)


Armament
Guns – (1) X GAU-12U "Equalizer" 25 mm (0.98 in) cannon with 300 rounds of
ammunition.
Hardpoints – (7)  capable of carrying up to 13,200 lb (STOVL) of ordnance such as iron
bombs, cluster bombs, napalm canisters, laser-guided bombs, AGM-65 Maverick or
AGM-84 Harpoon missiles, Sea Eagle missiles, a LITENING targeting pod, up to (4) AIM-
9 Sidewinder or similar-sized infrared-guided missiles, up to (4) AIM-120 AMRAAM
missiles, as well as new “Smart Weapons” such as JDAM (Joint Direct Attack Munition).

Avionics
Raytheon APG-65 pulse Doppler radar

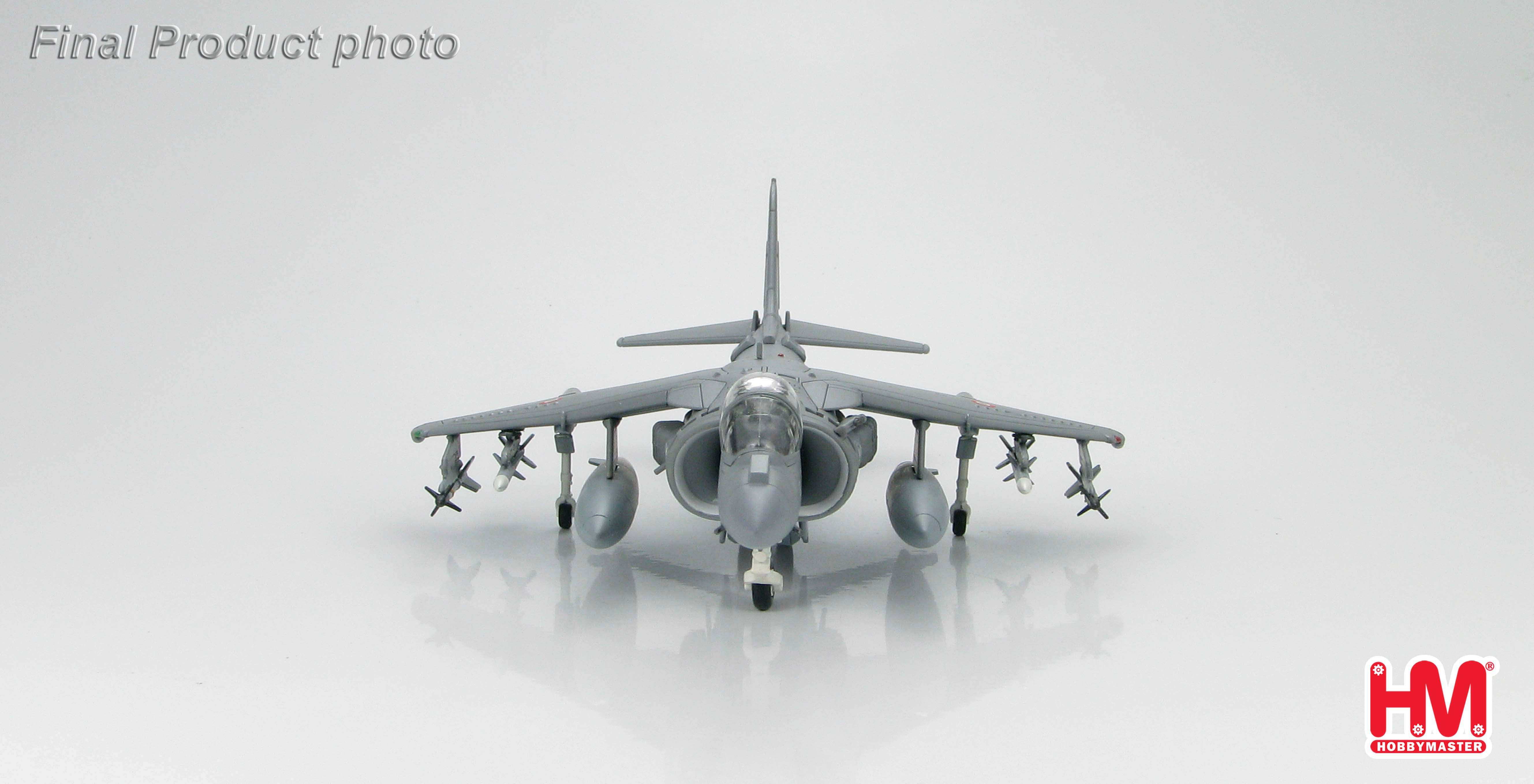

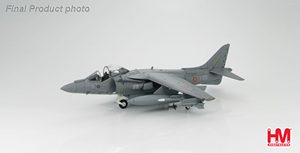

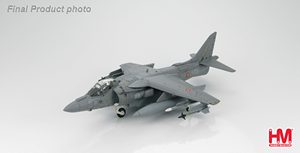

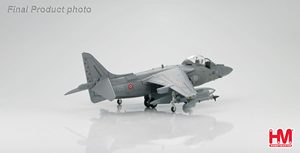

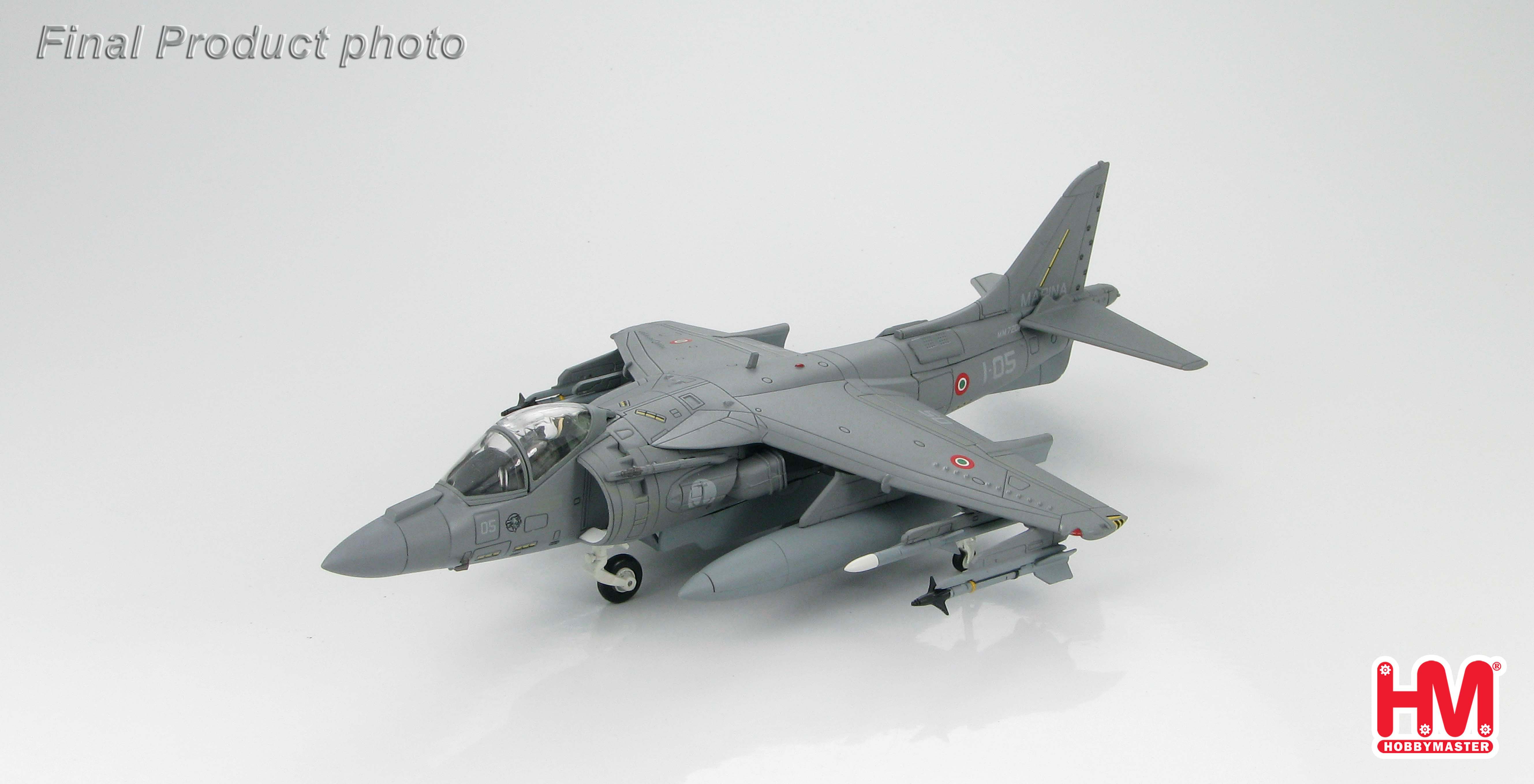

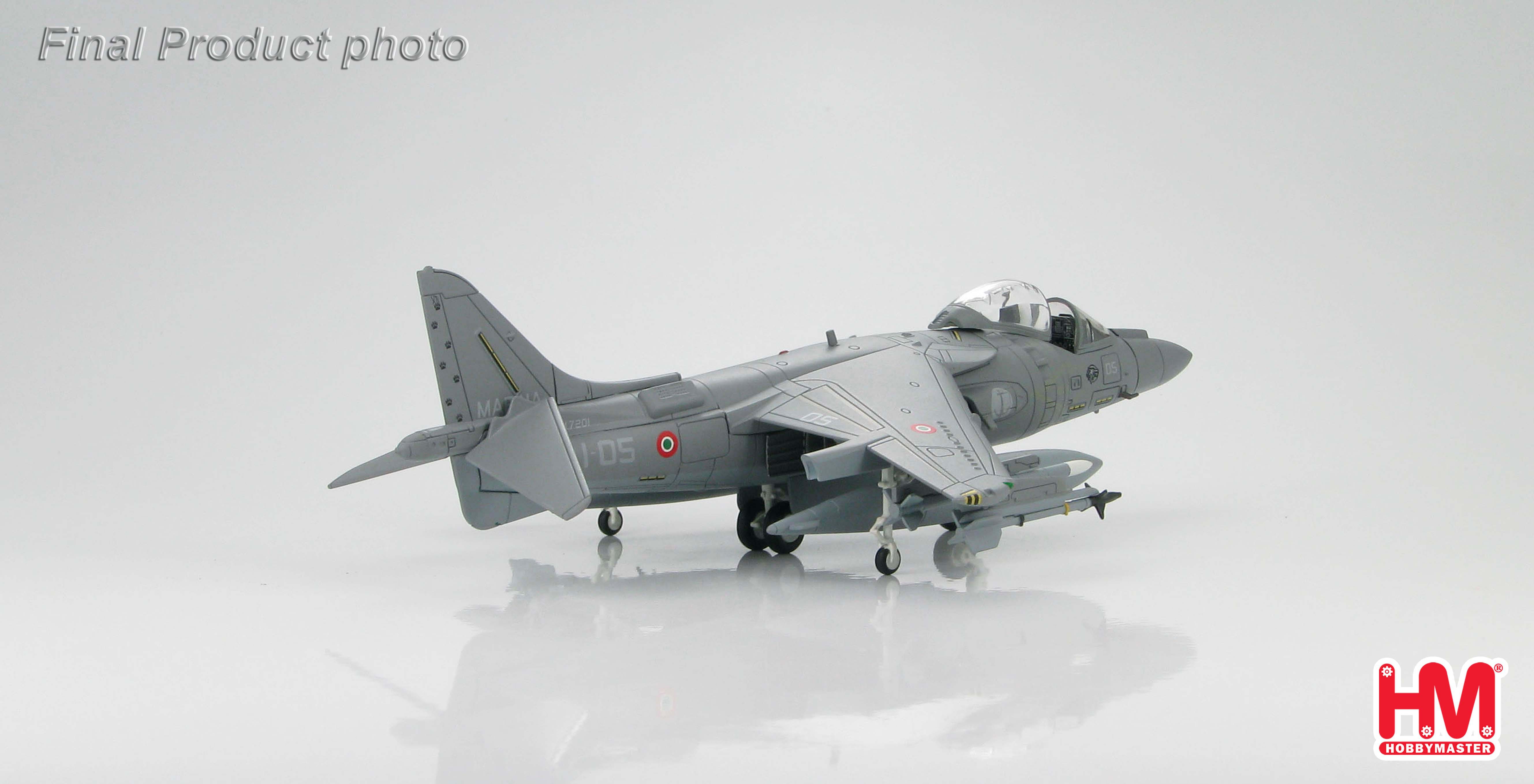

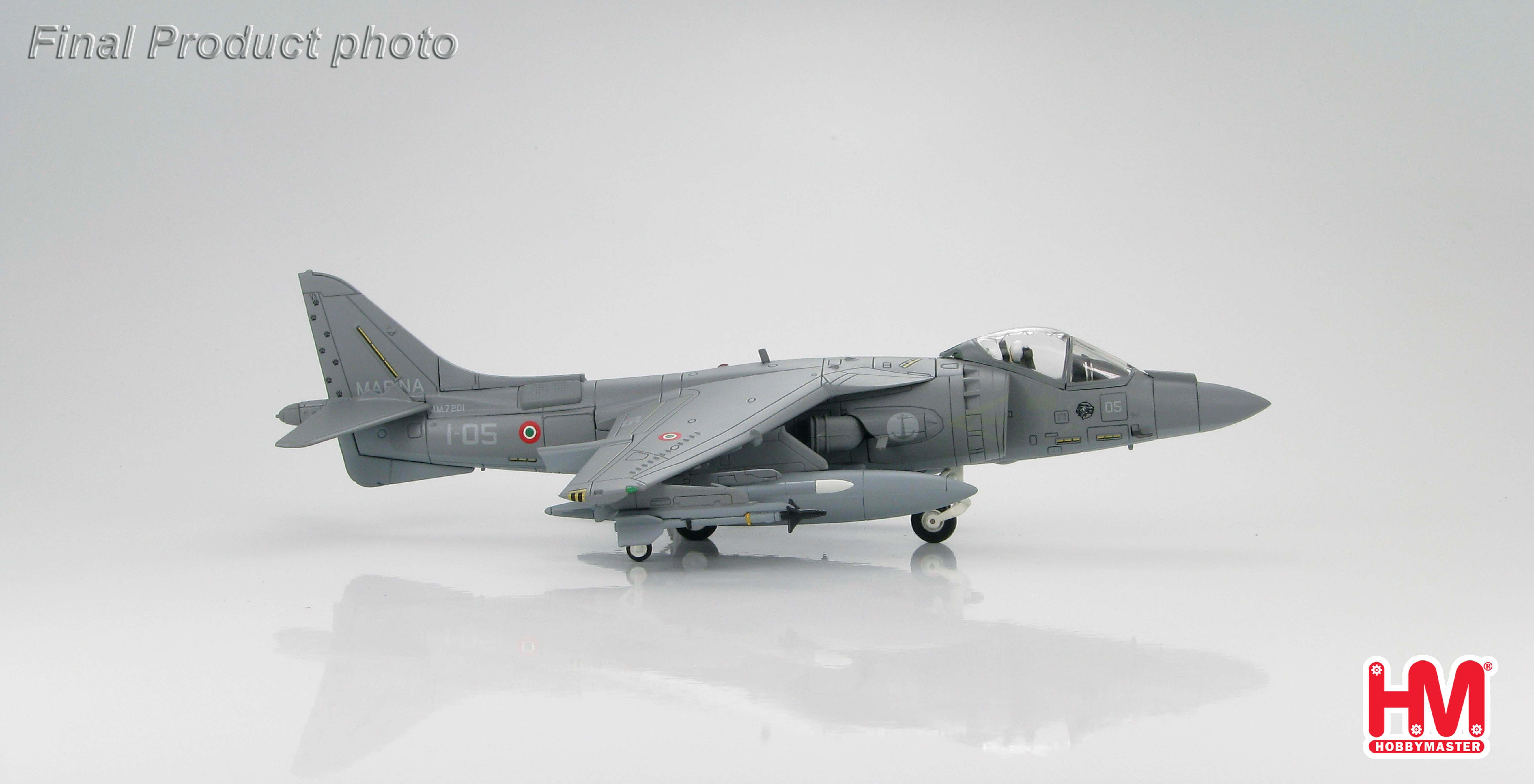

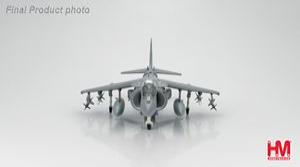

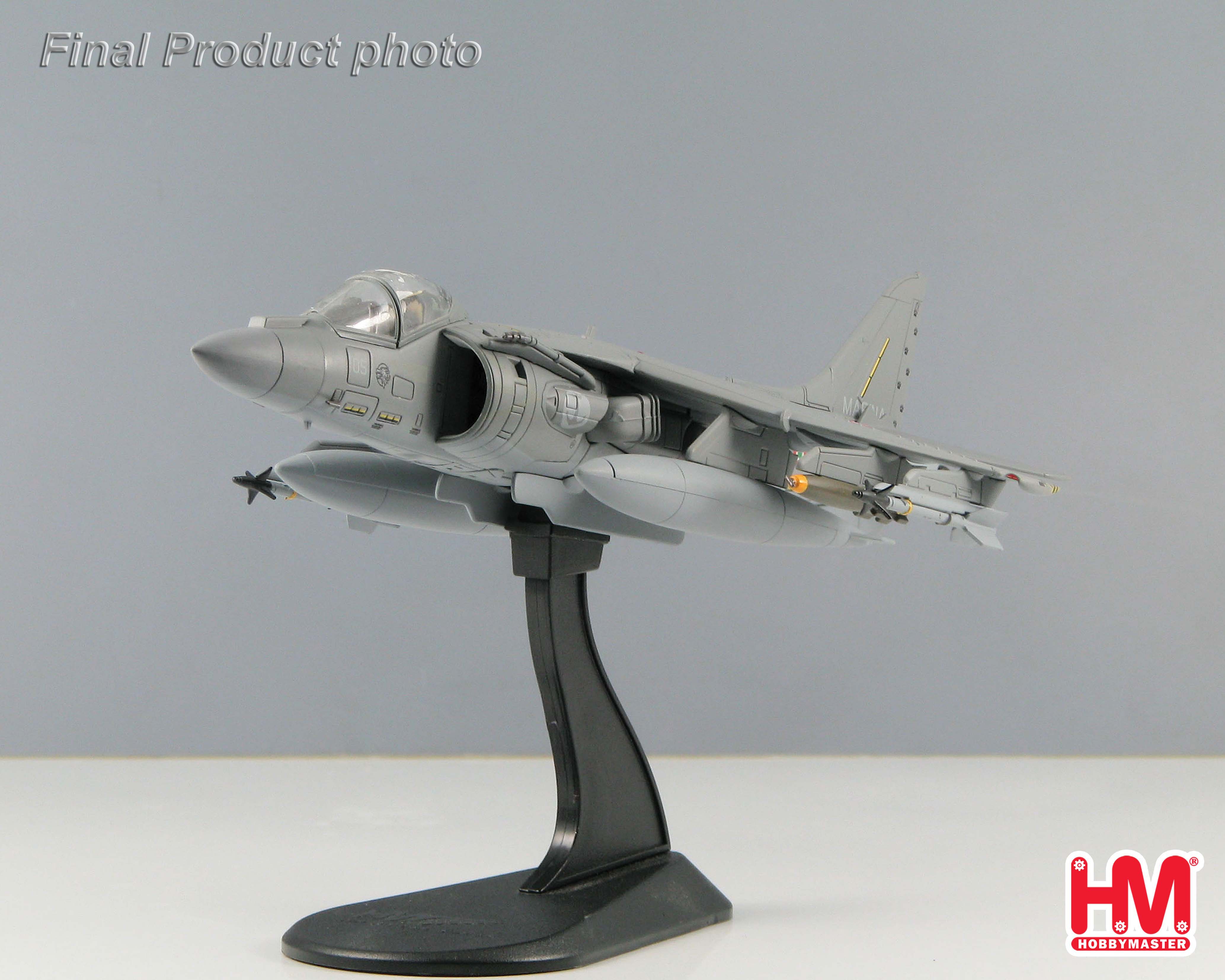

Hobby Master 1/72 Air Power Series
HA2607
AV-8B Harrier II Plus
Italian Navy, Giuseppe Garibaldi, 1 Grupa,
Grottaglie Base, near Taranto
Superb detailing in 1/72 scale.
Pre-painted with pad applied markings.
Fully assembled.
Weapons that are not permanently attached.
Comes with crew figure.
Display stand included.
Option to display model with wheels up or down.
Minimum use of plastic.


The AV-8B II + is the second generation of Harriers. Using its VSTOL (Vertical and Short
Take Off Landing) abilities the Harrier is capable of using almost any surface to attack
and destroy air or ground targets. Armed with conventional or specific weapons the
AV-8B II + can be used in offensive or defensive roles. Now with air-borne radar the
AV-8B II + can deliver its ordnance day or night. The AV-8B II + can be air refueled
allowing it to be deployed for extended periods.


In April, 1994 the Italian Navy (Marina Militare Italiana) received the first of the sixteen
AV 8B Plus single-seat and two TAV 8B two-seater Harriers. The Harriers are based at
Maristaer Grottaglie near Taranto, Italy. There are about 14 pilots assigned to the
squadron that operates from the land base or onboard the light aircraft carrier
GIUSEPPE GARIBALDI. The first landing of a Harrier on the Garibaldi took place in
November 1994. Gruppo Aerei Imbarcati "The Wolves" the unit emblem is a ferocious
wolf head.
