The F-105D was first accepted on September 28 1960 and became the major variant
with 610 aircraft being built. Intended for a nuclear strike role but since the nuclear threat
became less likely the role became a high-speed bomber. The Pitot tube was moved to
the nose that had been extended approximately 15 inches more than the “B”. The “D”
received strengthened landing gear and an arrestor hook in case it over shot the runway.
During 1966 and 1967 F-105Ds managed to down 25 MiGs using the 20-mm cannon and
2 other using Side-Winder missiles.

On June 3, 1967 F-105D 60-0424 nicknamed “MICKEY TITTY Chi” flown by Major
Ralph L. Kuster Jr. of the 34th TFS/388th TFW stationed at Korat RTAFB, Thailand was
part of the attack flown against Bac Giang railway bridge. The F-105s flew a tight pod
formation so they could deploy their ECM effectively against the SAMs and AAA fire.
Kuster was the lead and used his gun camera to record the positions. Departing, they
encountered MiG-17s and Kuster another F-105 destroyed both. 60-0424 was lost to
AAA fire one month later.


Specifications for the Republic F-105D Thunderchief

Nick Names – Ultra Hog, Super Hog, Iron Butterfly, Lead Sled, Thud

Role – Fighter/Bomber

User Countries – U.S.A.

Crew – (1) pilot

Dimensions
Wingspan - 34 ft 11 in,
Length - 64 ft 3 in,
Height - 19 ft 8 in,
Wing Area - 385 sq. ft.

Performance
Engine- (1) Pratt & Whitney J75-P-19W turbojet, rated at 17,200 lb.s.t. dry and 26,500 lb.
s.t. with afterburner

Maximum speed -
1,420 mph at 38,000 ft
1,372 mph at 36,000 ft
1,122 mph at 50,000 ft
836 mph at sea level
Stall speed - 208 mph
Initial Climb Rate - 34,500 fpm (clean)
Service Ceiling - 32,100 ft
Combat Ceiling - 48,500 ft
Maximum Ceiling - 50,000 ft
Combat Range - 778 miles
Maximum Range with full external fuel – 2,208 miles

Fuel
Normal Internal Fuel Load - 1,160 US gallons
Internal Weapons Bay - 390 US gallon auxiliary tank
Optional 450 or 650 US gallon external tanks on the fuselage centerline
Plus a 450 US gallon tank on each of the inboard under-wing pylons

Weights
Empty - 27,500 lbs
Combat - 35,637 lbs
Gross - 48,400 lbs
Maximum Take/Off - 52,546 lbs

Armament
(1) 20-mm M61A1 rotary cannon with 1028 rounds (fire rate 6,000 rpm)
Up to 8,000 lbs of ordnance could be carried in the internal weapons bay
An additional 6,000 lbs of ordnance could be carried on (4) under-wing pylons and (1)
rack under the fuselage center-line
Up to (4) AIM-9 Sidewinder missiles for self-defense
Up to (4) AGM-12 Bullpup (not very effective in Vietnam)
(1) Mk 28 or Mk 43 nuclear weapon
Up to (2) 3,000 lb bombs
Up to (5) 1,000 lb bombs
Up to (16) 750 lb bombs
Mk 77 napalm
ECM pods
2.75 in. rockets

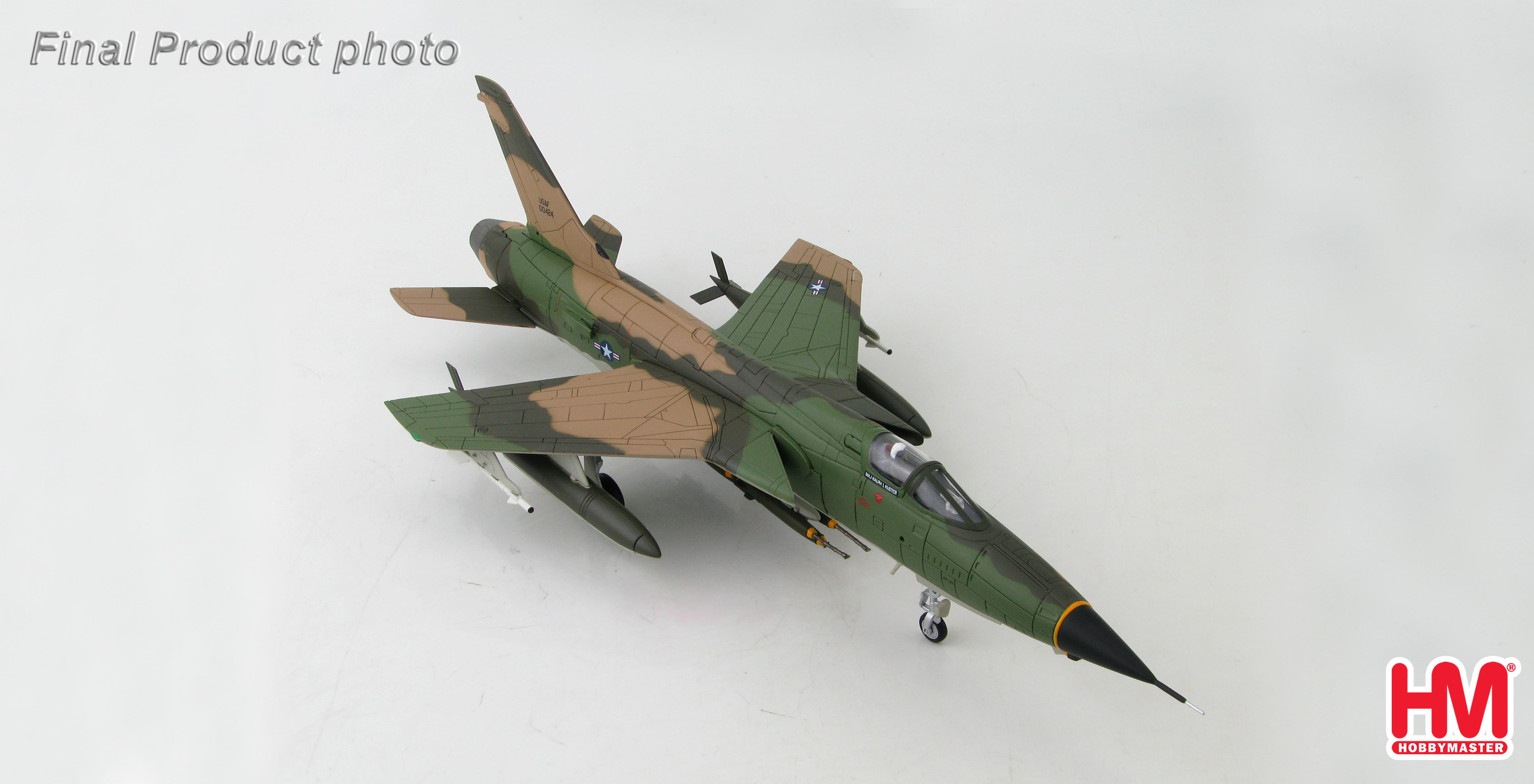

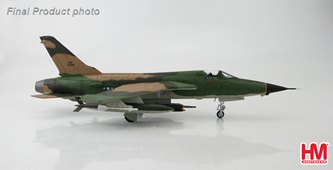

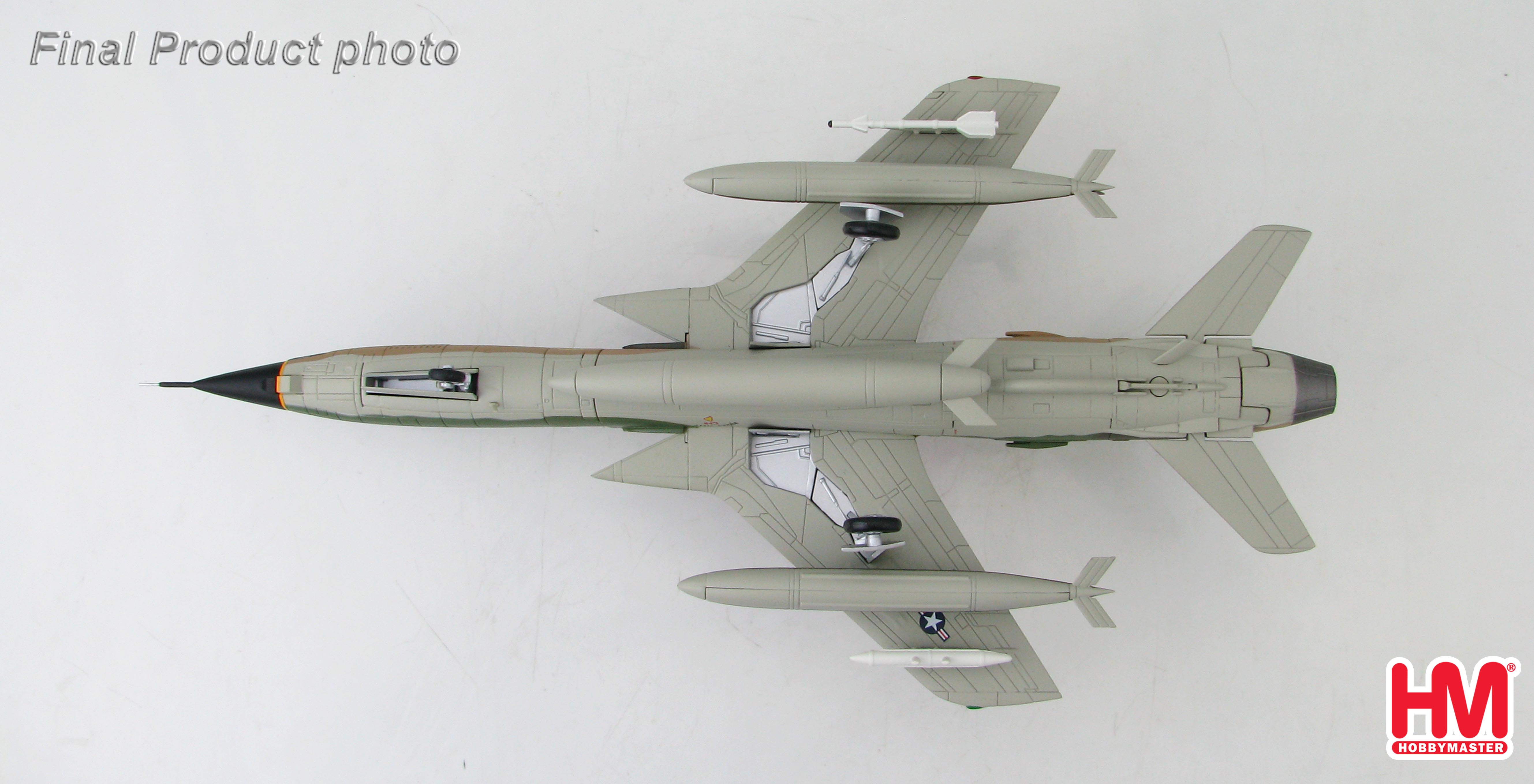

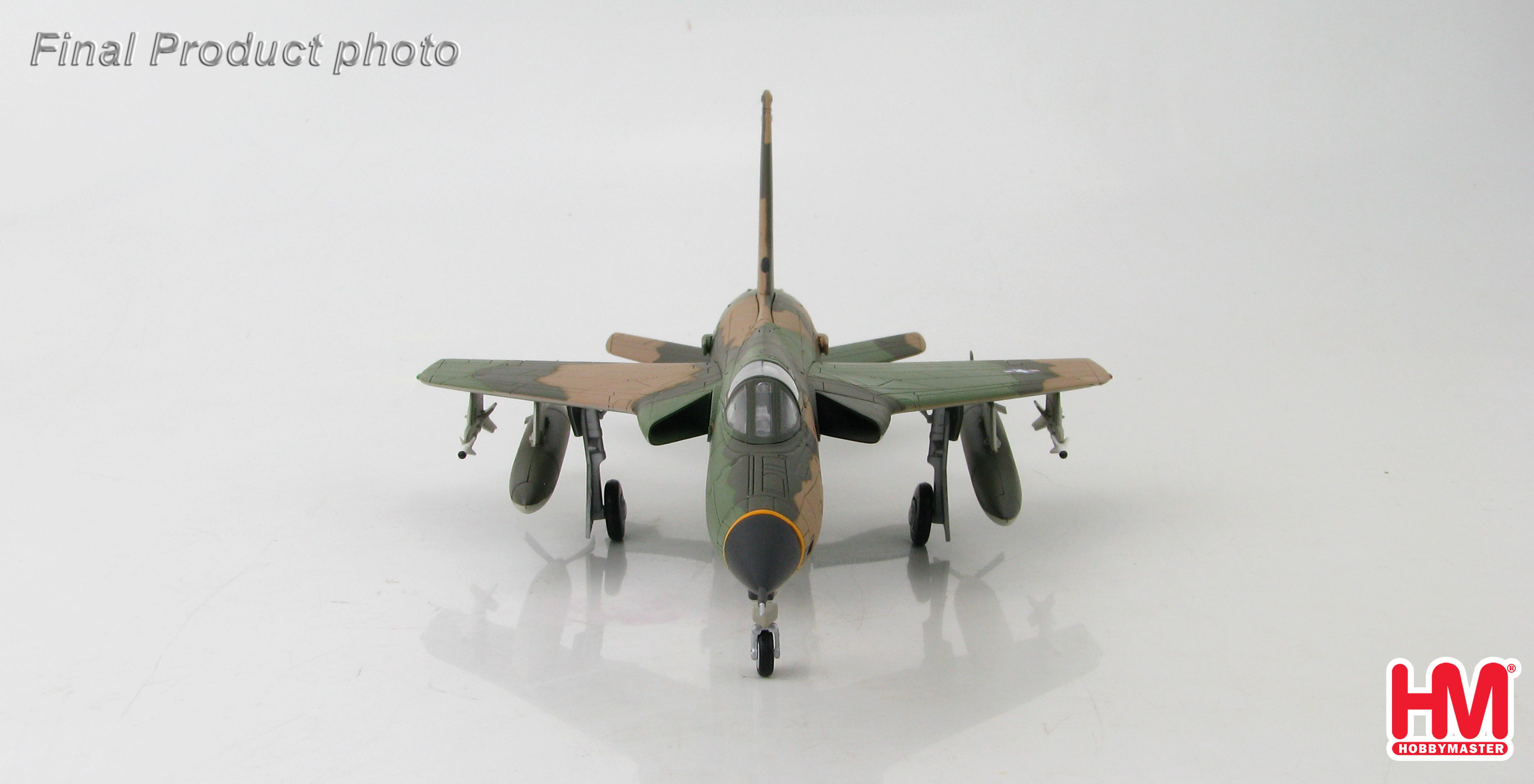

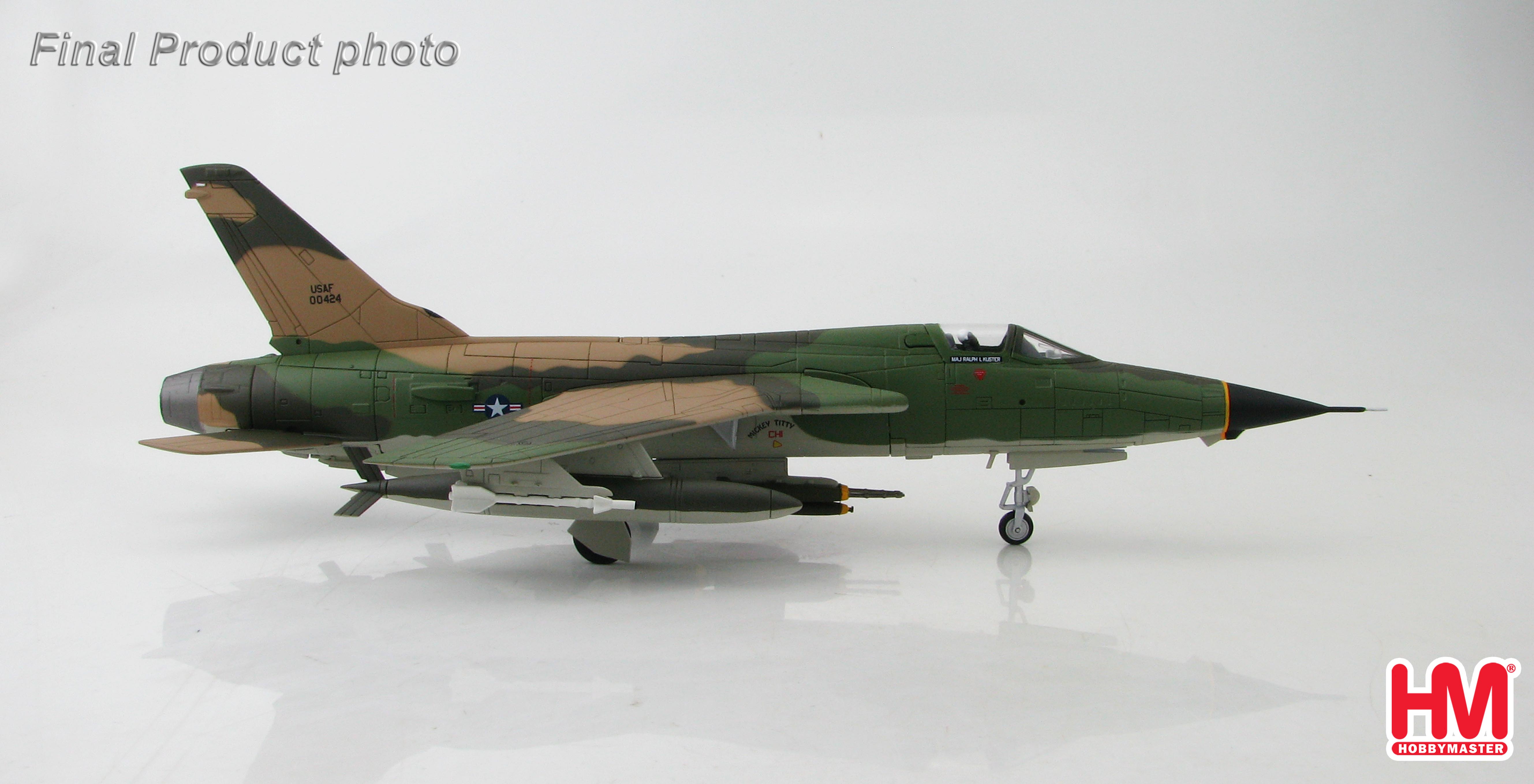

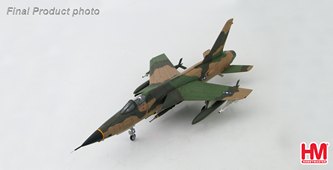

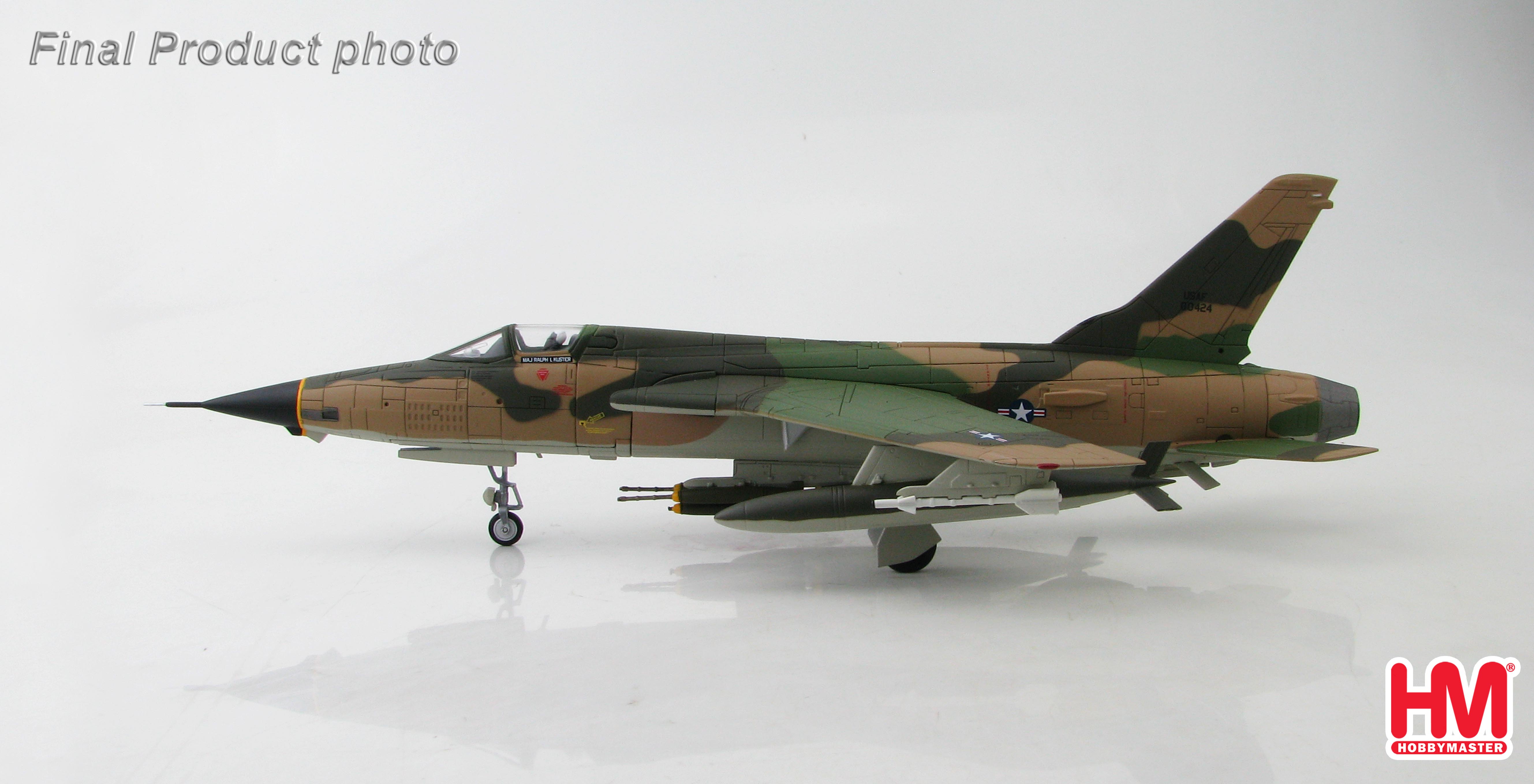

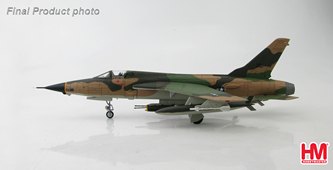

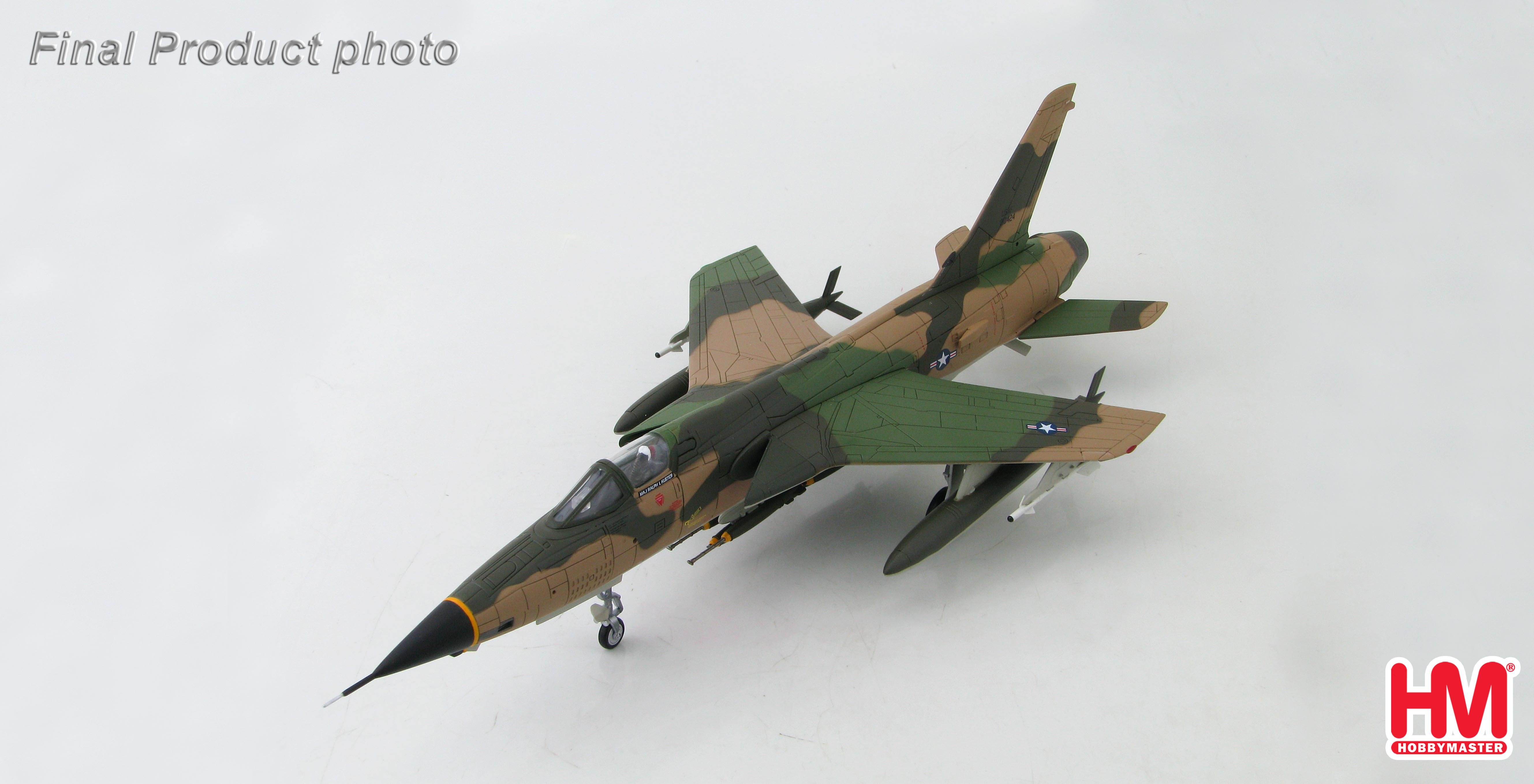

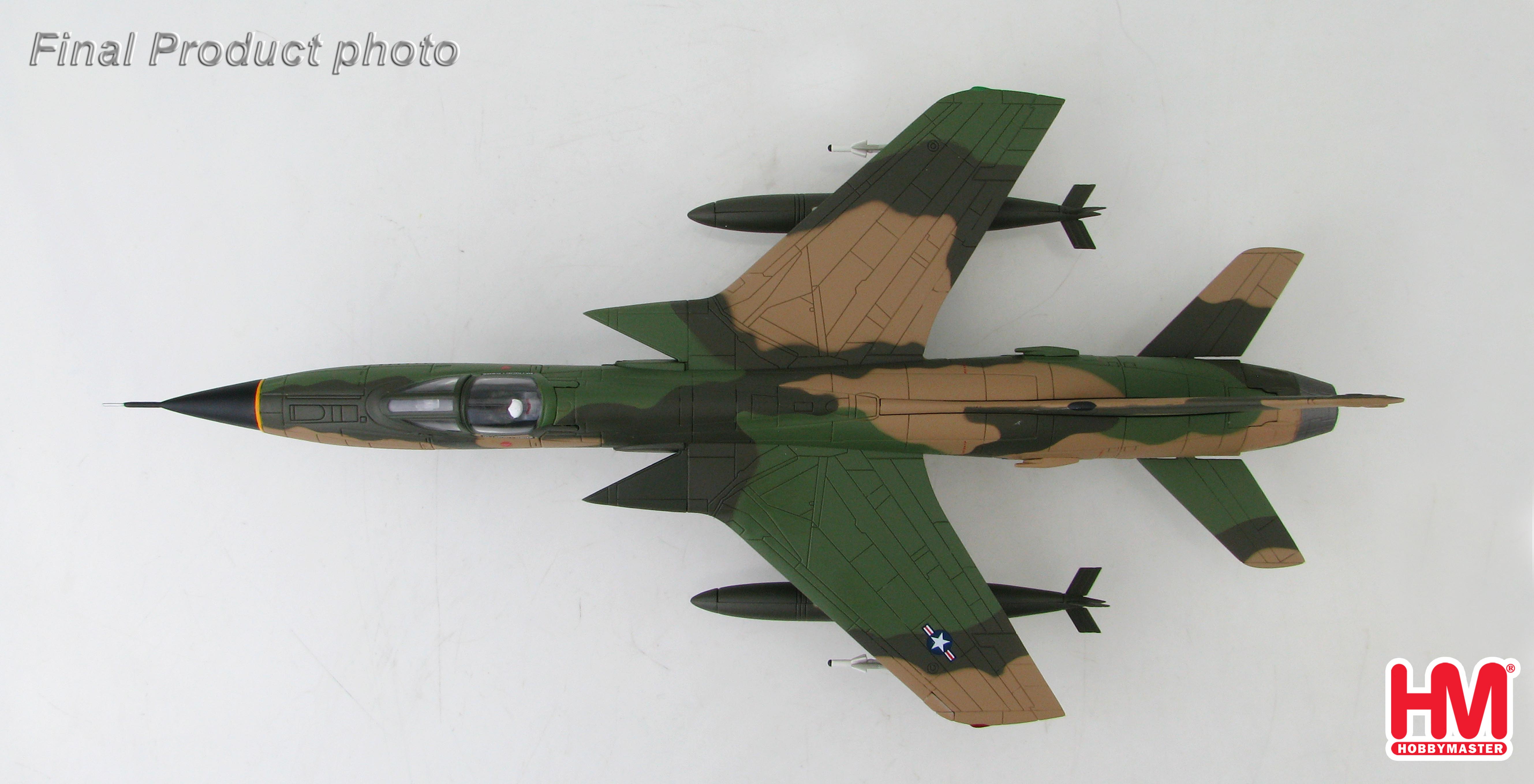

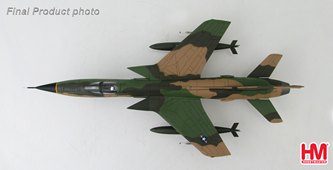

Hobby Master 1/72 Air Power Series
HA2513
F-105 Thunderchief
60-0424 "MICKEY TITTY Chi"
34th TFS/388th TFW
Korat RTAFB, Thailand 1967
Die-cast metal.
Superb detailing in 1/72 scale.
Pre-painted with pad applied markings.
Fully assembled.
Weapons that are not permanently attached.
Comes with crew figure.
Display stand included.
Option to display model with wheels up or down.
Minimum use of plastic.
