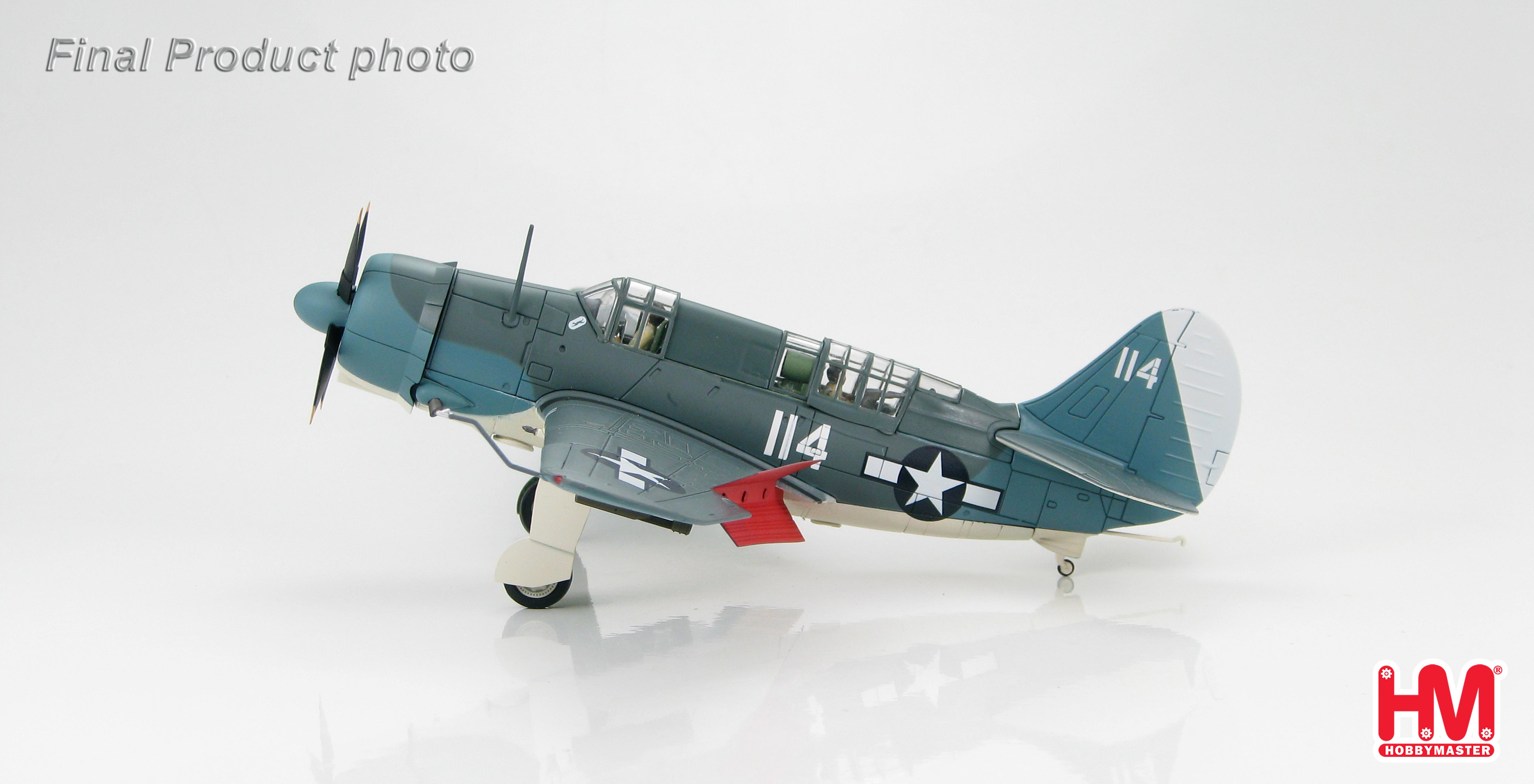

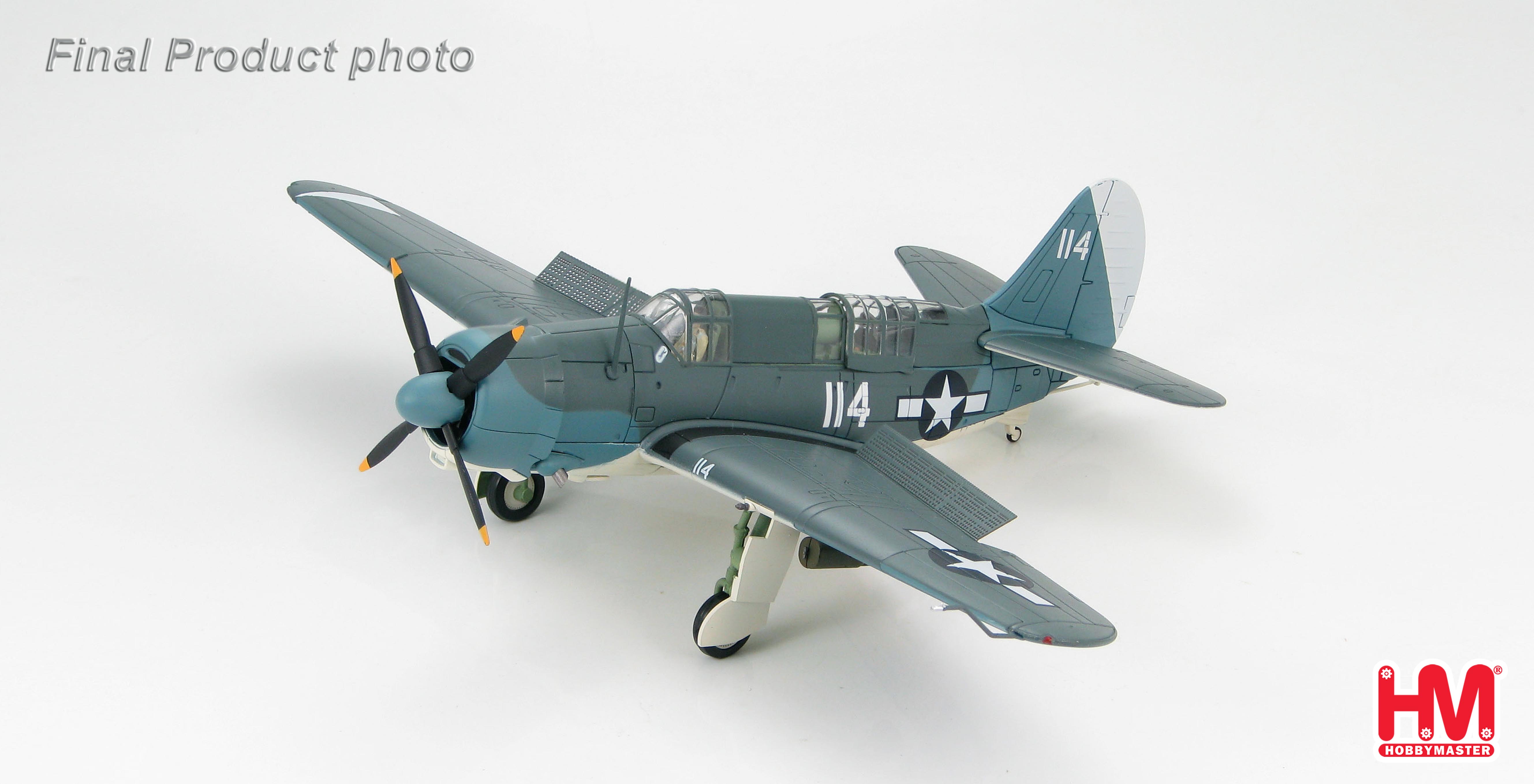

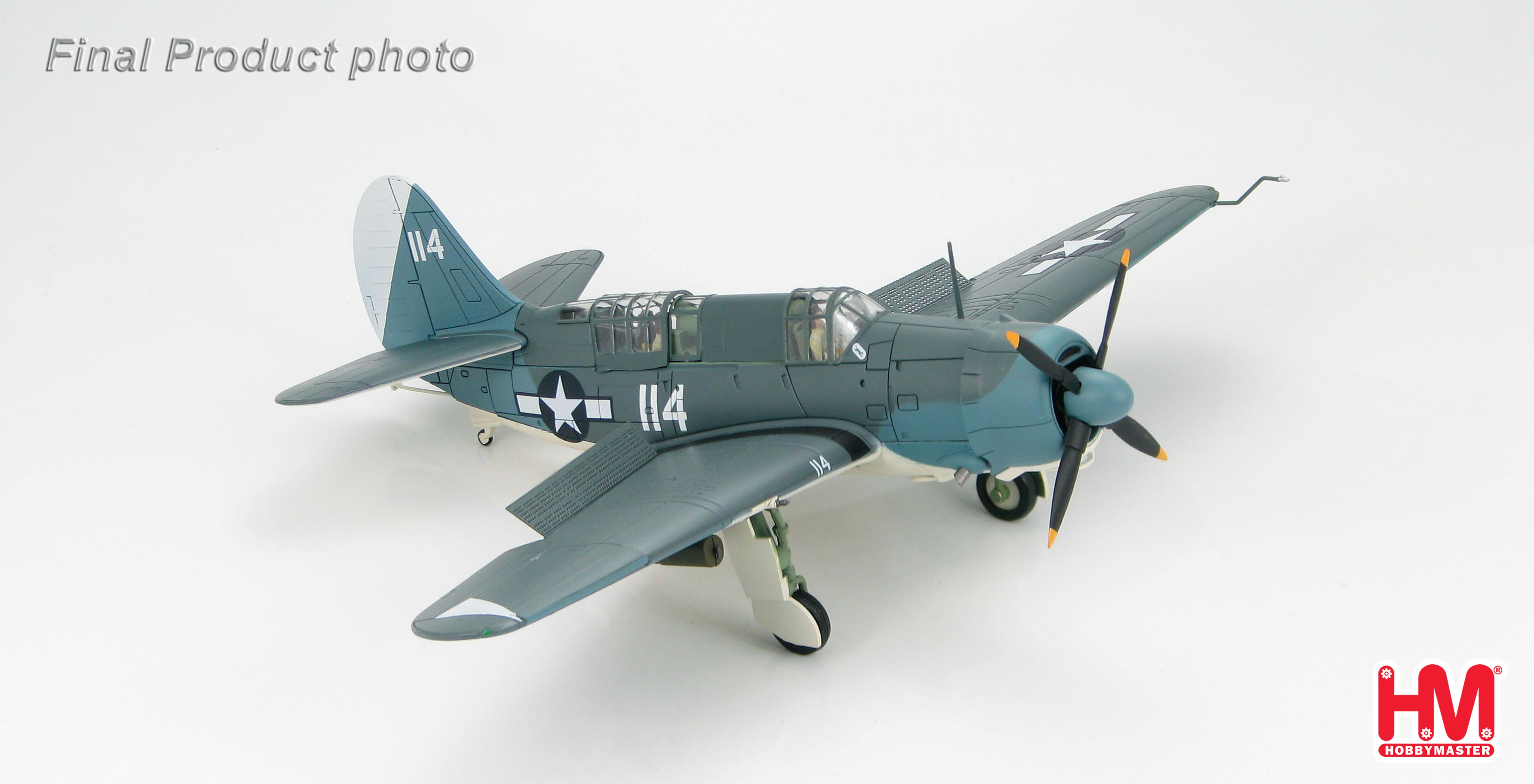

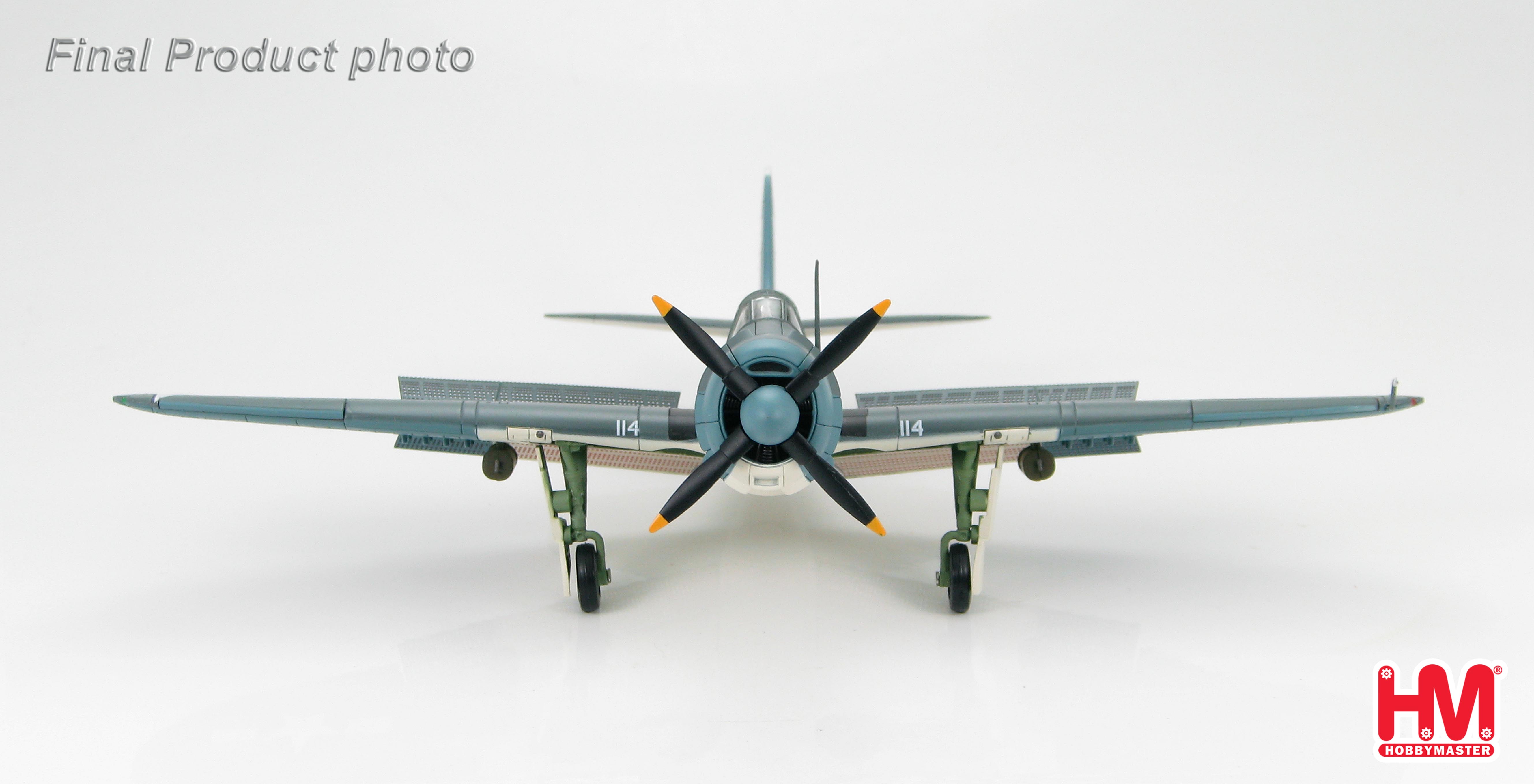

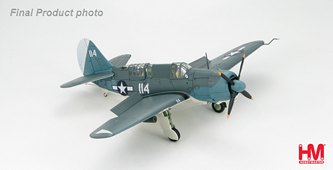

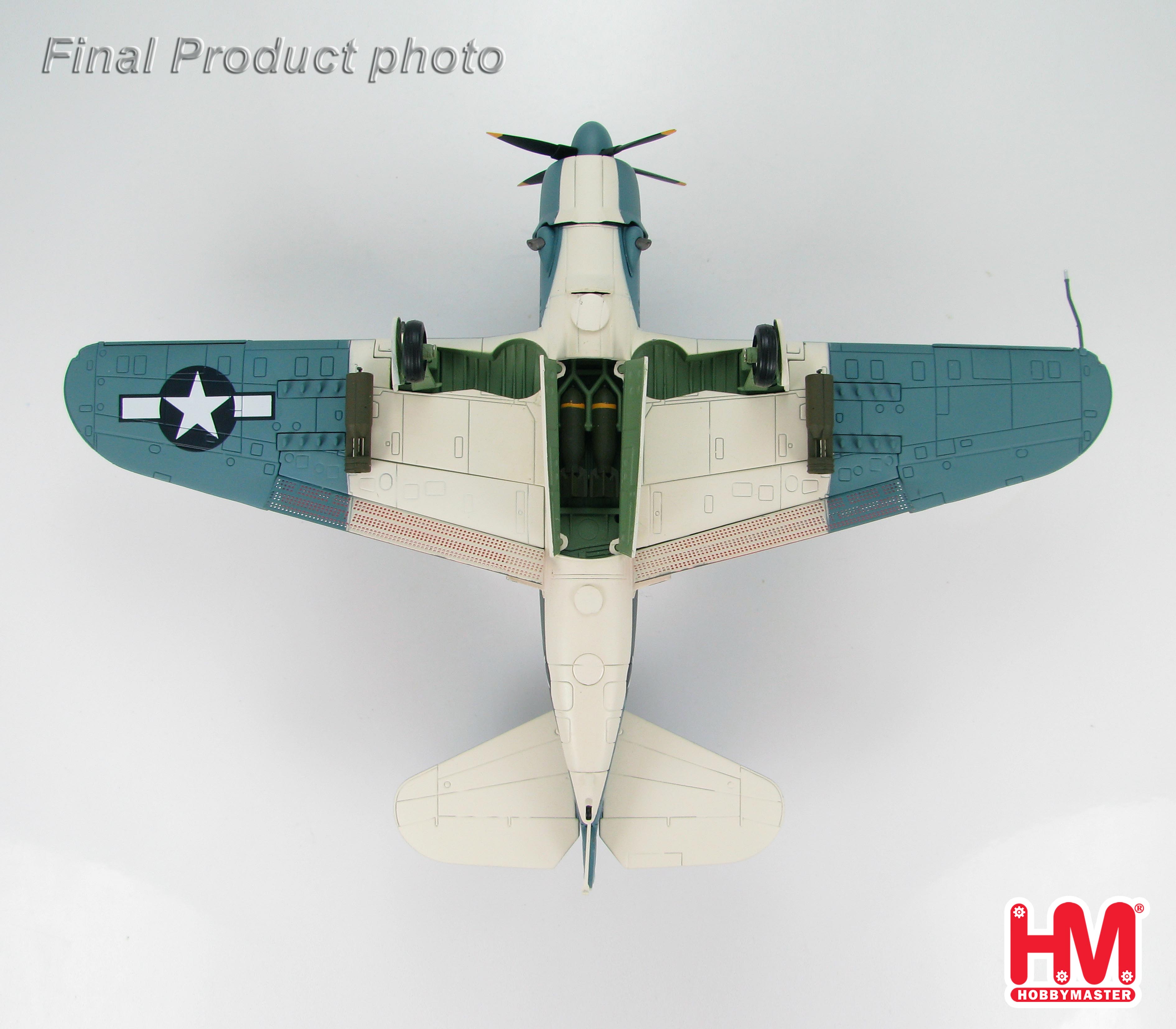

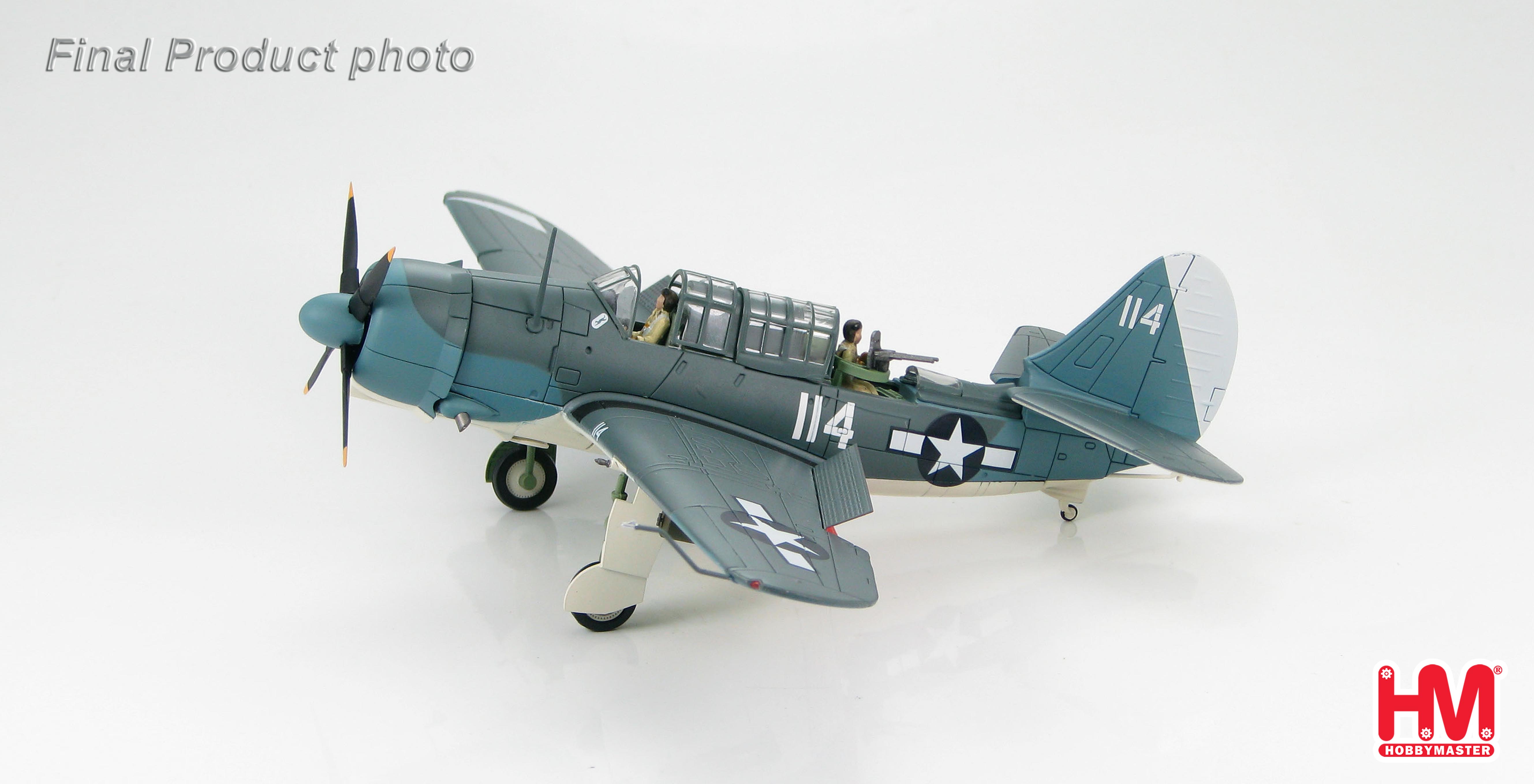

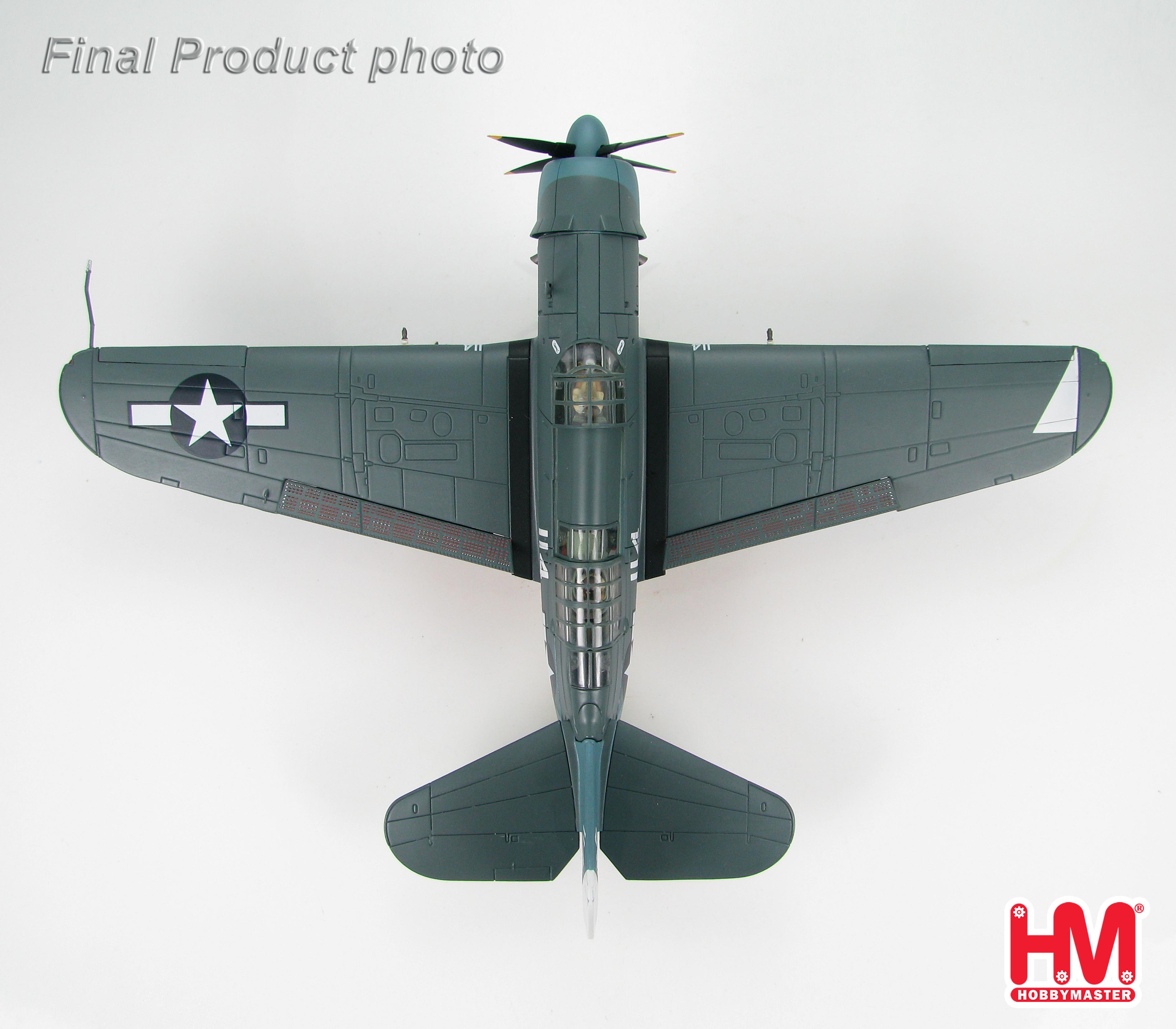

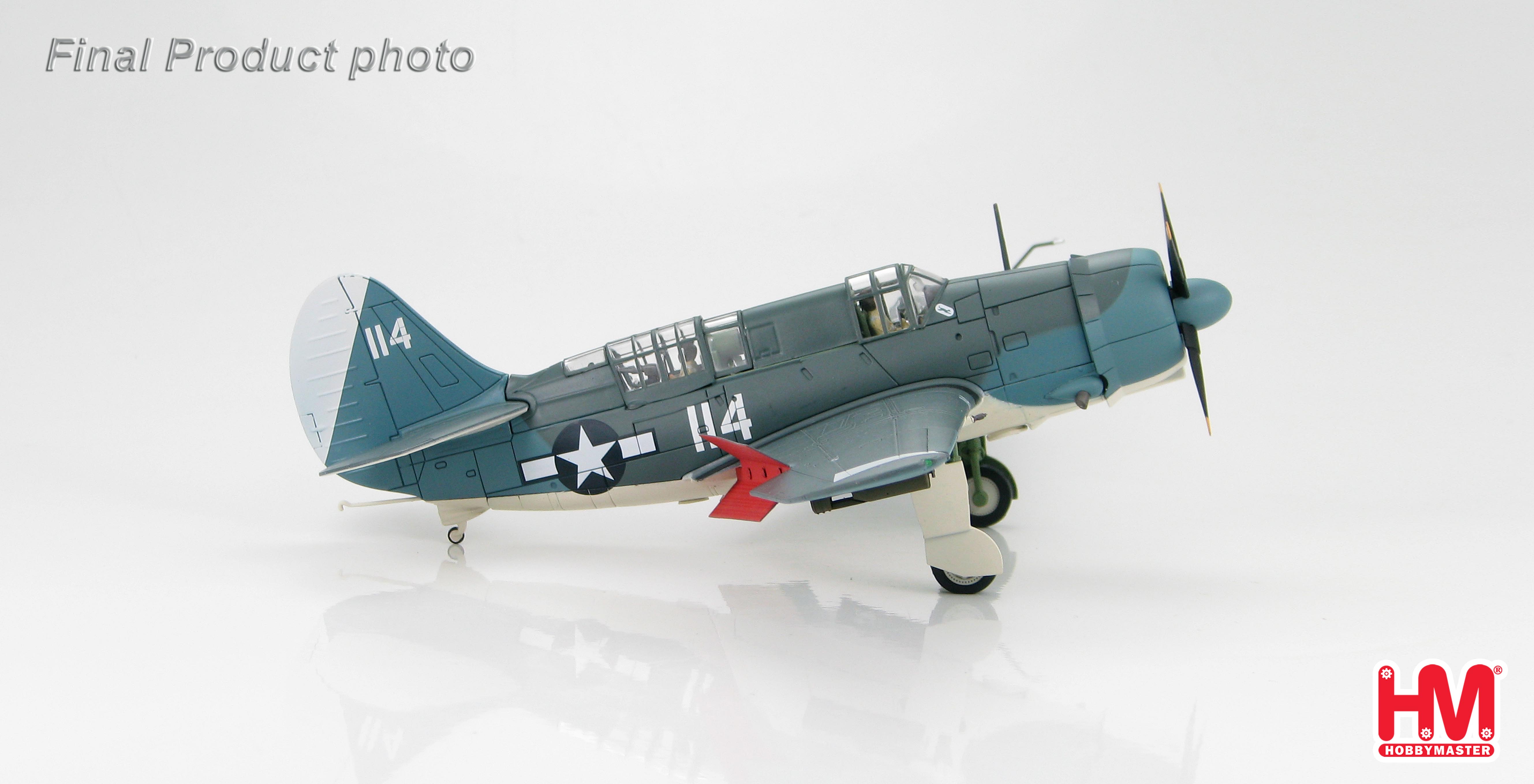

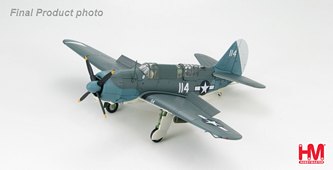

The SB2C Helldiver was commonly referred to as “The Beast” because of its size and
rather poor handling characteristics. Even with new variants and upgrades the Helldiver
never received the credit and respect it deserved. The most produced variant was the
“4” with the SB2C-4E equipped with an AN/APS-4 radar pod mounted under the
starboard wing for air search. It flew faster and further than the Avenger, except for
range it beat the SBD in every category. Its cruising speed was only 2 mph slower than
the famous Hellcat.

VB-3 is considered by many to be the premier Navy attack squadron of WWII. It was
established in 1934 and chose a leaping or diving panther as its emblem. The Black
Panthers were involved in the sinking of Japanese warships at Midway and
Guadalcanal. Flying their Helldivers VB-3 took part in attacks on the Japanese in the
Philippines, Formosa and the home islands. The USS Yorktown CV-10 originally was
named USS Bon Homme Richard but was renamed to honor the USS Yorktown CV-5
that was sunk on June 7,1942.

Specifications for the Curtiss SB2C-4 Helldiver

First flight – 18/12/1940

Crew – 2 X Pilot and Radio Operator/Gunner

Dimensions
Length – 36.7ft   (11.18m)
Wingspan – 49.7ft   (15.16m)
Height – 13.2ft   (4.01m)

Performance
Engine – 1 X Wright R-2600-2- Cyclone / 1900hp   (1,417kW)
Speed – Cruise / 158mph   (254km/h)   (137kts)
Maximum Speed – 295mph   (475km/h)   (256kts)
Rate Of Climb – 1,800ft/min   (548m/min)
Service Ceiling – 29,100ft   (8,869m)
Range – 1,165miles   (1,876km)

Weight
Empty – 1,057lbs   (7535kg)
Maximum Take Off – 16,616lbs   (7,537kg)

Armament
2 X 20mm fixed wing cannon or 4 X 0.50 caliber fixed wing machine guns
2 X 0.30 caliber rear cockpit machine guns or 1 X 0.50 caliber flexible rear cockpit
machine gun
Bomb Load- 1 X torpedo or 1,000 pounds of bombs in the bay or 4 X depth charges
Also capable of carry an additional 1,000 pounds of bombs or 8 X 5inch rockets under
the wings.
