Diecast Aircraft Information  Diecast Aircraft Information MetalWings Diecast Aircraft Reference by Dauntless Aviation
Hobby Master 1/72 Air Power Series

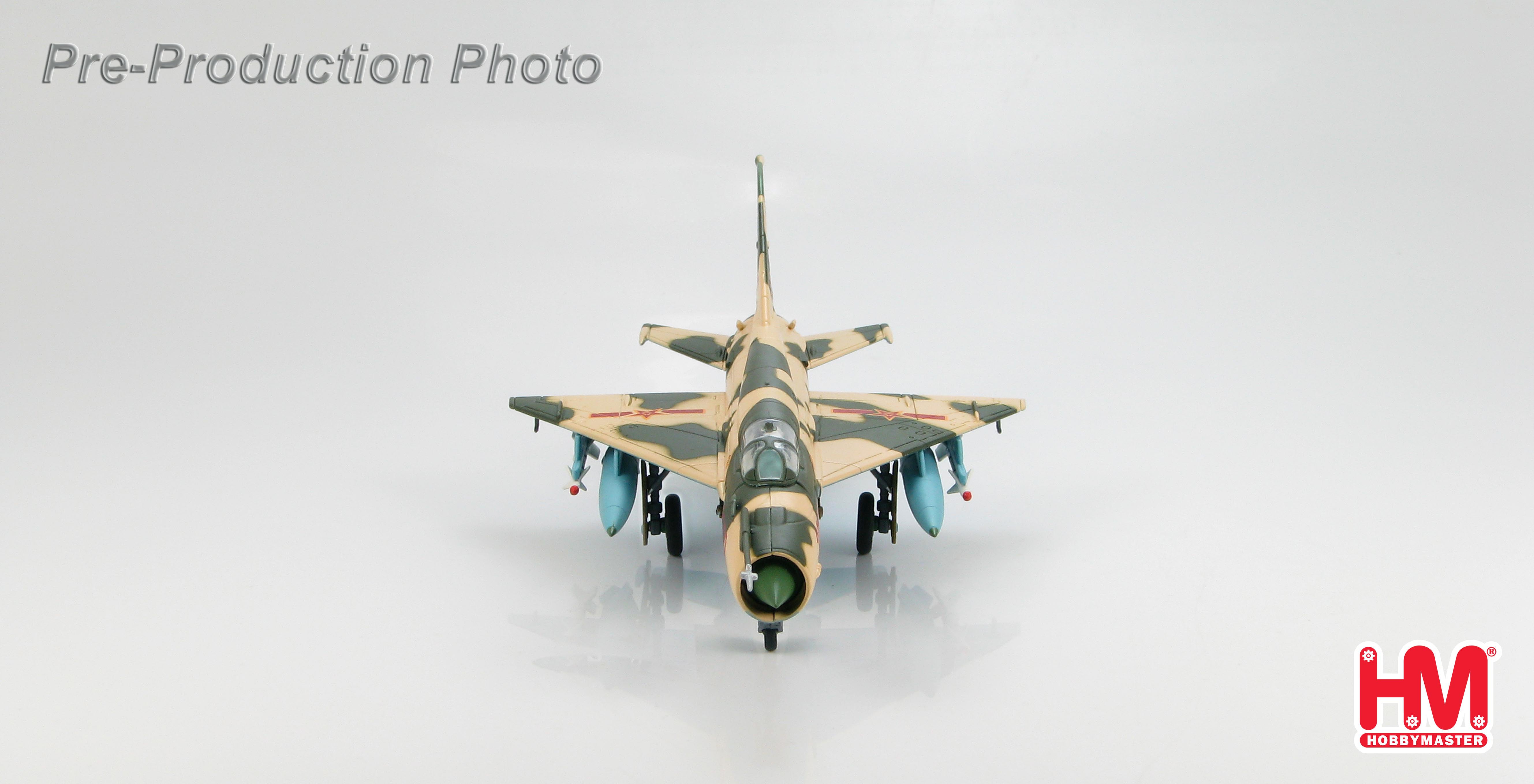

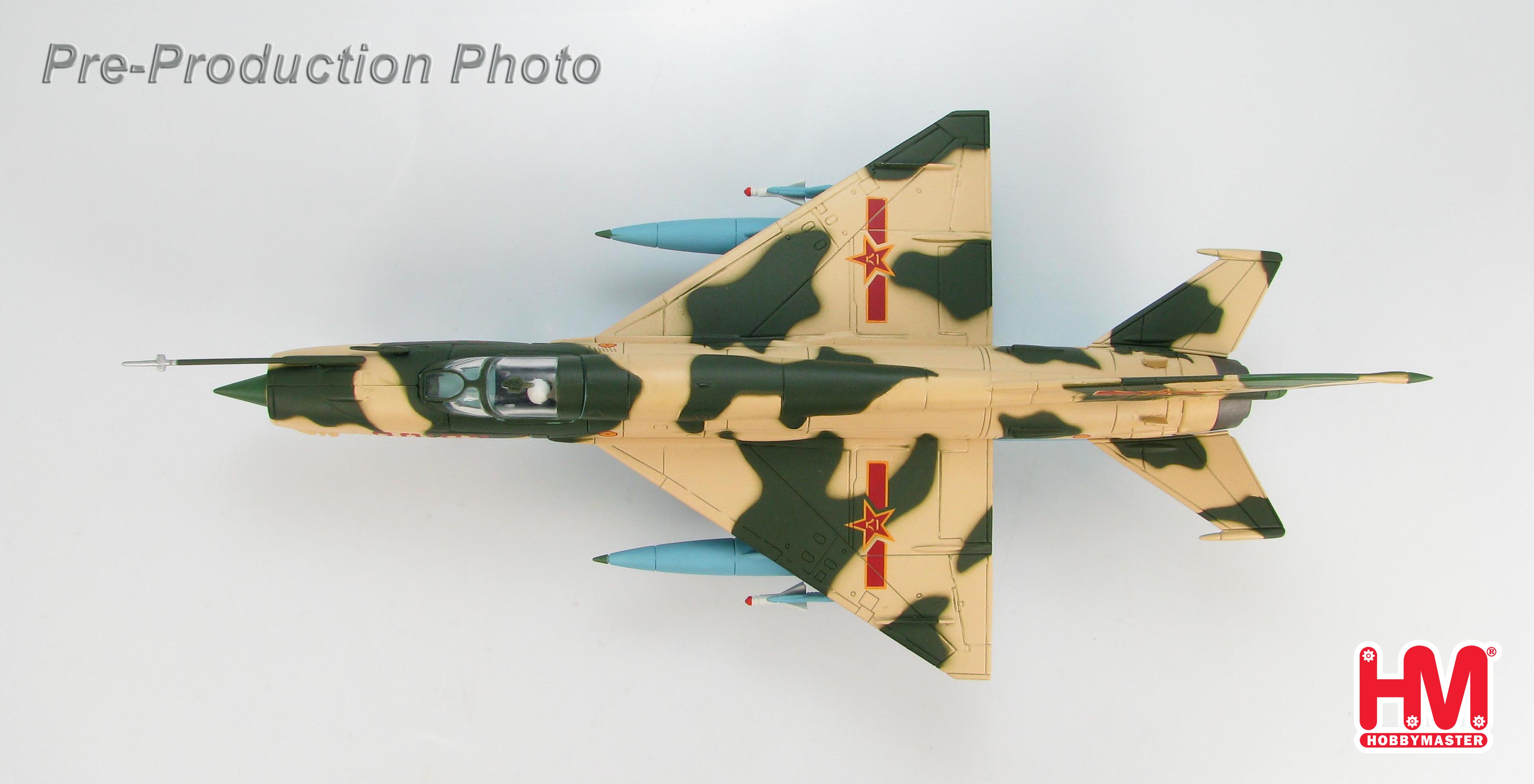

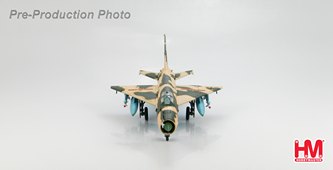

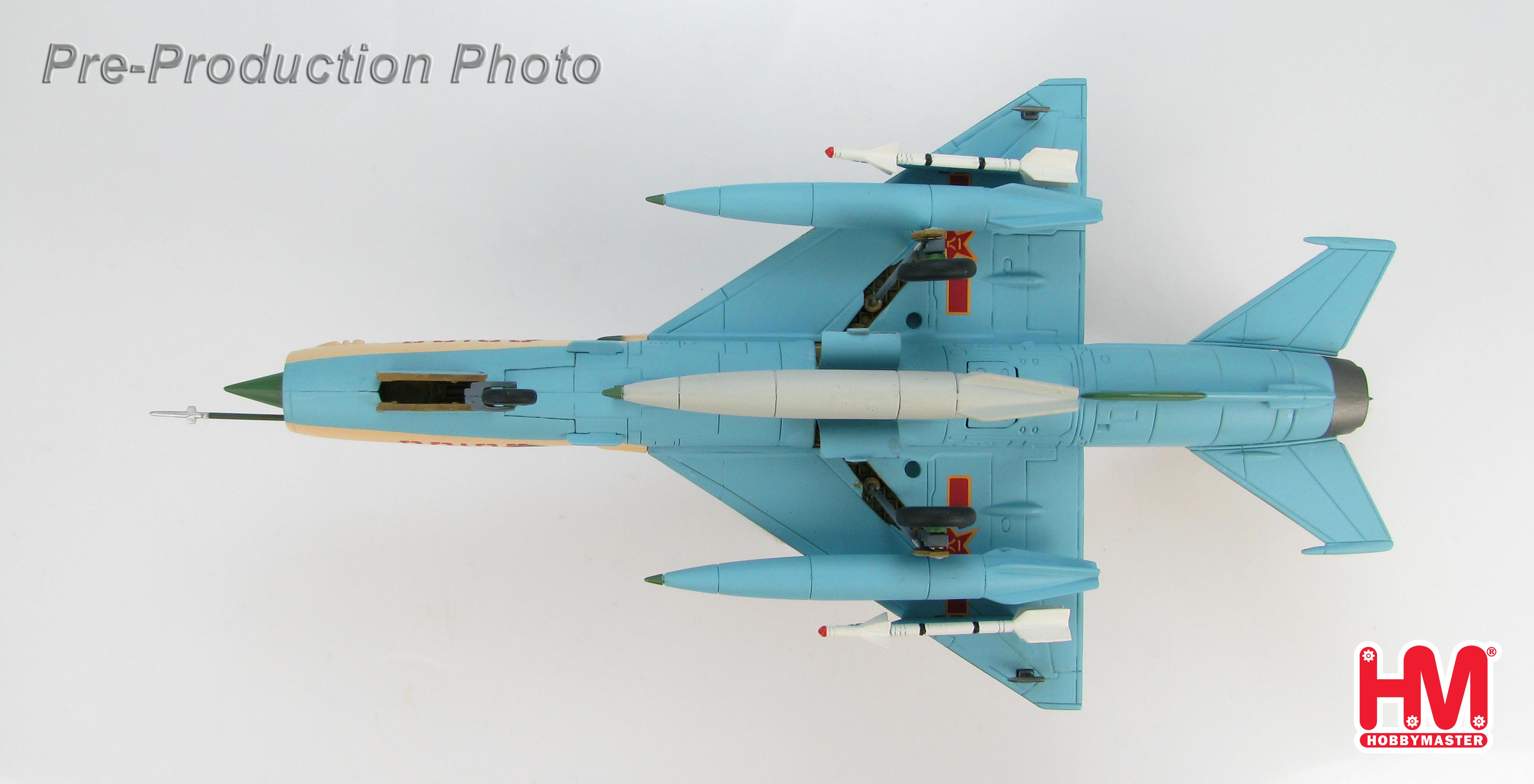

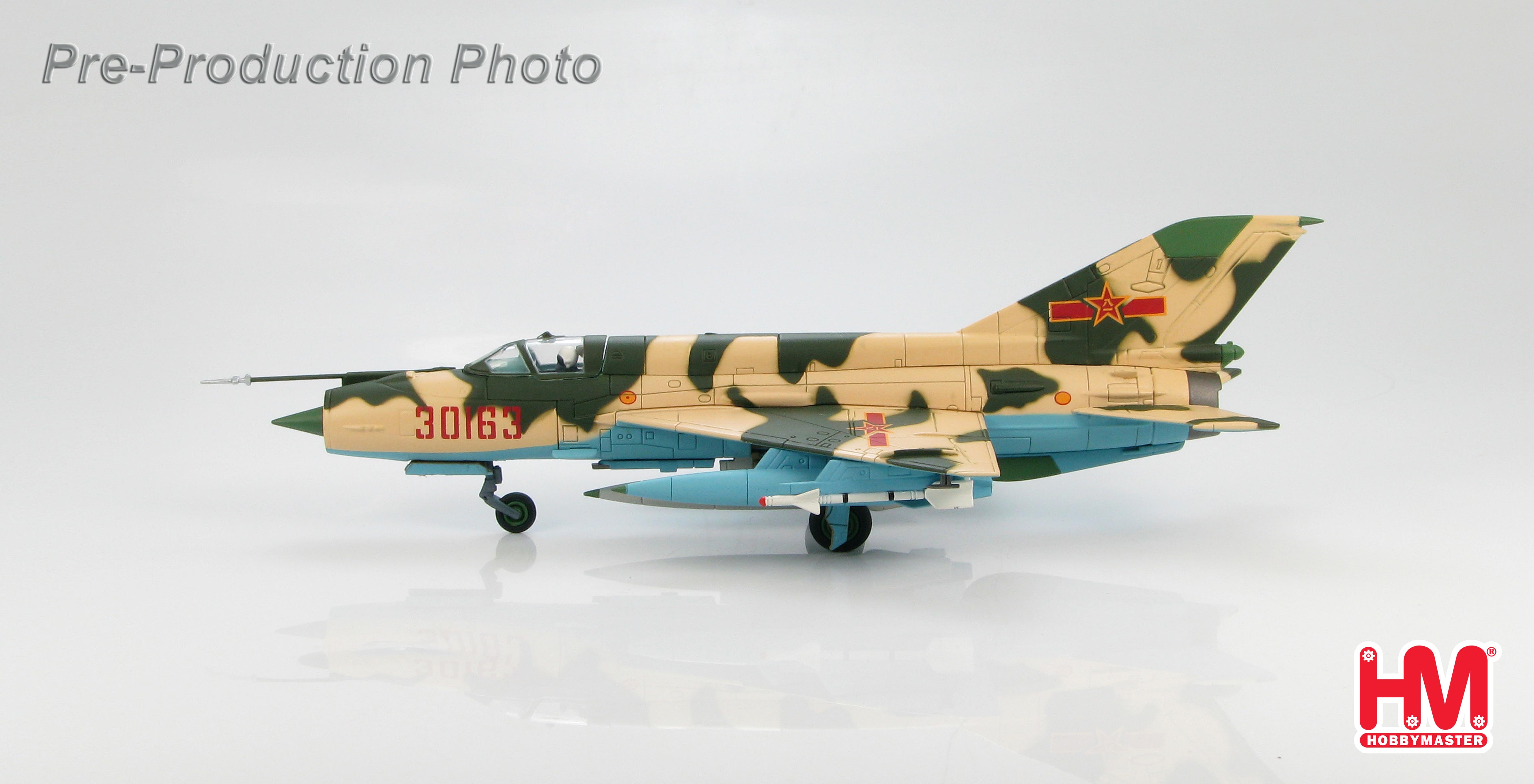

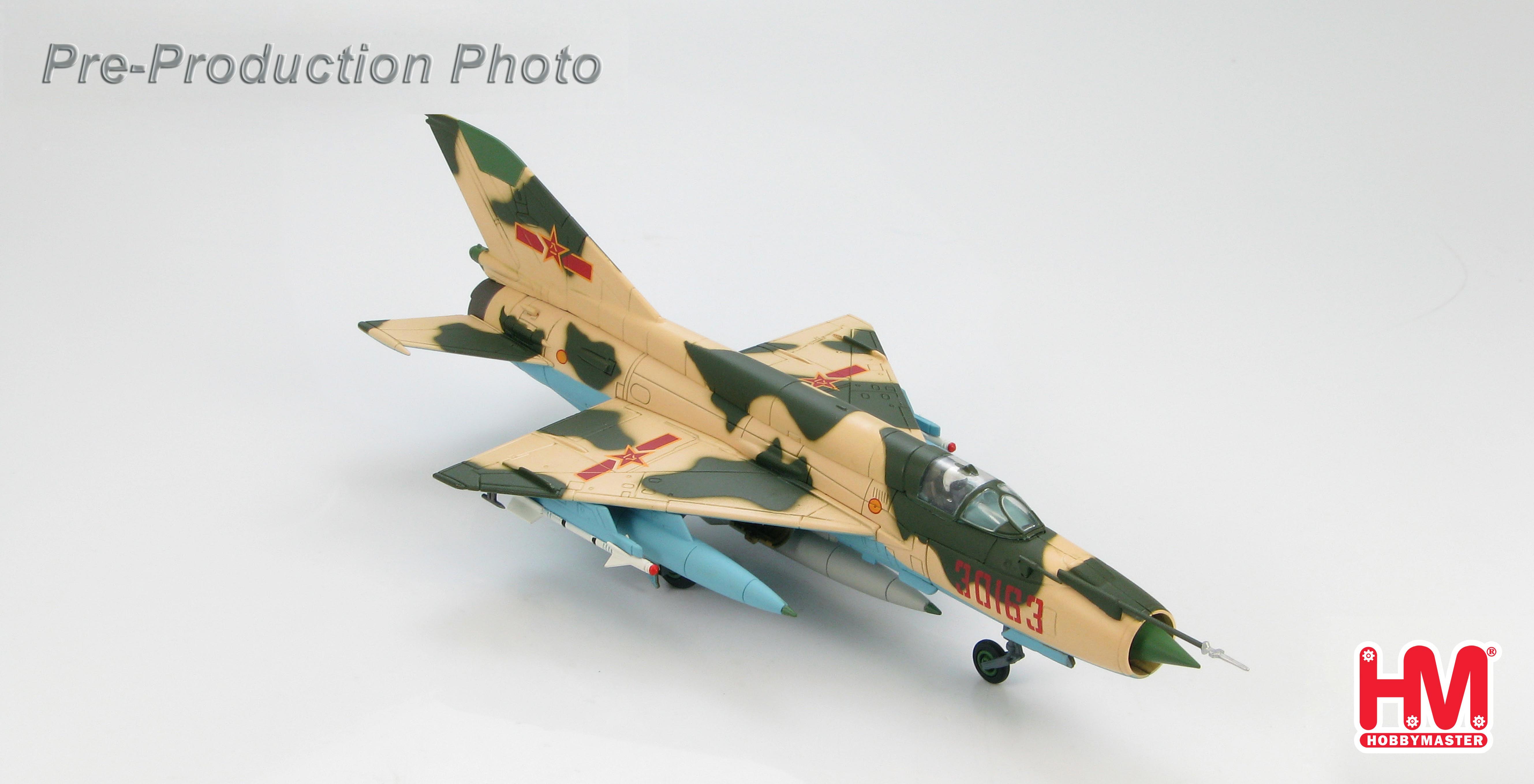

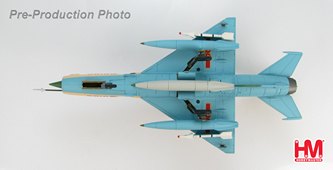

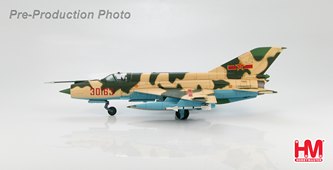

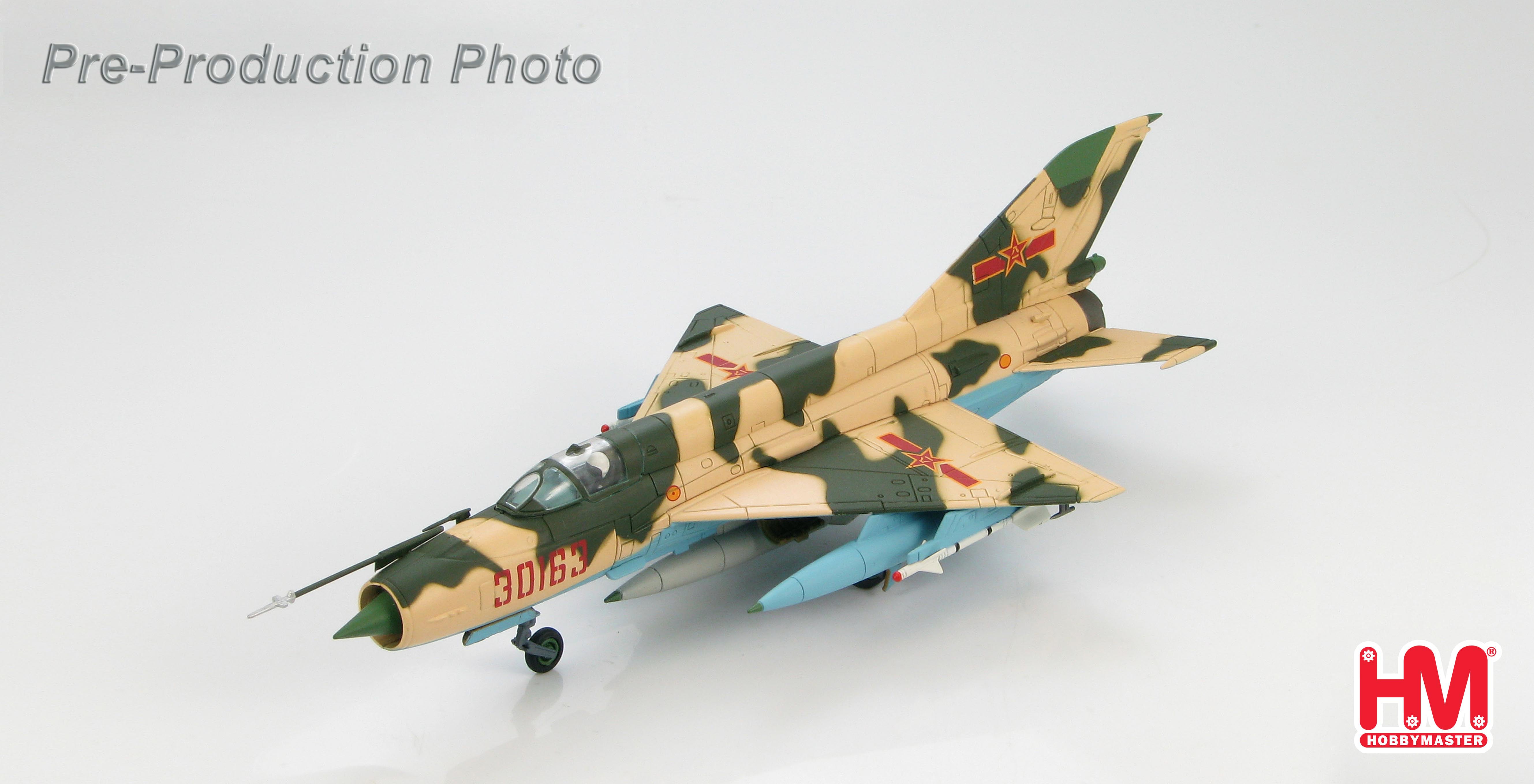

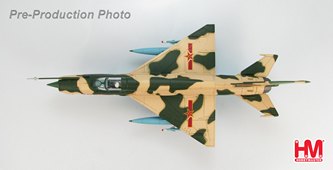

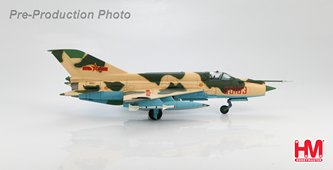

HA0180
Chengdu J-7C Fishbed
PLAAF, 18th Division, Huairen AB
Beijing Military Region

True 1/72 scale
Professionally painted unique scheme
Great attention to detail
All markings are Tampoed (pad applied)
Display the model on a stand or on the landing gear
Canopy opens
Extremely heavy metal with a minimum of plastic
Highly collectable
China was receiving aircraft and technical help from the USSR. When Egypt and China
seemed to be looking to the US for assistance, relations with the USSR ended. To keep
aircraft development going in China, Egypt sent a Mig-21MF in return for a Romeo Class
SSK sub. China reverse engineered the Mig-21MF and developed the J-7C/D. Externally
the J-7D was almost identical but had some improved avionics and weapons controls,
many J-7Ds were just upgraded J-7Cs. This J-7D originally was an operational night
fighter under the Beijing MR (Military Region) at Huairen Air Field.

Established in 1948 as the North China Military Region it was renamed the Beijing
Military Region in 1955 when the Inner Mongolia Military Region was downgraded to a
district and became part of the new BMR. The BMR is the most important of 7 military
regions with its primary duty to protect the capital.
Specifications

DIMENSIONS
Length: 15.591m
Wingspan: 7.154m
Height: 4.251m
Wing area: 23 square metres

WEIGHTS
Empty: 5,275kg
Normal take-off: 7,370kg
Max take-off: 9,100kg
Normal landing: 5,480kg
Fuel capacity: 2,080kg

PROPULSION
Powerplant: 1X Liyang WP-13F
Thrust (dry): 44.1kN (4,497kg, 9,914lb)
Thrust (afterburning): 65.17kN (6,645kg; 14,650lb)

PERFORMANCE
Max level speed: Mach 2.0 (high altitude)
Max climb rate: 180m/s (sea-level)
Service ceiling: 18,800m
Range (without refueling): Ferry range 1,740km (two AAMs and two 480 liter drop tanks);
or 2,230km (three 720 liter drop tanks)
Combat radius: (Loitering with two AAMs and three 720 liter drop tanks, at altitude 11,000m)
45 minutes flight and 5 minutes combat
(Long-range interception with two AAMs and three 720 liter drop tanks at speed of Mach 1.5)
650km
(Long-range interdiction with two 150kg bombs and three 720 liter drop tanks, hi-lo-hi) 600km
(Close air support with four rocket launchers, no drop tank, lo-lo-lo) 370km
In-flight refueling: No
G limit: +7G

ARMAMENT
Fixed weapon: J-7D: 2X Type 23-III (23mm), 100 rounds per gun
External hard-points: 5 (J-7D)
Air-to-air missiles: PL-2, PL-5, PL-7, PL-8, PL-9, Magic R550, AIM-9
Bomb: 250/500kg free-bomb
Other: 57/90/130mm unguided rocket launcher

AVIONICS
Flight control: WL-7 radio compass; 0101 HR A2 altitude radio altimeter; LTC-2 horizon gyro;
XS-6 marker beacon receiver; VOR; Distance Measure Equipment (DME); Instrument Landing
System (ILS)
Fire control: SM-3A optical sight (J-7); AFS-3A lead-computing sight with Type 222 ranging
radar input (J-7II); GEC-Marconi Type 956 HUD
Countermeasures: South-West China Research Institute of Electronic Equipment KG-8602
RWR interfaced with the South-West China Research Institute of Electronic Equipment KG-8605
internal radar noise jammer and China National Import and Export Corporation GT-1 chaff/flare
dispenser, and Type 602 'Odd Rods' IFF
