The T-50/Su-57 prototype first flew on January 29, 2010 and as of March 2018 there are 10
Su-57 prototypes and were renamed Felons that year. This is Russia’s first stealth aircraft and
was designed to cope with the F-22 and F-35. The Su-57 is made from extensive use of
composite material and radar absorbing material (RAM). The original AL-41F-1 engine is under
powered and will be replaced by an Izdelie 30 which is under development. The Felon has super
maneuverability, super-cruise, thrust-vectoring nozzles. Russia ordered 76 Su-57s.
Russia is in the process of developing UCAV (unmanned aerial combat vehicle) or RPA (remotely
piloted aircraft) the S-70 “охотник” or “Hunter”. In 2018 Bort 053 was selected to test
communications and team operations with the S-70. In 2019 Bort 053 received a new paint
scheme on the top and bottom that resembles the Hunter’s silhouette. Silhouettes of the Su-57
and the Hunter with a lightning bolt below were added to the vertical stabilizers. The lightning bolt
suggests some sort of electronic connection between the two aircraft.
Specifications
First Prototype Flight – 2010
Role – Stealth, Single-seat, Twin-engine, Multirole Fifth Generation Jet Fighter
Crew – 1
Dimensions
Length – 65 ft 11 in (20.1 m)
Wingspan – 46 ft 3 in (14.1 m)
Height – 15 ft 7 in (4.74 m)
Weight
Empty – 39,683 lb (18,000 kg)
Gross – 55,116 lb (25,000 kg)
Maximum Take-off – 77,162 lb (35,000 kg)
Powerplant
Used In Initial Production – 2 X Saturn AL-41F1 Turbofans with Thrust Vectoring
20,900 lbf (93.kN) Thrust Per Engine Dry / 33,100 lbf (147.2 nK) with Afterburner
Engine Under Development For Later Releases – 2 X izdeliye 30 Turbofans with Thrust Vectoring
24,300 lbf (107.9 kN) Thrust Each Dry / 39,700 lbf (176.6 nK) with Afterburner
Performance
Maximum Speed
Mach 2 (1,320 mph) (2,120 km/h) @ Altitude
Mach 1.6 (1,060 mph) (1,710 km/h) Supercruise @ Altitude
Range
2,200 mi (3,500 km) Subsonic / with 2 outboard fuel tanks 2,796 mi (4,500 km)
Supersonic – 930 mi (1,500 km)
Service ceiling – 66,000 ft (20,000 m)
Armament
Gun- 1 X 30mm Gryazev-Shipunov GSh-30-1 Autocannon
Hardpoints - 12 X 6 internal, 6 external
Missiles
Air-To-Air
4 X RVV-MD
2 X R-73
R-37M
Air-To-Surface
4 X Kh-35ME, Kh-59MK2
Anti-ship
2 X Kh-35E, 31
Anti-radiation
4 X Kh-58UShKE
Bombs
250, 500, 1,500 kg Guided Bombs
Anti-tank “Drill 500 kg Cluster Bombs + Active Homing

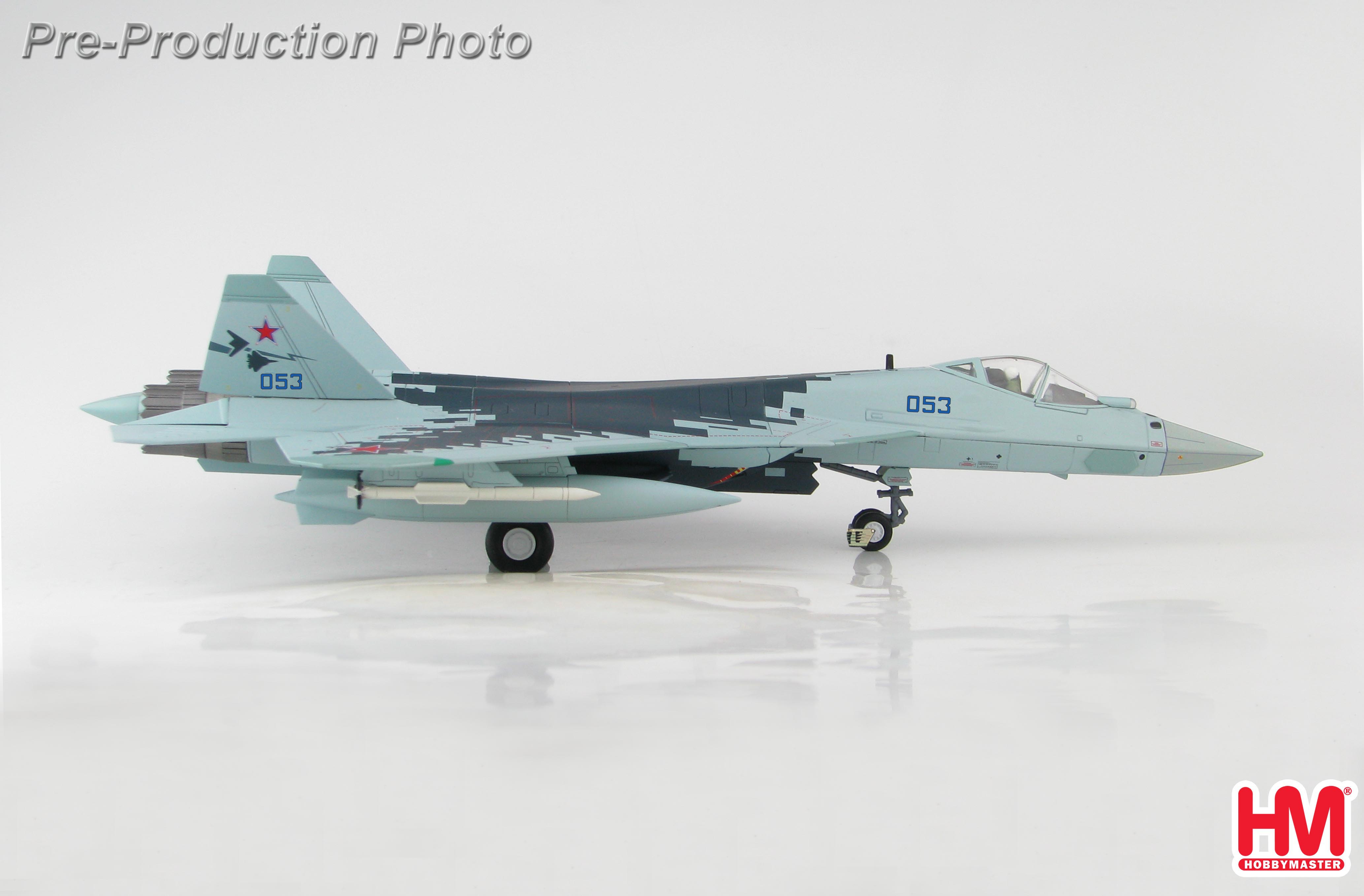

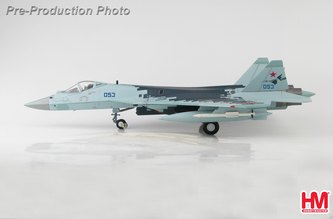

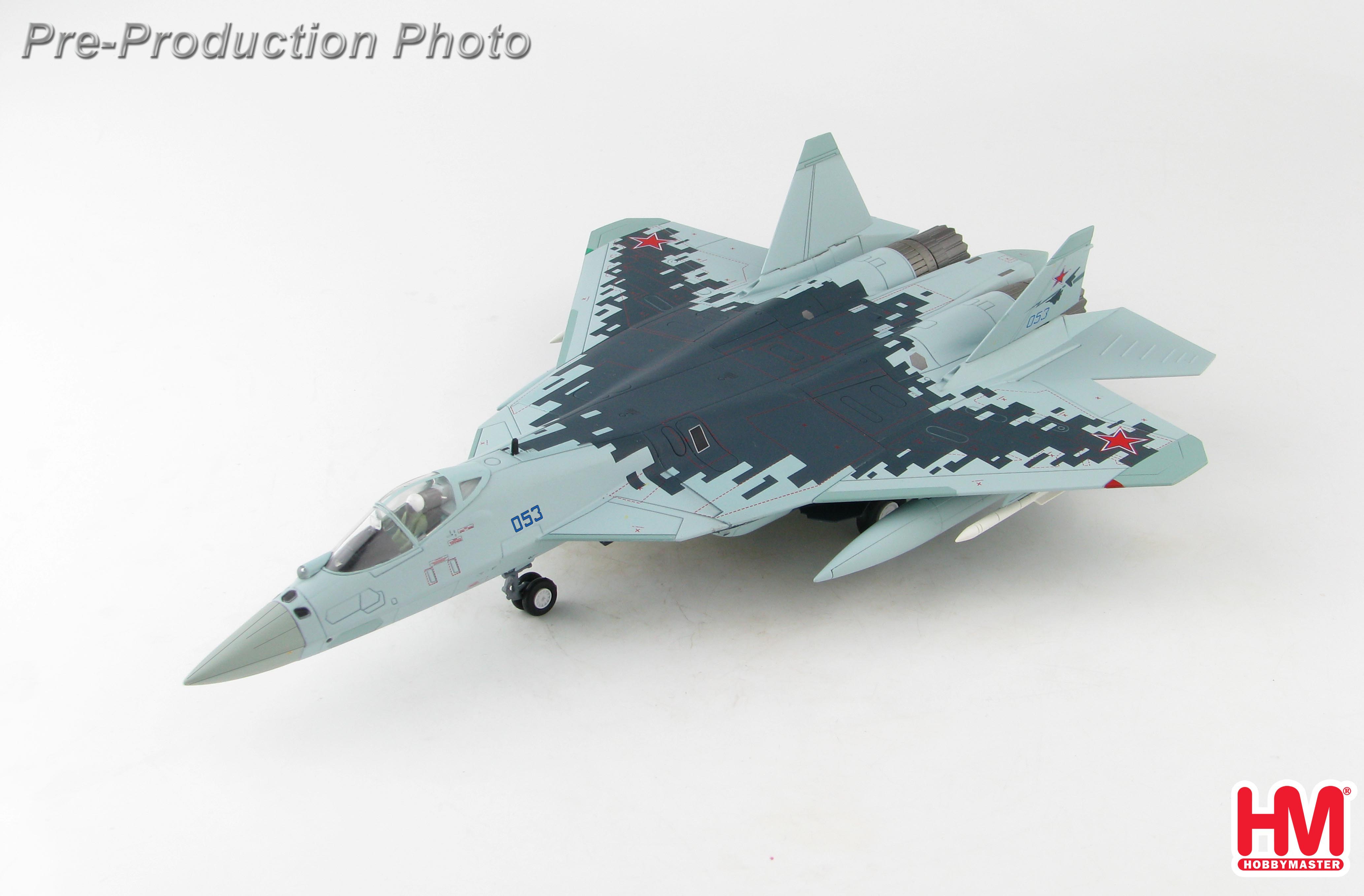

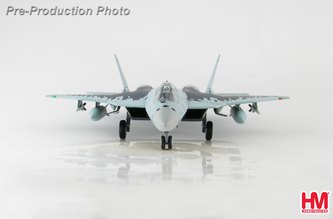

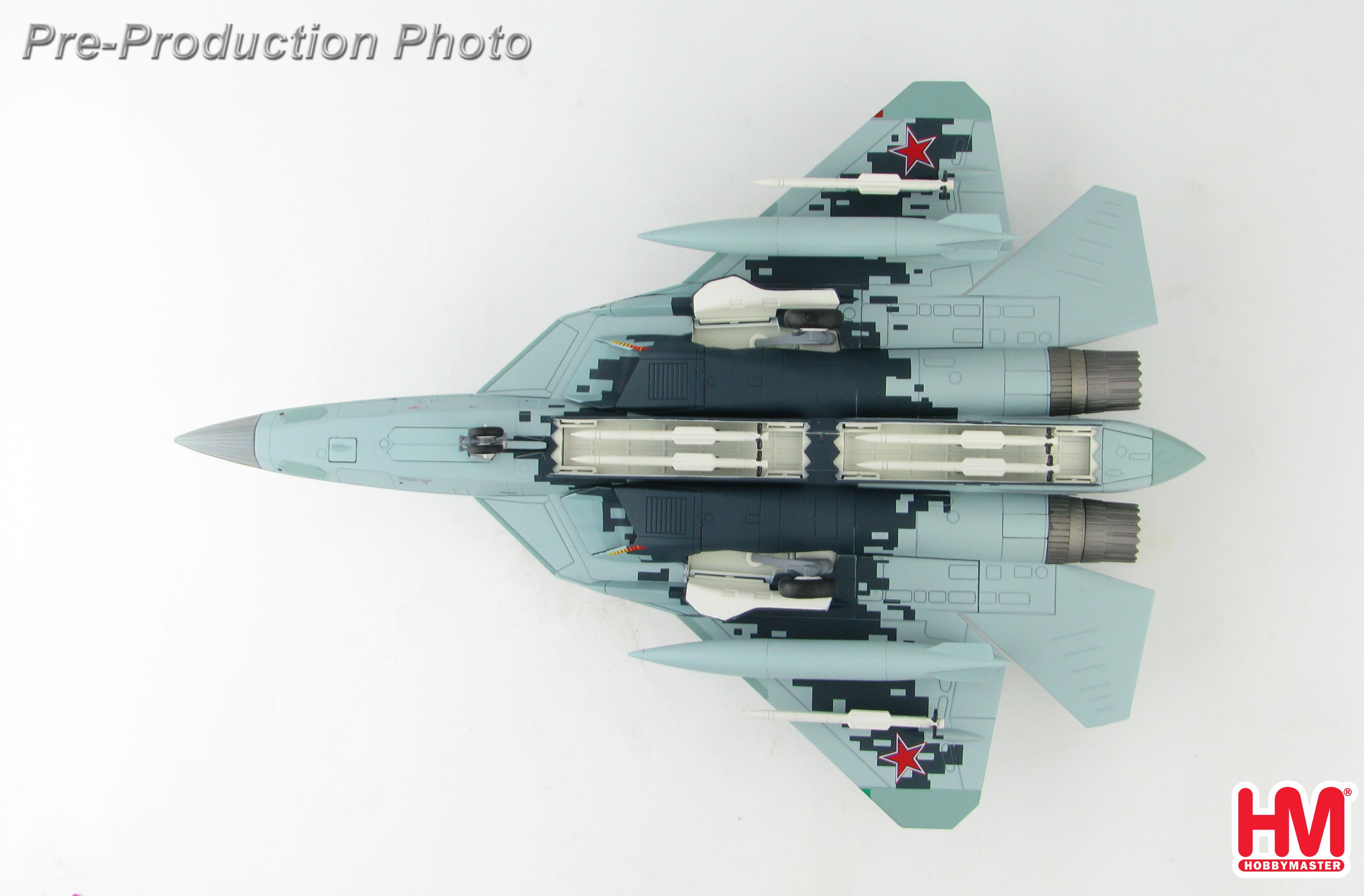

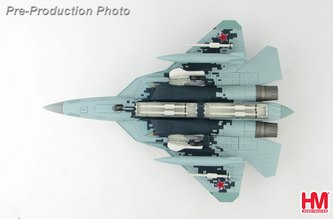

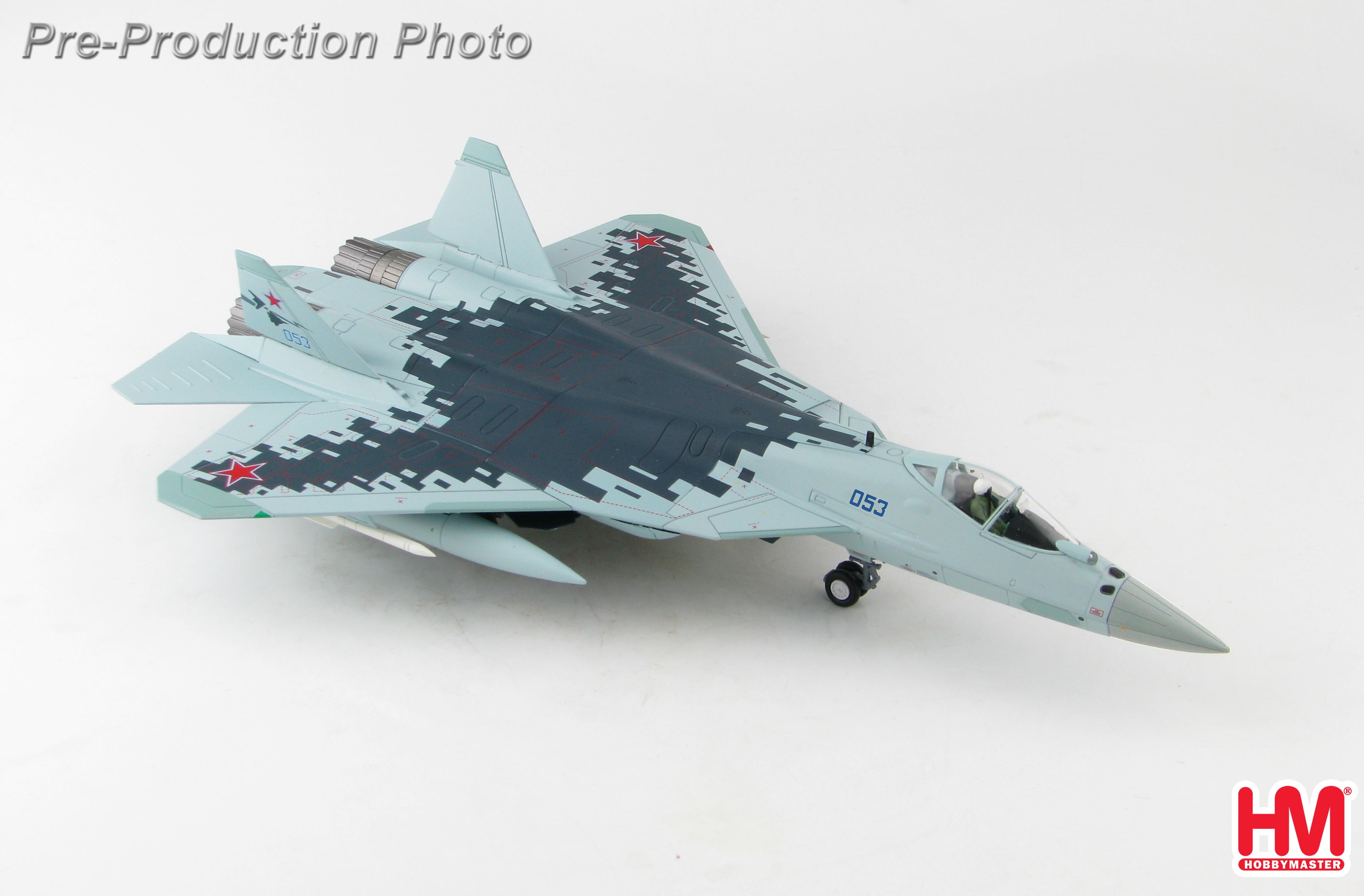

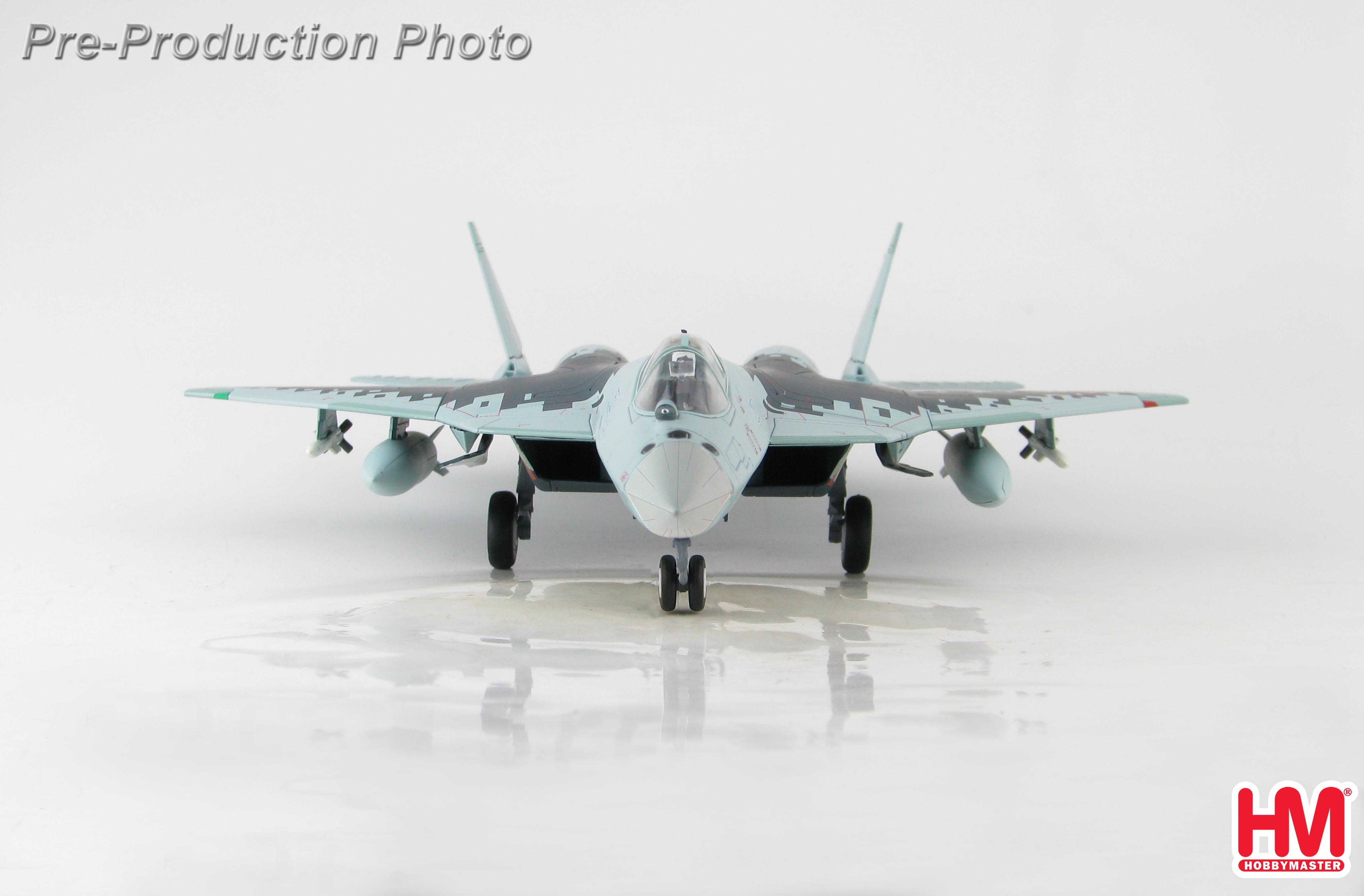

Hobby Master 1/72 Air Power Series
HA6801

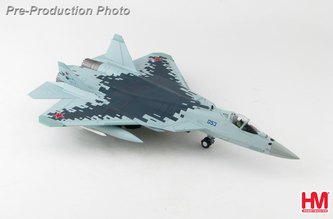

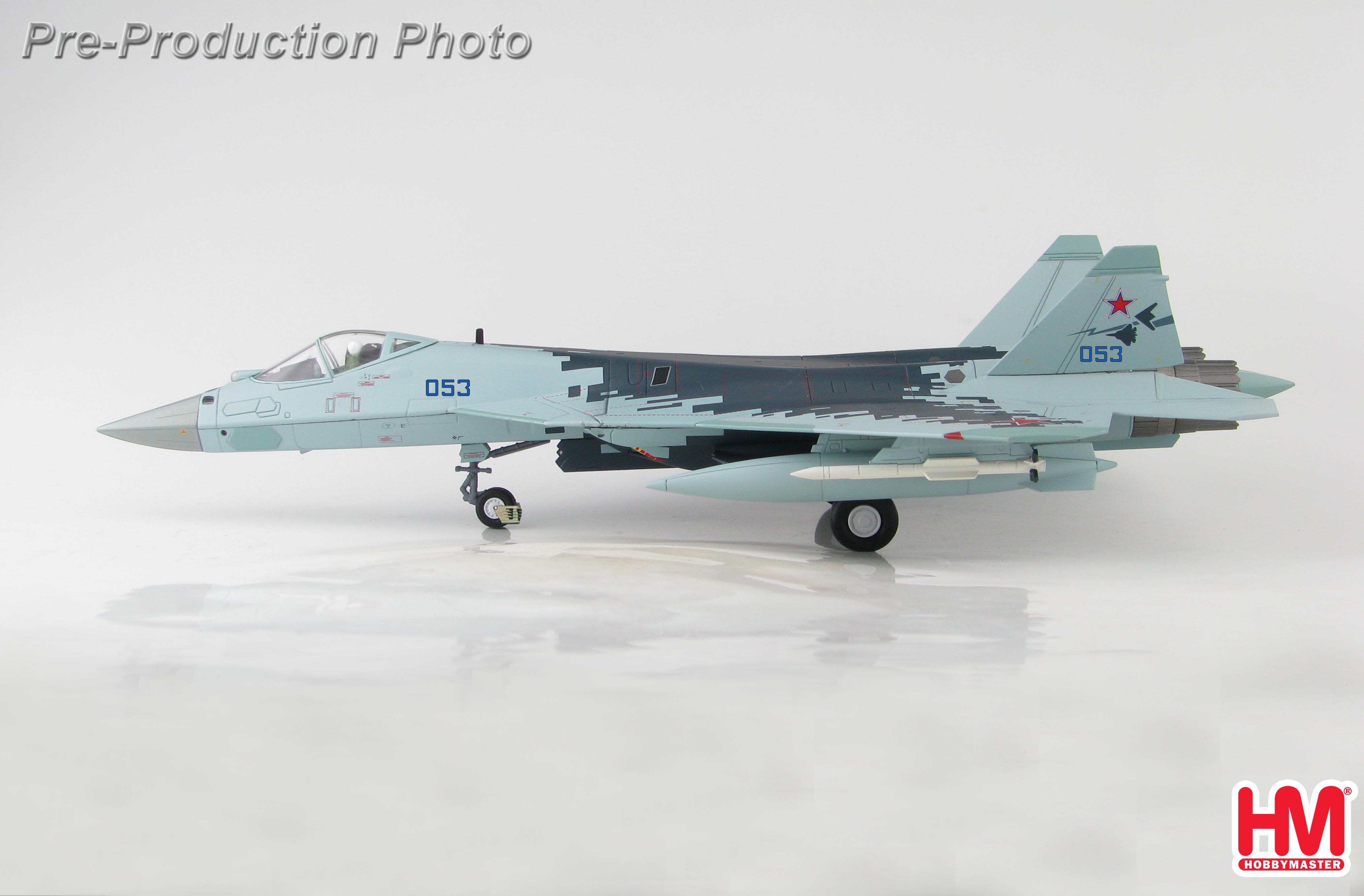

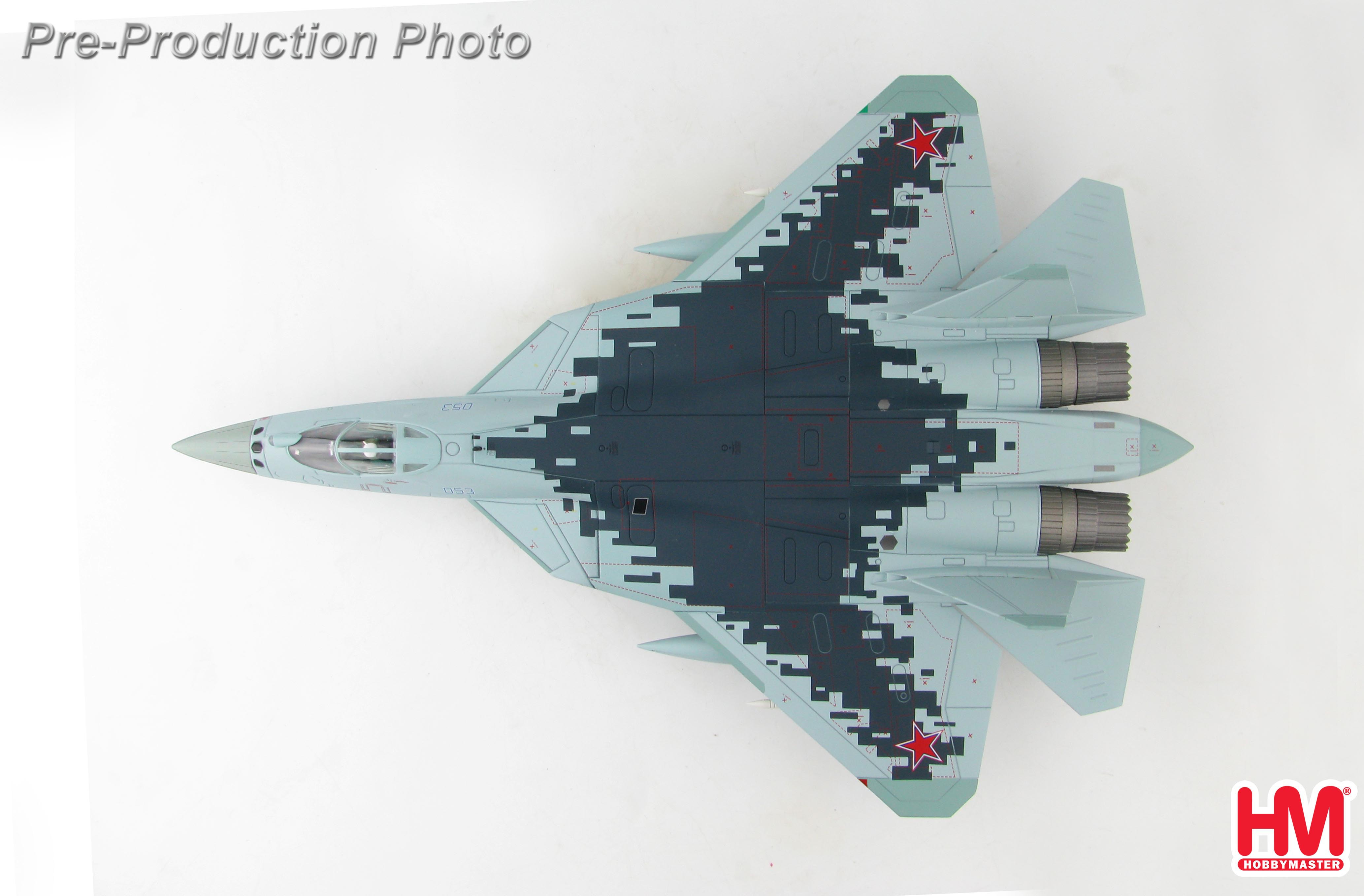

Su-57 "Felon" Stealth Fighter
Bort 053, Russian Air Force, March 2019
|
True 1/72 scale.
Professionally painted.
Great attention to detail.
All markings are Tampoed (pad applied).
Option to display the model on a stand that is provided.
Model can be shown with the landing gear in the down or up positions.
Loads of optional armament provided.
Canopy can be displayed open or closed.
Pilot figures included.
Extremely heavy metal with a minimum of plastic.
Highly collectable.
Weapon Load
internal weapon bays : 4 x R77
underwings : 2 x R73; 2 x R77
|
